AT-73
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - TRANSMISSION CASE

TRANSMISSION CASE
TRANSMISSION CASE INSPECTION
ATOEL-03

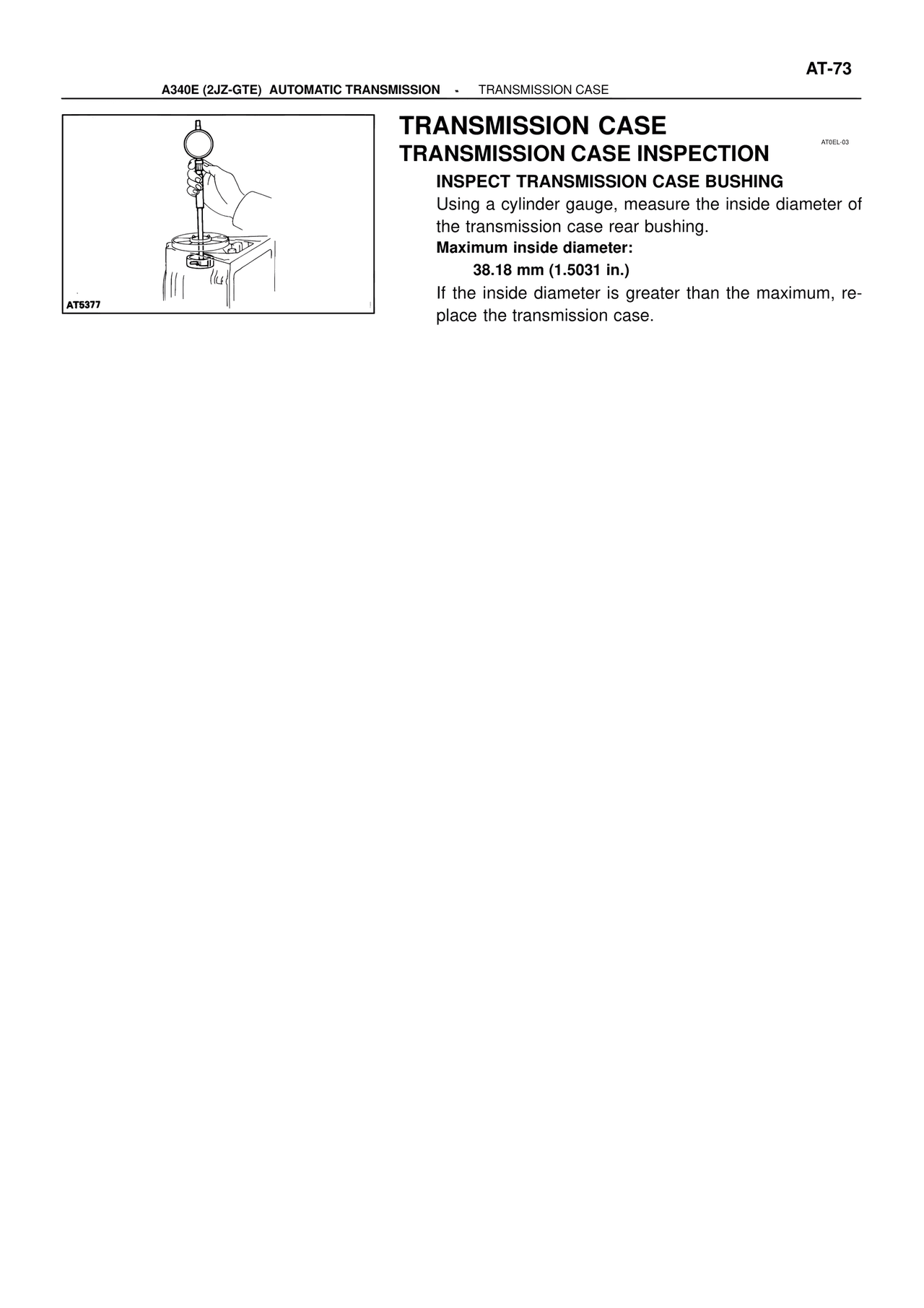

INSPECT TRANSMISSION CASE BUSHING
Using a cylinder gauge, measure the inside diameter of
the transmission case rear bushing.
Maximum inside diameter:
38.18 mm (1.5031 in.)
If the inside diameter is greater than the maximum, re-
place the transmission case.

AT5377
