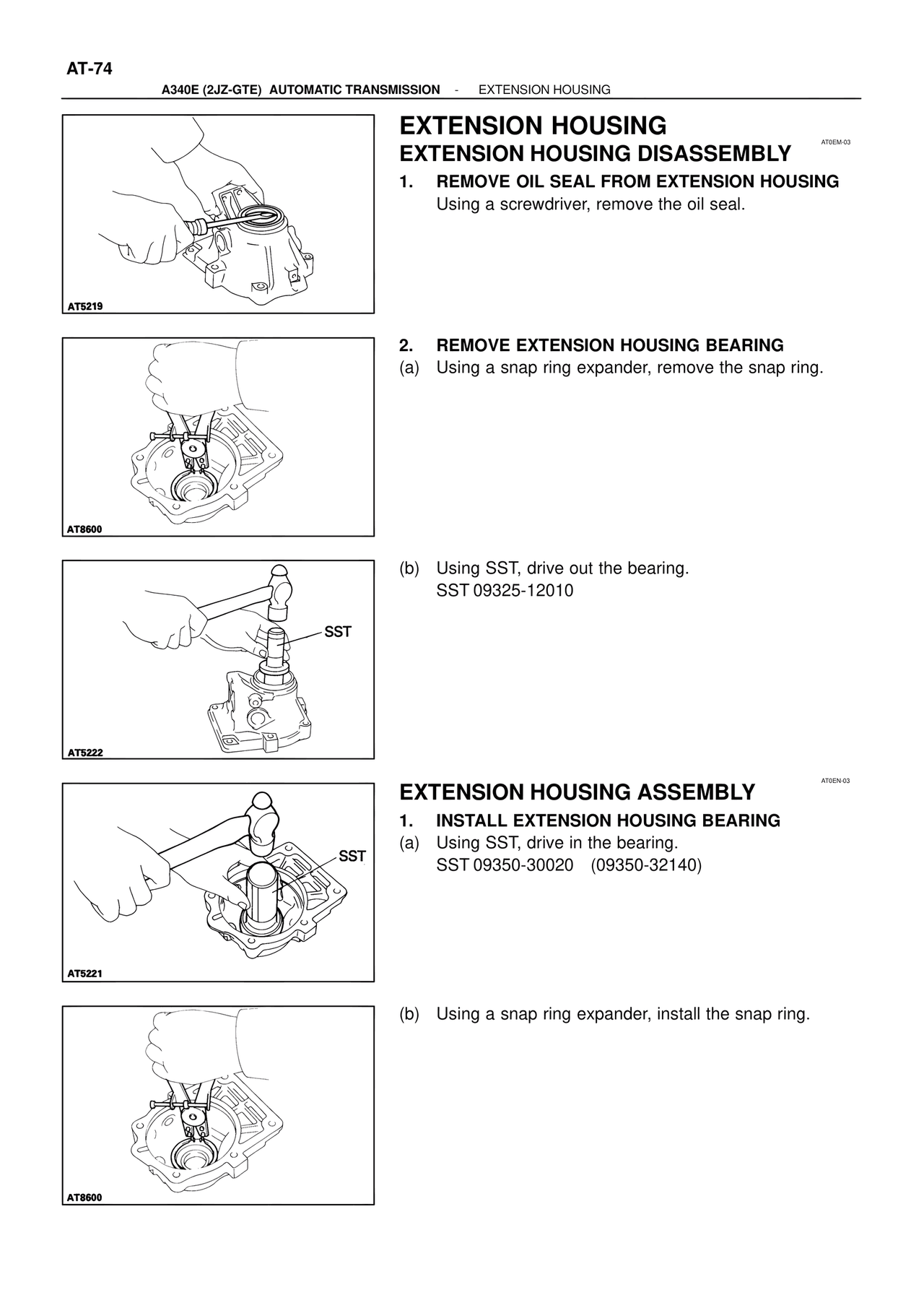

AT-74
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - EXTENSION HOUSING
EXTENSION HOUSING
EXTENSION HOUSING DISASSEMBLY
AT0EM-03
1. REMOVE OIL SEAL FROM EXTENSION HOUSING
Using a screwdriver, remove the oil seal.
AT5219
2. REMOVE EXTENSION HOUSING BEARING
(a) Using a snap ring expander, remove the snap ring.
AT8600
(b) Using SST, drive out the bearing.
SST 09325-12010
SST
AT5222
EXTENSION HOUSING ASSEMBLY
AT0EN-03
1. INSTALL EXTENSION HOUSING BEARING
(a) Using SST, drive in the bearing.
SST 09350-30020 (09350-32140)
SST
AT5221
(b) Using a snap ring expander, install the snap ring.
AT8600
