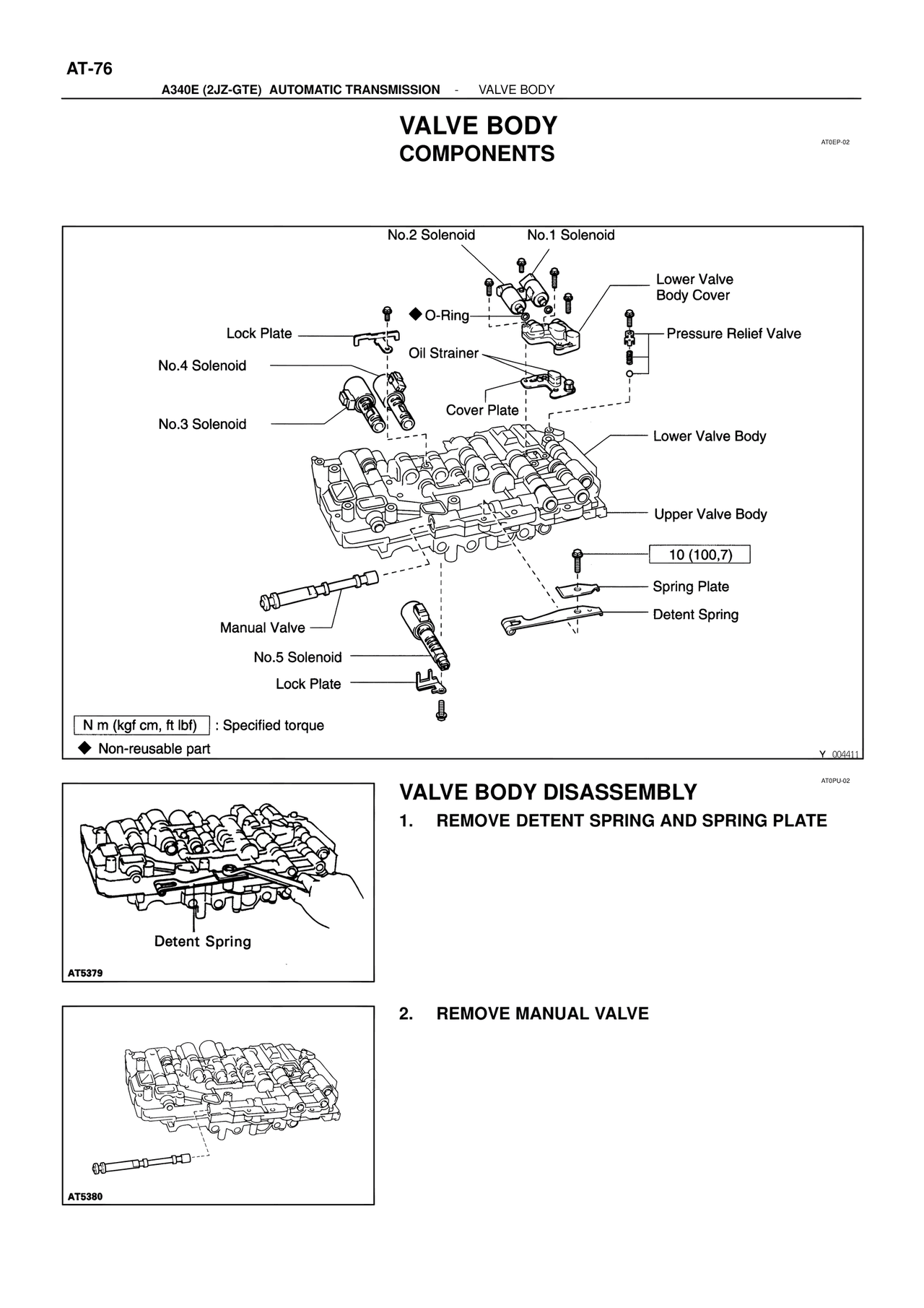

AT-76
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - VALVE BODY
VALVE BODY
COMPONENTS
AT0EP-02
No.2 Solenoid No.1 Solenoid
Lower Valve
Body Cover
Lock Plate
◆ O-Ring
Pressure Relief Valve
Oil Strainer
No.4 Solenoid
Cover Plate
No.3 Solenoid
Lower Valve Body
Upper Valve Body
10 (100,7)
Spring Plate
Detent Spring
Manual Valve
No.5 Solenoid
Lock Plate
N m (kgf cm, ft lbf) : Specified torque
◆ Non-reusable part
Y 004411
AT0PU-02
VALVE BODY DISASSEMBLY
1. REMOVE DETENT SPRING AND SPRING PLATE
Detent Spring
AT5379
2. REMOVE MANUAL VALVE
AT5380
