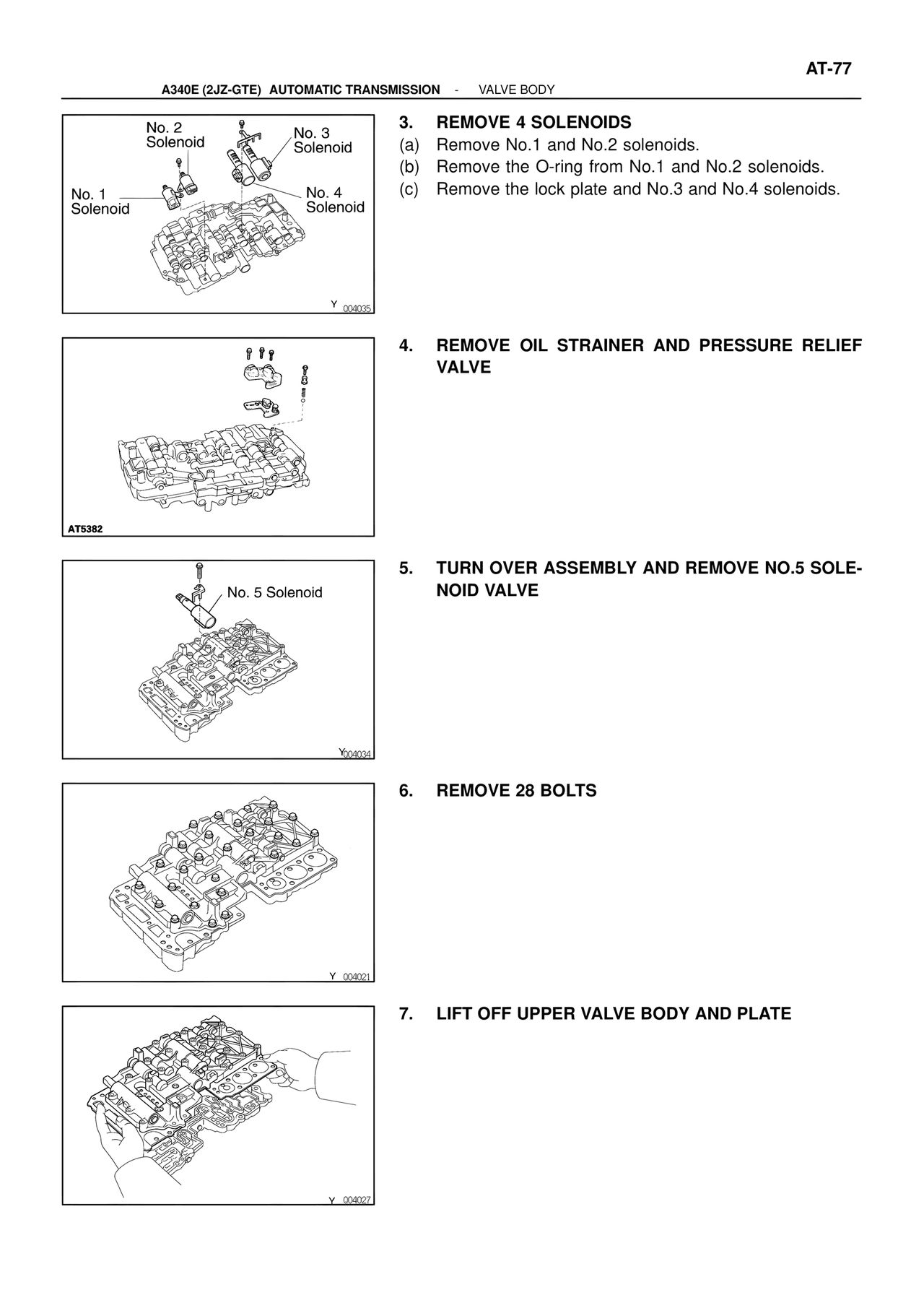

AT-77
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - VALVE BODY
No. 2
Solenoid
No. 3
Solenoid
No. 1
Solenoid
No. 4
Solenoid
Y 004035
3. REMOVE 4 SOLENOIDS
(a) Remove No.1 and No.2 solenoids.
(b) Remove the O-ring from No.1 and No.2 solenoids.
(c) Remove the lock plate and No.3 and No.4 solenoids.
AT5382
4. REMOVE OIL STRAINER AND PRESSURE RELIEF VALVE
No. 5 Solenoid
Y004034
5. TURN OVER ASSEMBLY AND REMOVE NO.5 SOLENOID VALVE
Y 004021
6. REMOVE 28 BOLTS
Y 004027
7. LIFT OFF UPPER VALVE BODY AND PLATE
