A340E (2JZ-GTE)  AUTOMATIC TRANSMISSION  -  UPPER VALVE BODY

AT0ET-04

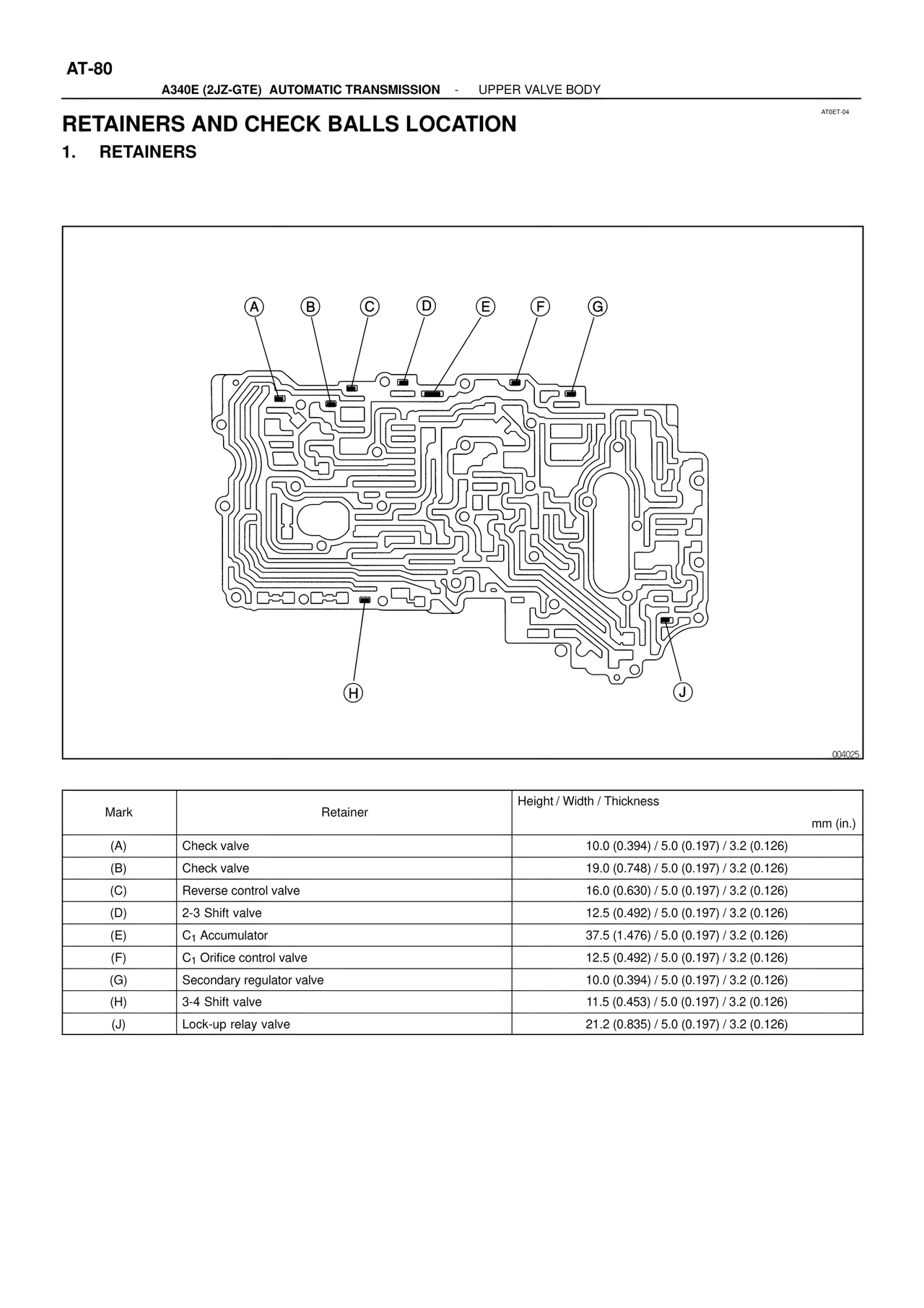

RETAINERS AND CHECK BALLS LOCATION

1.    RETAINERS

A    B    C    D    E    F    G

H                                                J

004025

Mark          Retainer                                    Height / Width / Thickness
                                                                                    mm (in.)

(A)            Check valve                              10.0 (0.394) / 5.0 (0.197) / 3.2 (0.126)
(B)            Check valve                              19.0 (0.748) / 5.0 (0.197) / 3.2 (0.126)
(C)            Reverse control valve              16.0 (0.630) / 5.0 (0.197) / 3.2 (0.126)
(D)            2-3 Shift valve                          12.5 (0.492) / 5.0 (0.197) / 3.2 (0.126)
(E)            C1 Accumulator                        37.5 (1.476) / 5.0 (0.197) / 3.2 (0.126)
(F)            C1 Orifice control valve            12.5 (0.492) / 5.0 (0.197) / 3.2 (0.126)
(G)            Secondary regulator valve      10.0 (0.394) / 5.0 (0.197) / 3.2 (0.126)
(H)            3-4 Shift valve                          11.5 (0.453) / 5.0 (0.197) / 3.2 (0.126)
(J)             Lock-up relay valve                  21.2 (0.835) / 5.0 (0.197) / 3.2 (0.126)
