AT-81

A340E (2JZ-GTE)  AUTOMATIC TRANSMISSION  -  UPPER VALVE BODY

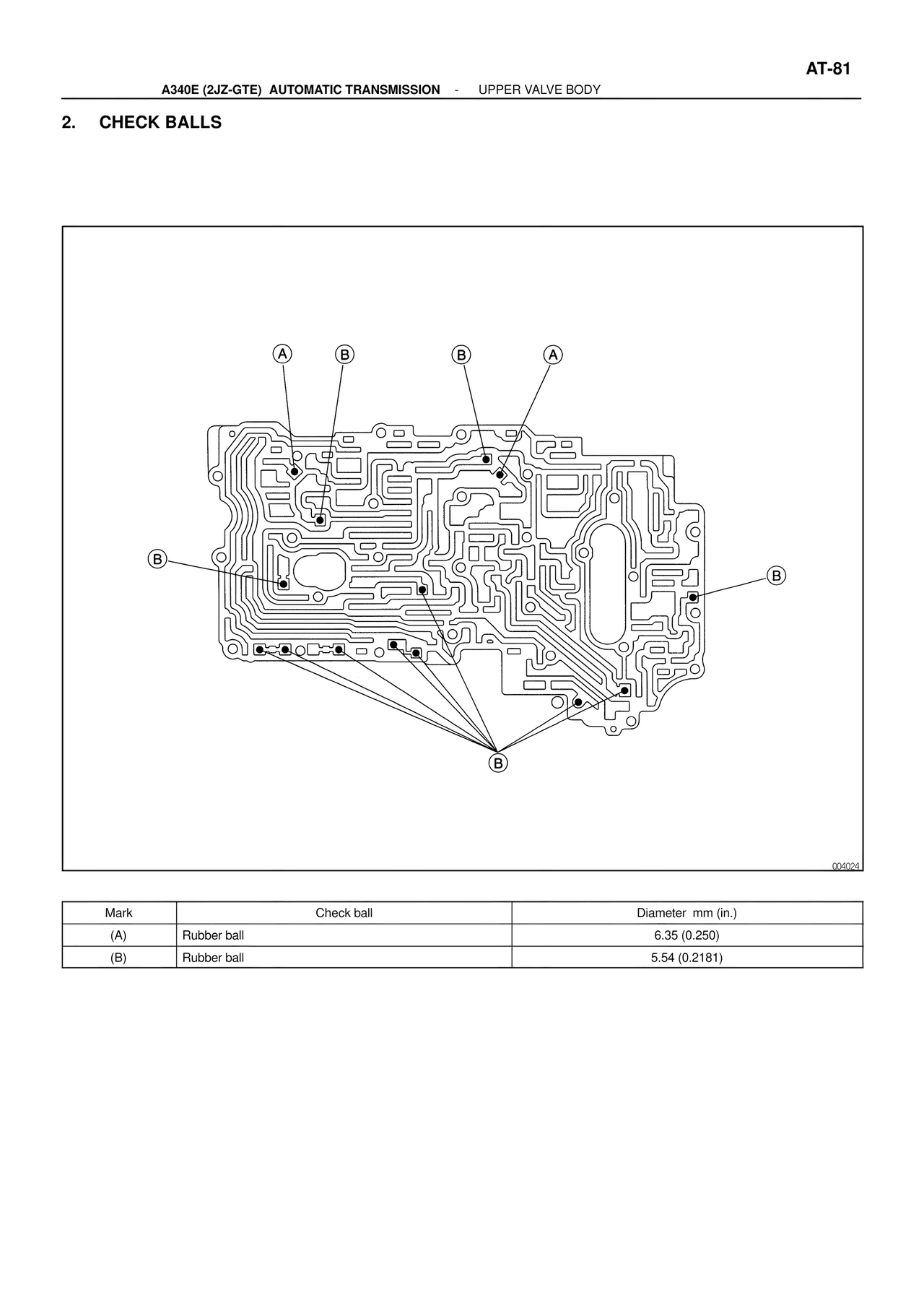

2.  CHECK BALLS

A    B    B    A

B

B

B

004024

Mark          Check ball          Diameter  mm (in.)
(A)           Rubber ball         6.35 (0.250)
(B)           Rubber ball         5.54 (0.2181)
