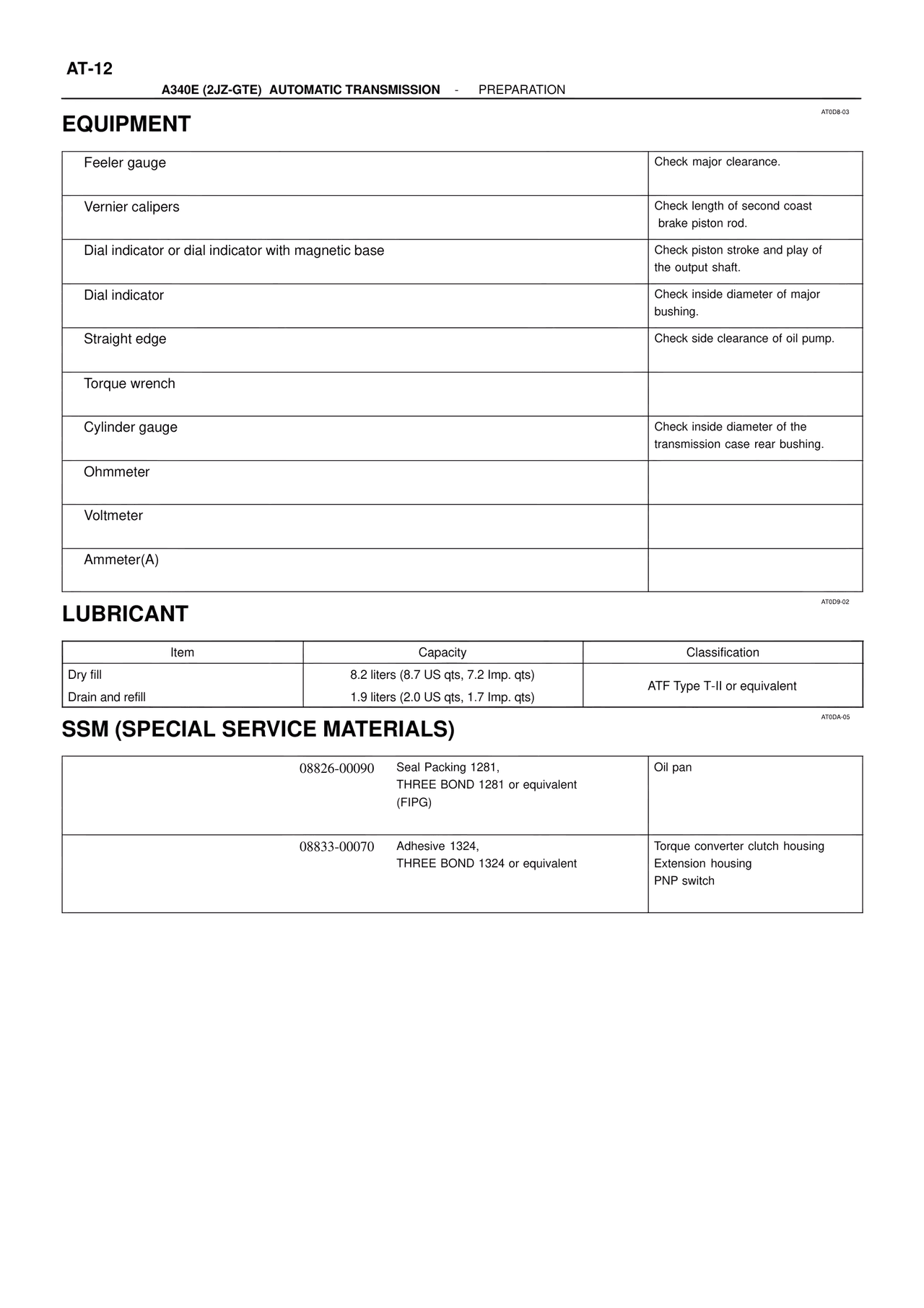

AT-12
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - PREPARATION
EQUIPMENT
AT0D8-03
Feeler gauge Check major clearance.
Vernier calipers Check length of second coast
brake piston rod.
Dial indicator or dial indicator with magnetic base Check piston stroke and play of
the output shaft.
Dial indicator Check inside diameter of major
bushing.
Straight edge Check side clearance of oil pump.
Torque wrench
Cylinder gauge Check inside diameter of the
transmission case rear bushing.
Ohmmeter
Voltmeter
Ammeter(A)
LUBRICANT
AT0D9-02
Item Capacity Classification
Dry fill 8.2 liters (8.7 US qts, 7.2 Imp. qts) ATF Type T-II or equivalent
Drain and refill 1.9 liters (2.0 US qts, 1.7 Imp. qts)
SSM (SPECIAL SERVICE MATERIALS)
AT0DA-05
08826-00090 Seal Packing 1281, Oil pan
THREE BOND 1281 or equivalent
(FIPG)
08833-00070 Adhesive 1324, Torque converter clutch housing
THREE BOND 1324 or equivalent Extension housing
PNP switch
