AT-13

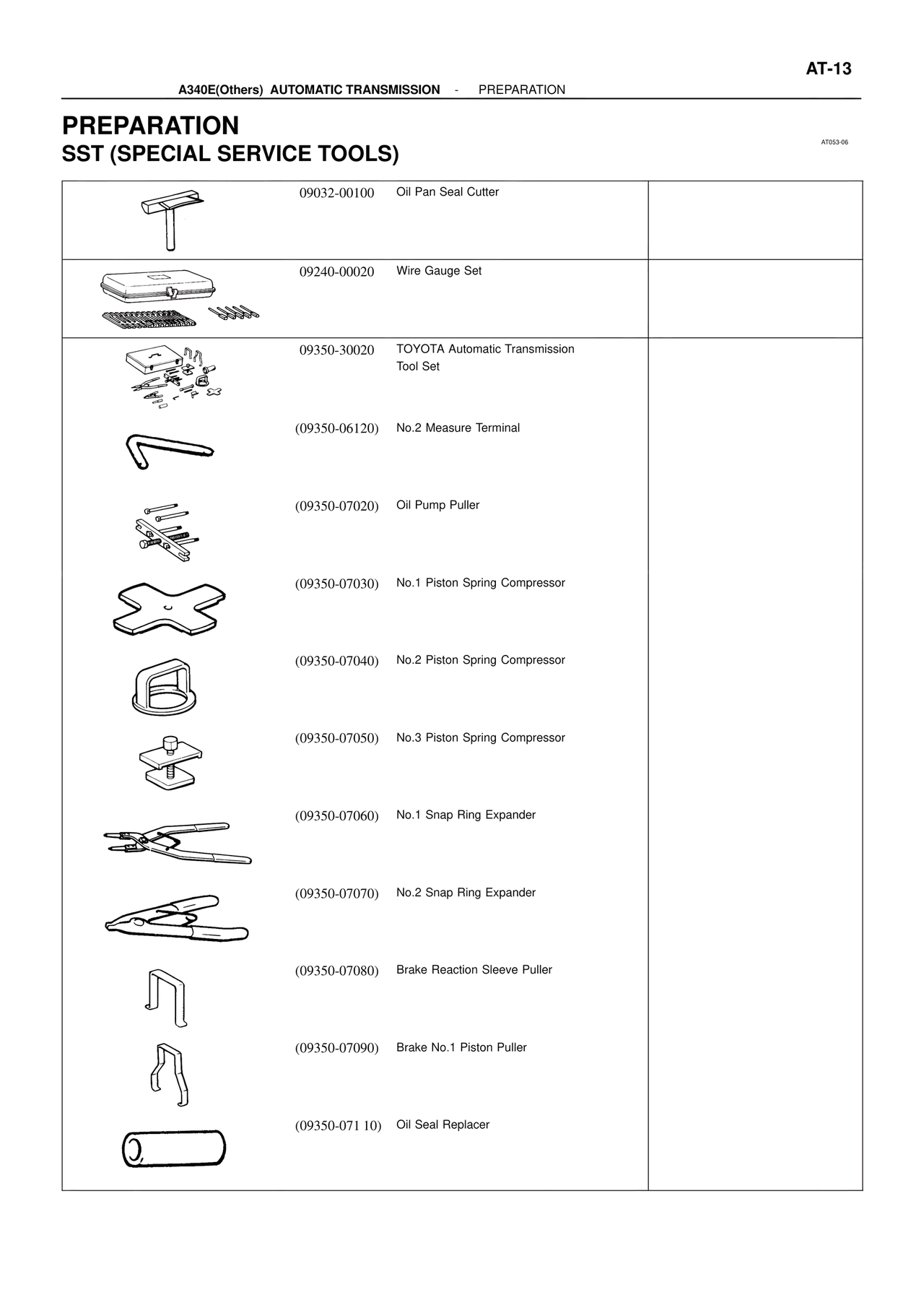

A340E(Others) AUTOMATIC TRANSMISSION - PREPARATION

PREPARATION
SST (SPECIAL SERVICE TOOLS)

AT053-06

09032-00100    Oil Pan Seal Cutter

09240-00020    Wire Gauge Set

09350-30020    TOYOTA Automatic Transmission
               Tool Set

(09350-06120)  No.2 Measure Terminal

(09350-07020)  Oil Pump Puller

(09350-07030)  No.1 Piston Spring Compressor

(09350-07040)  No.2 Piston Spring Compressor

(09350-07050)  No.3 Piston Spring Compressor

(09350-07060)  No.1 Snap Ring Expander

(09350-07070)  No.2 Snap Ring Expander

(09350-07080)  Brake Reaction Sleeve Puller

(09350-07090)  Brake No.1 Piston Puller

(09350-071 10) Oil Seal Replacer
