AT-86

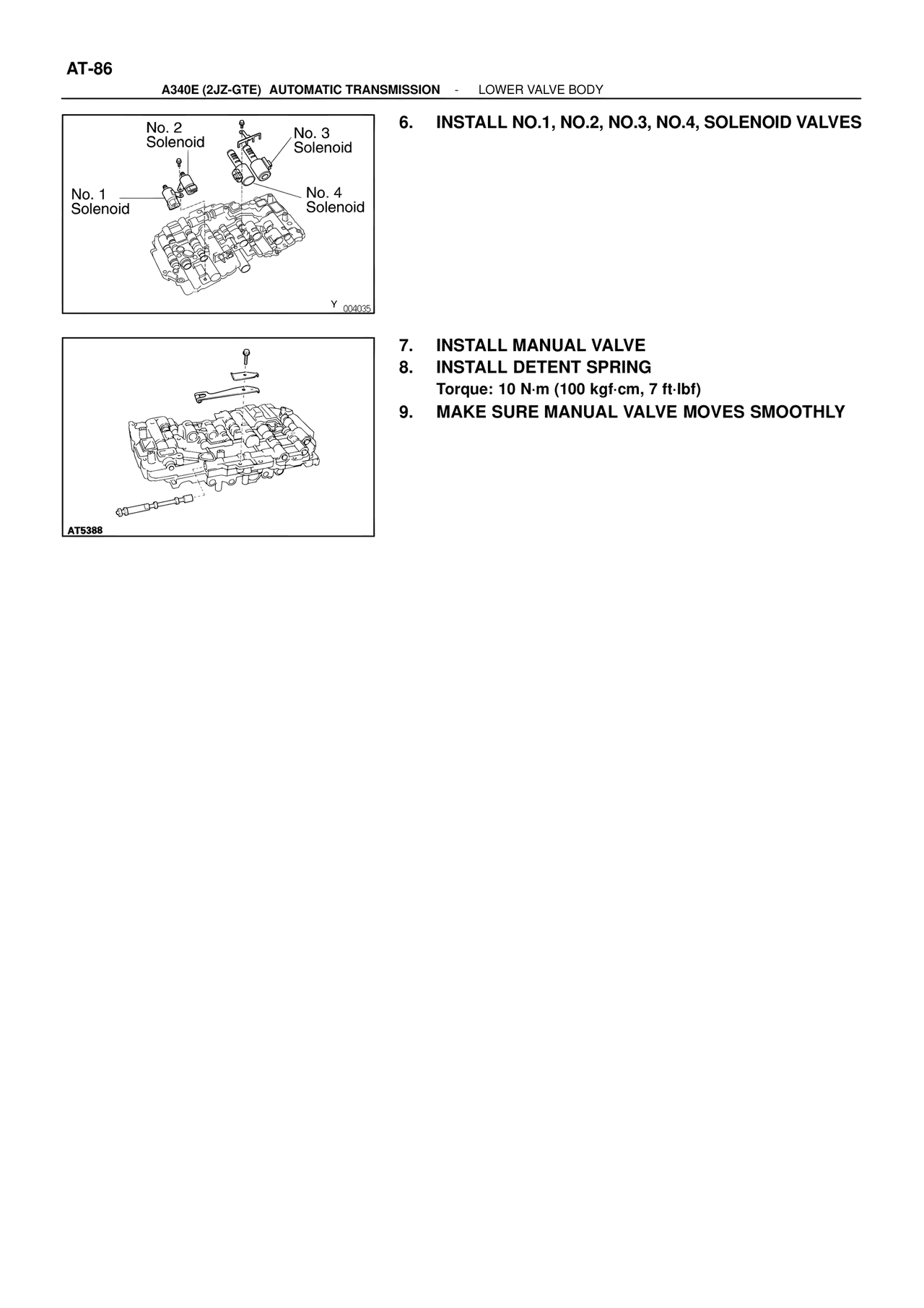

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - LOWER VALVE BODY
No. 2
Solenoid
No. 3
Solenoid
No. 1
Solenoid
No. 4
Solenoid
Y 004035
6. INSTALL NO.1, NO.2, NO.3, NO.4, SOLENOID VALVES
AT5388
7. INSTALL MANUAL VALVE
8. INSTALL DETENT SPRING
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
9. MAKE SURE MANUAL VALVE MOVES SMOOTHLY
