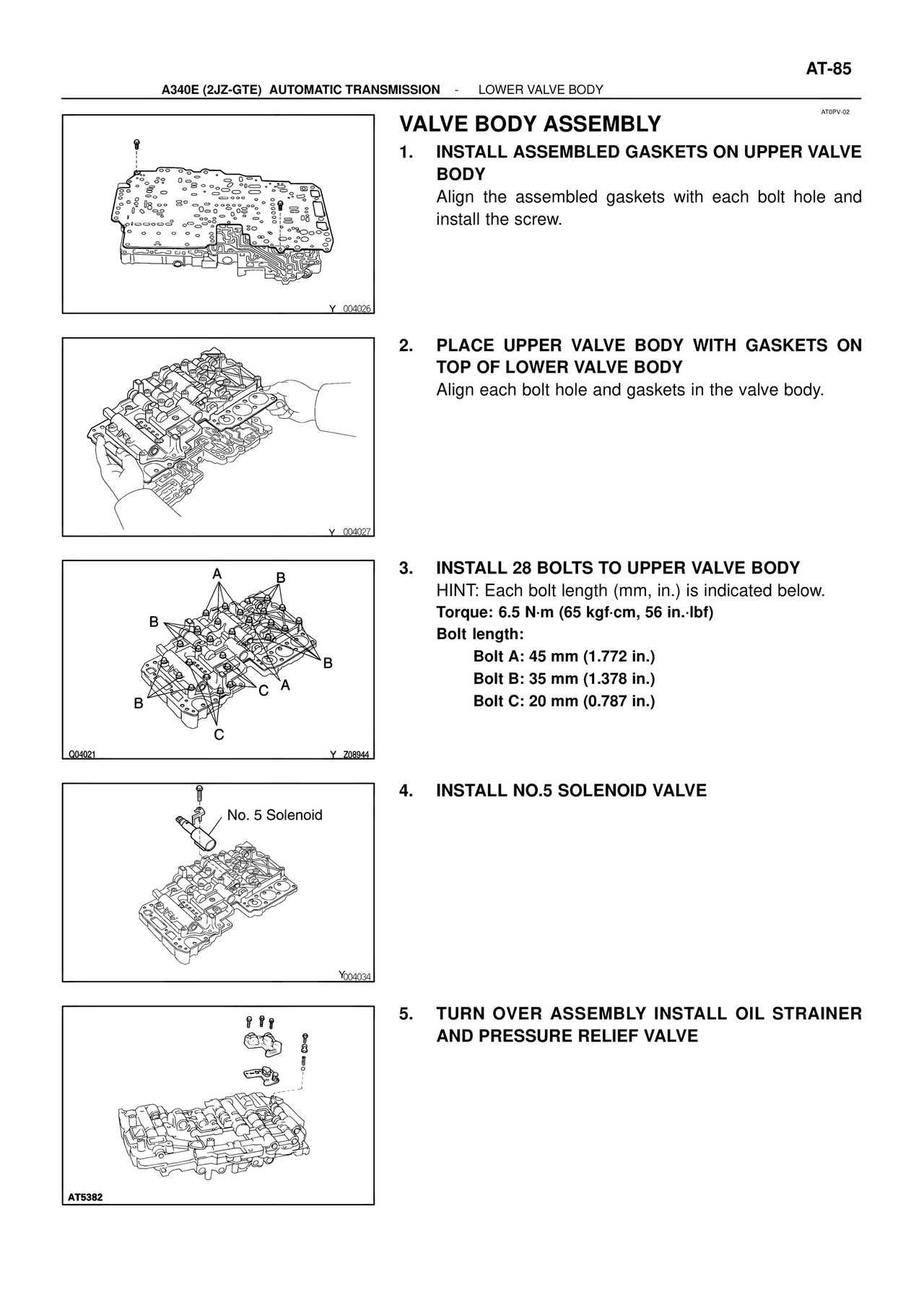

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - LOWER VALVE BODY
AT0PV-02

VALVE BODY ASSEMBLY

1. INSTALL ASSEMBLED GASKETS ON UPPER VALVE BODY
Align the assembled gaskets with each bolt hole and install the screw.

Y_004026

2. PLACE UPPER VALVE BODY WITH GASKETS ON TOP OF LOWER VALVE BODY
Align each bolt hole and gaskets in the valve body.

Y_004027

3. INSTALL 28 BOLTS TO UPPER VALVE BODY
HINT: Each bolt length (mm, in.) is indicated below.
Torque: 6.5 N·m (65 kgf·cm, 56 in.·lbf)
Bolt length:
    Bolt A: 45 mm (1.772 in.)
    Bolt B: 35 mm (1.378 in.)
    Bolt C: 20 mm (0.787 in.)

A
B
B
B
A
C
B
C
Q04021
Y_Z08944

4. INSTALL NO.5 SOLENOID VALVE

No. 5 Solenoid

Y004034

5. TURN OVER ASSEMBLY INSTALL OIL STRAINER AND PRESSURE RELIEF VALVE

AT5382
