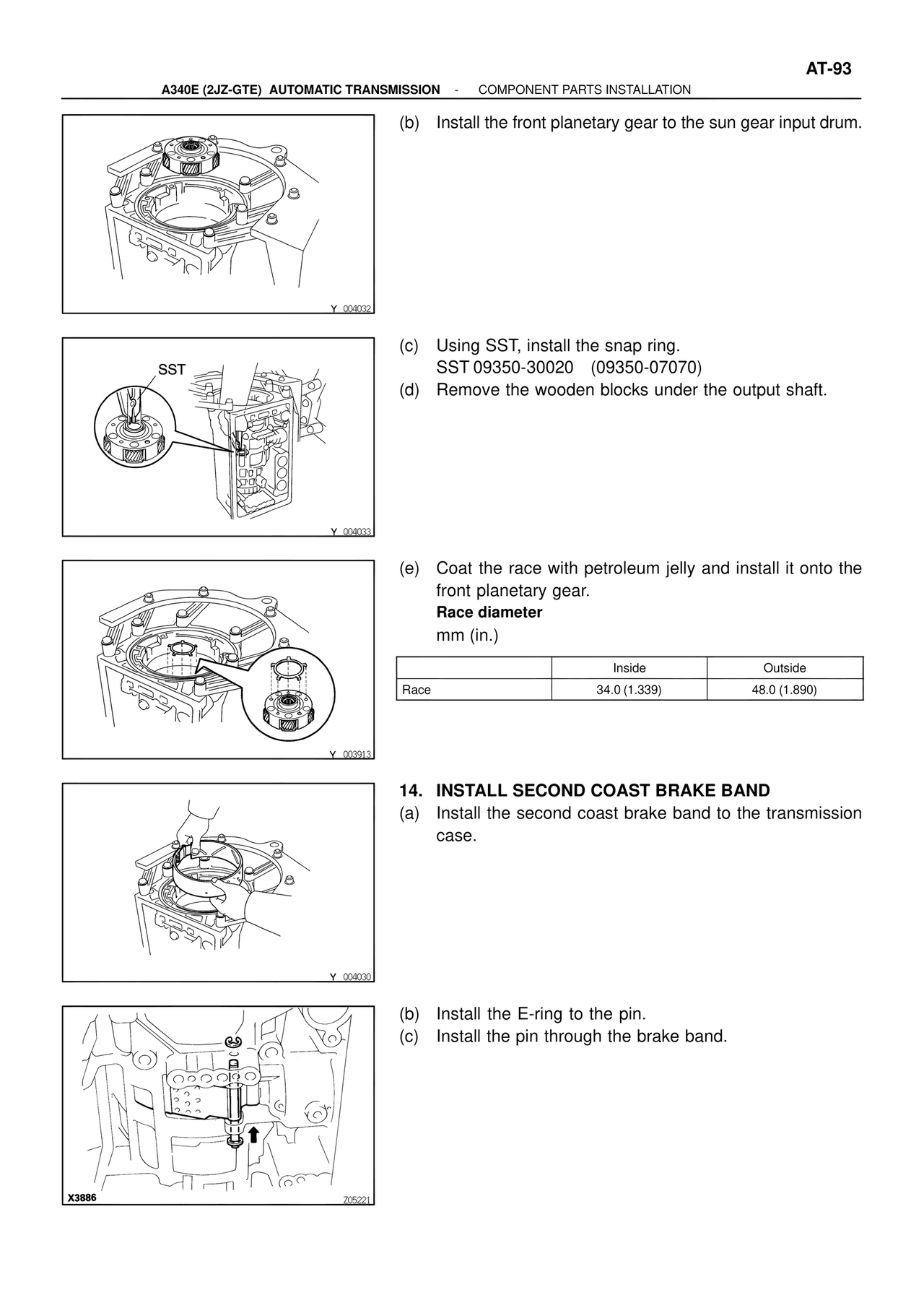

AT-93

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

(b) Install the front planetary gear to the sun gear input drum.

SST

(c) Using SST, install the snap ring.
SST 09350-30020 (09350-07070)
(d) Remove the wooden blocks under the output shaft.

(e) Coat the race with petroleum jelly and install it onto the
front planetary gear.
Race diameter
mm (in.)

         Inside          Outside
Race     34.0 (1.339)    48.0 (1.890)

14. INSTALL SECOND COAST BRAKE BAND
(a) Install the second coast brake band to the transmission
case.

(b) Install the E-ring to the pin.
(c) Install the pin through the brake band.

X3886
