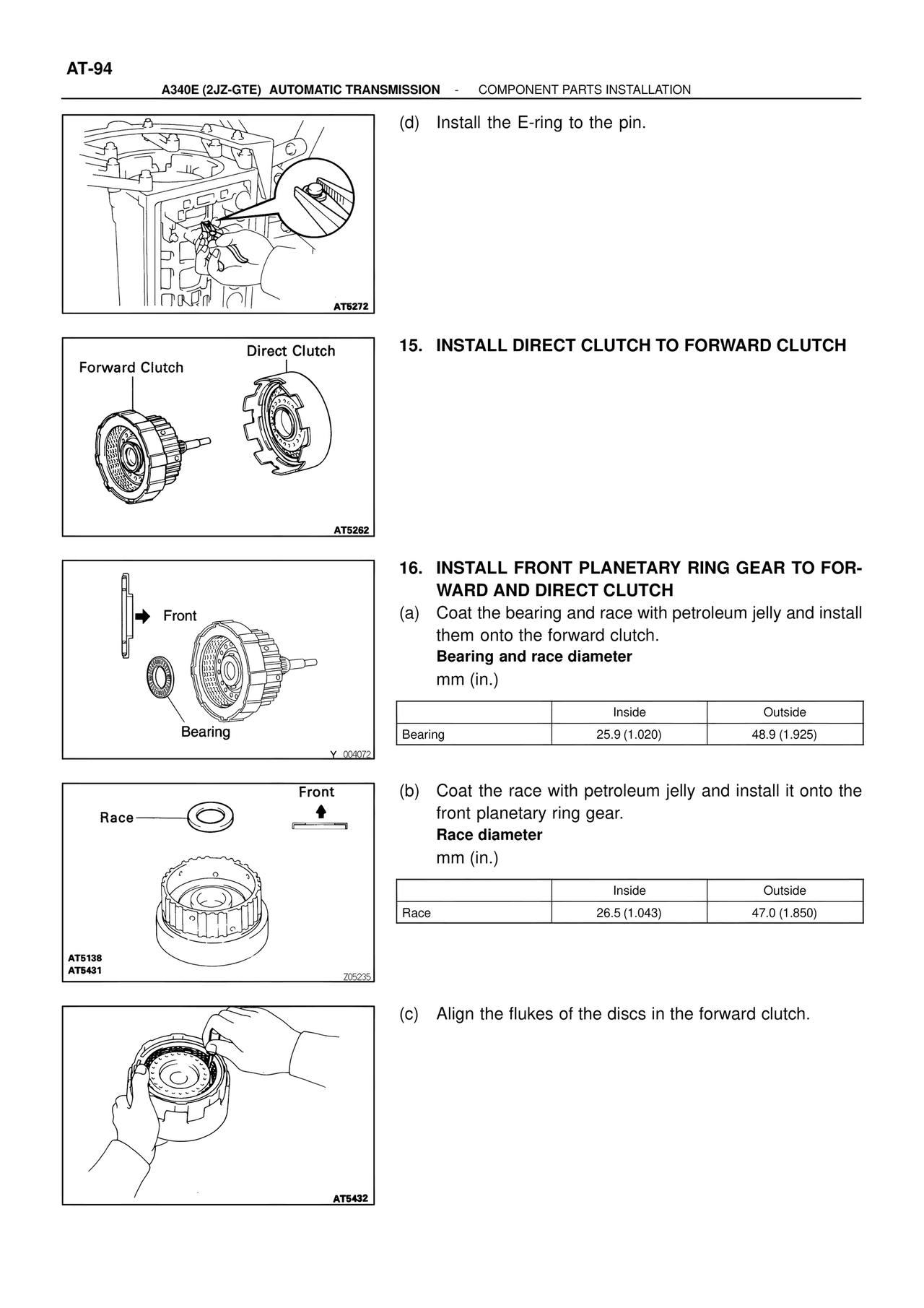

AT-94
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

AT5272

(d) Install the E-ring to the pin.

Forward Clutch          Direct Clutch

AT5262

15. INSTALL DIRECT CLUTCH TO FORWARD CLUTCH

Front

Bearing

Y_004072

16. INSTALL FRONT PLANETARY RING GEAR TO FOR-
WARD AND DIRECT CLUTCH
(a) Coat the bearing and race with petroleum jelly and install
them onto the forward clutch.
Bearing and race diameter
mm (in.)

                Inside          Outside
Bearing     25.9 (1.020)    48.9 (1.925)

Race

Front

AT5138
AT5431
705235

(b) Coat the race with petroleum jelly and install it onto the
front planetary ring gear.
Race diameter
mm (in.)

                Inside          Outside
Race        26.5 (1.043)    47.0 (1.850)

AT5432

(c) Align the flukes of the discs in the forward clutch.
