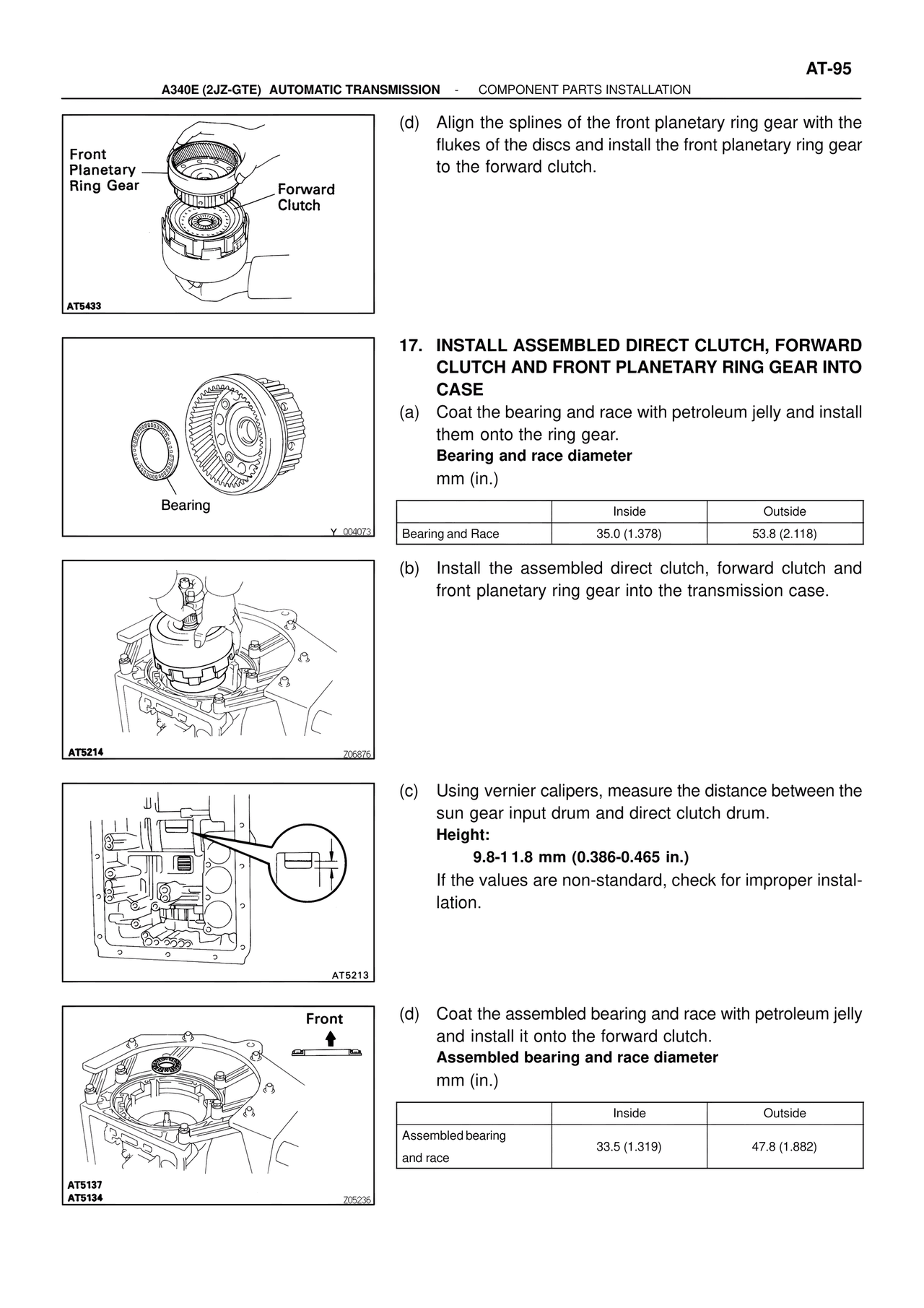

ATR/ATM Unit Repair — Install Assembled Direct Clutch, Forward Clutch and Front Planetary Ring Gear Into Case, page 132

AT-95

A340E (2JZ-GTE)  AUTOMATIC TRANSMISSION  -  COMPONENT PARTS INSTALLATION

Front
Planetary
Ring Gear
Forward
Clutch

AT5433

(d)  Align the splines of the front planetary ring gear with the
flukes of the discs and install the front planetary ring gear
to the forward clutch.

Bearing

Y 004073

17.  INSTALL ASSEMBLED DIRECT CLUTCH, FORWARD
CLUTCH AND FRONT PLANETARY RING GEAR INTO
CASE
(a)  Coat the bearing and race with petroleum jelly and install
them onto the ring gear.
Bearing and race diameter
mm (in.)

Inside          Outside
Bearing and Race     35.0 (1.378)     53.8 (2.118)

(b)  Install the assembled direct clutch, forward clutch and
front planetary ring gear into the transmission case.

AT5214                    Z06875

(c)  Using vernier calipers, measure the distance between the
sun gear input drum and direct clutch drum.
Height:
9.8-1 1.8 mm (0.386-0.465 in.)
If the values are non-standard, check for improper instal-
lation.

AT5213

Front
↑

(d)  Coat the assembled bearing and race with petroleum jelly
and install it onto the forward clutch.
Assembled bearing and race diameter
mm (in.)

Inside          Outside
Assembled bearing
and race          33.5 (1.319)     47.8 (1.882)

AT5137
AT5134                    Z05236
