AT-97
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
Assembled
Bearing and
Race
Race
AT5110
AT5159
SST
AT5400
SST
AT5249
AT5218

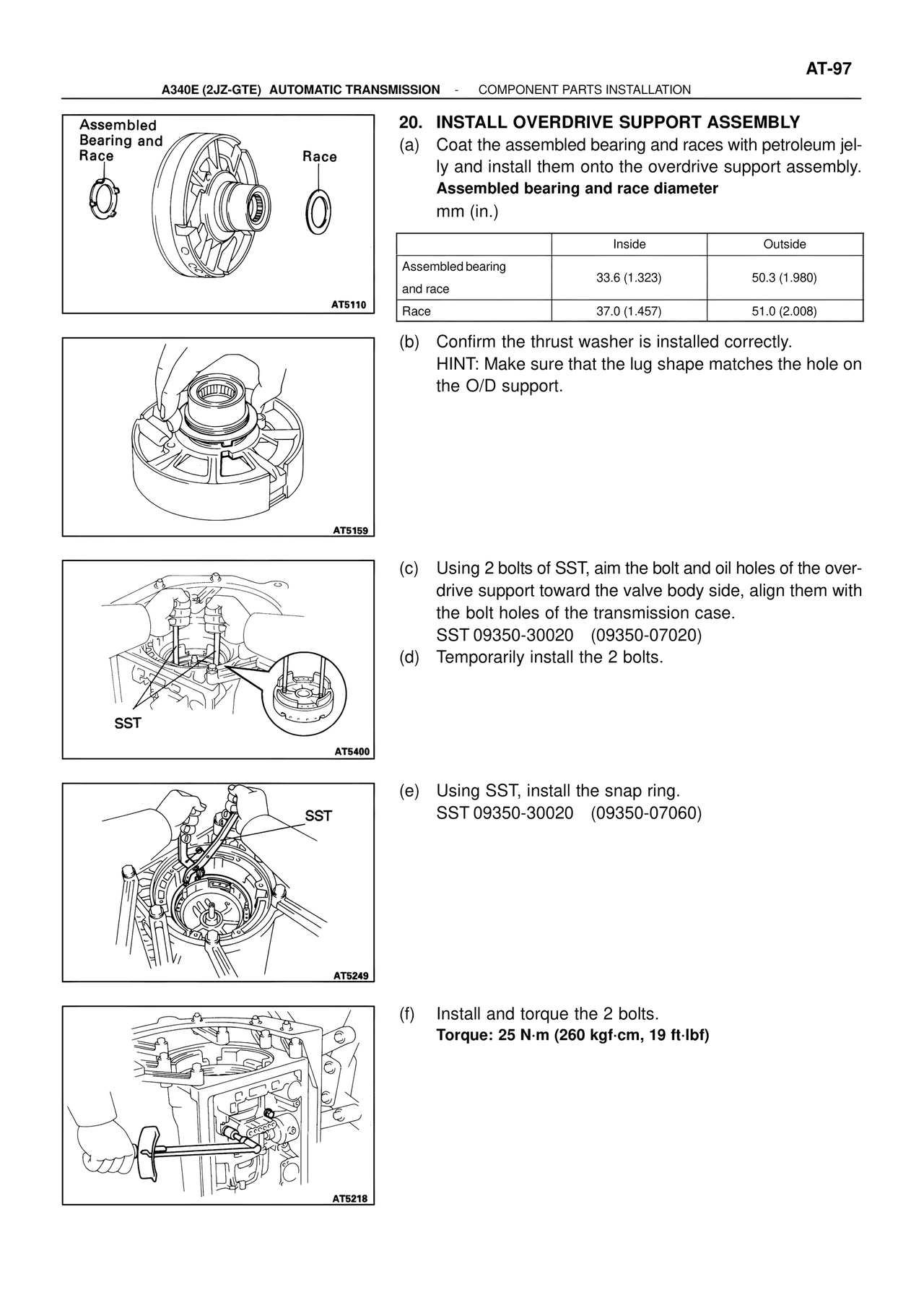

20. INSTALL OVERDRIVE SUPPORT ASSEMBLY
(a) Coat the assembled bearing and races with petroleum jelly and install them onto the overdrive support assembly.
Assembled bearing and race diameter
mm (in.)
Inside Outside
Assembled bearing
and race 33.6 (1.323) 50.3 (1.980)
Race 37.0 (1.457) 51.0 (2.008)
(b) Confirm the thrust washer is installed correctly.
HINT: Make sure that the lug shape matches the hole on the O/D support.
(c) Using 2 bolts of SST, aim the bolt and oil holes of the overdrive support toward the valve body side, align them with the bolt holes of the transmission case.
SST 09350-30020 (09350-07020)
(d) Temporarily install the 2 bolts.
(e) Using SST, install the snap ring.
SST 09350-30020 (09350-07060)
(f) Install and torque the 2 bolts.
Torque: 25 N·m (260 kgf·cm, 19 ft·lbf)
