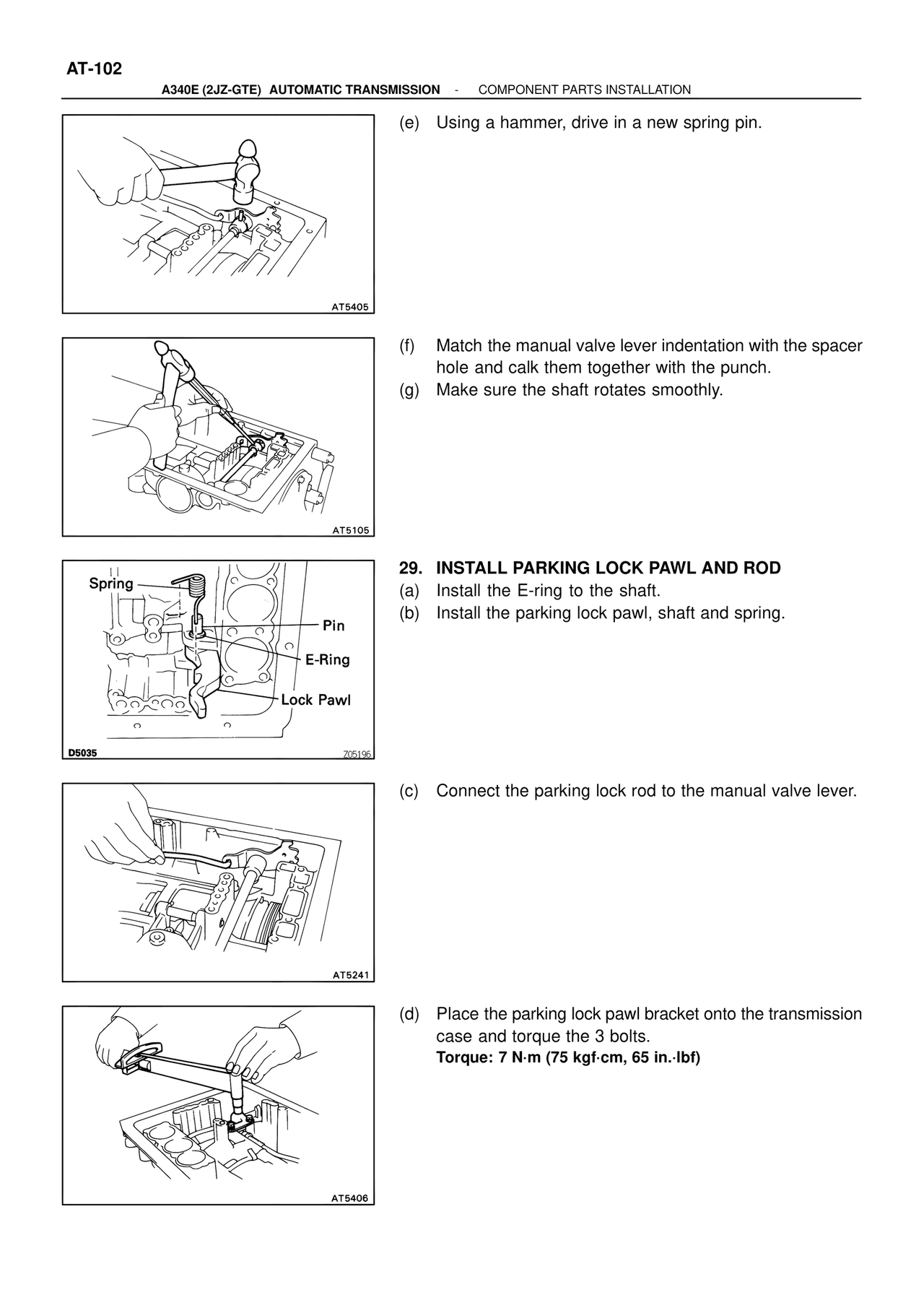

AT-102
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
(e) Using a hammer, drive in a new spring pin.
AT5405
(f) Match the manual valve lever indentation with the spacer
hole and calk them together with the punch.
(g) Make sure the shaft rotates smoothly.
AT5105
29. INSTALL PARKING LOCK PAWL AND ROD
(a) Install the E-ring to the shaft.
(b) Install the parking lock pawl, shaft and spring.
Spring
Pin
E-Ring
Lock Pawl
D5035
Z05196
(c) Connect the parking lock rod to the manual valve lever.
AT5241
(d) Place the parking lock pawl bracket onto the transmission
case and torque the 3 bolts.
Torque: 7 N·m (75 kgf·cm, 65 in.·lbf)
AT5406
