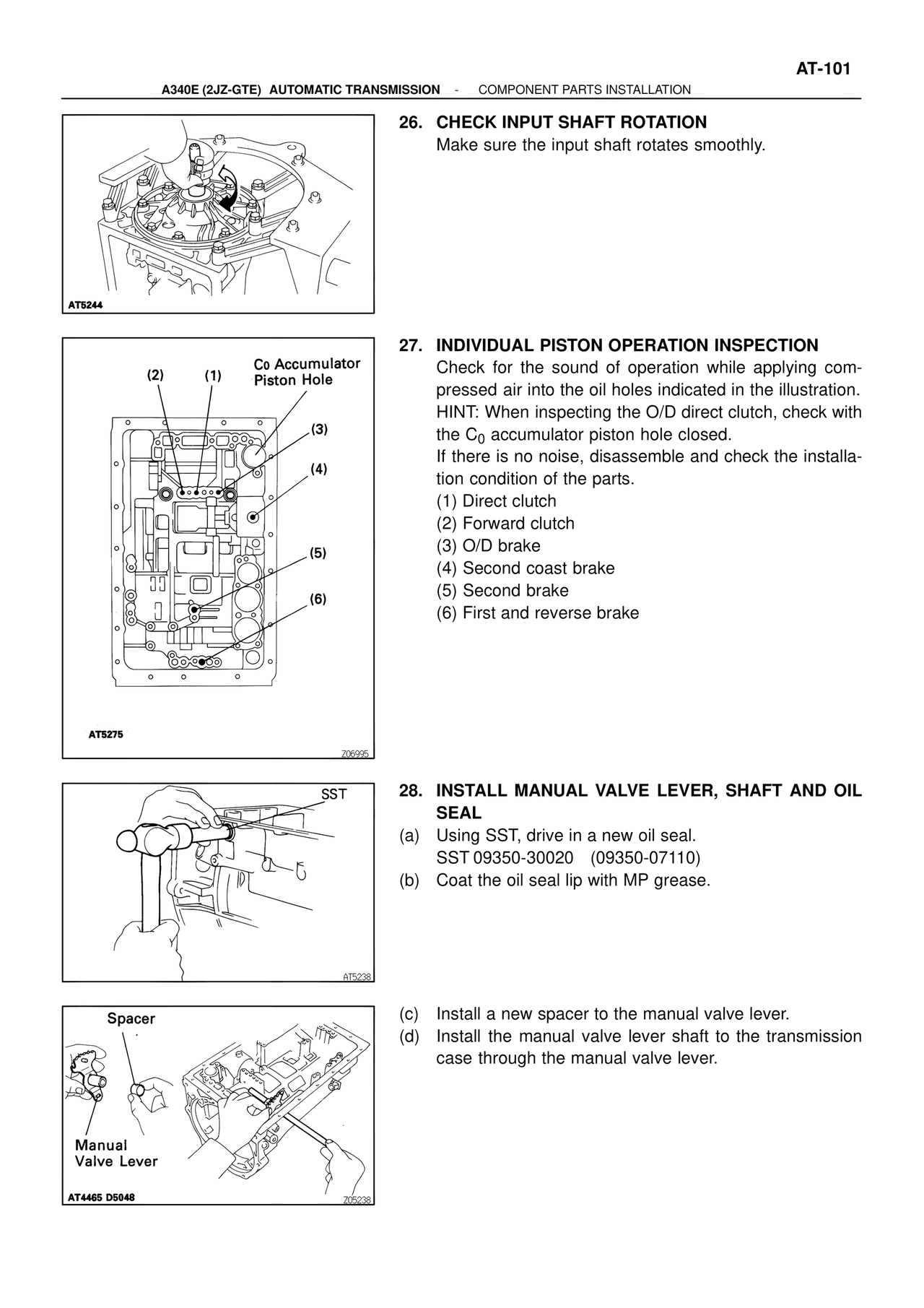

AT-101
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
AT5244
26. CHECK INPUT SHAFT ROTATION
Make sure the input shaft rotates smoothly.
C0 Accumulator
Piston Hole
(2) (1)
(3)
(4)
(5)
(6)
AT5275
Z06995
27. INDIVIDUAL PISTON OPERATION INSPECTION
Check for the sound of operation while applying com-
pressed air into the oil holes indicated in the illustration.
HINT: When inspecting the O/D direct clutch, check with
the C0 accumulator piston hole closed.
If there is no noise, disassemble and check the installa-
tion condition of the parts.
(1) Direct clutch
(2) Forward clutch
(3) O/D brake
(4) Second coast brake
(5) Second brake
(6) First and reverse brake
SST
AT5238
28. INSTALL MANUAL VALVE LEVER, SHAFT AND OIL
SEAL
(a) Using SST, drive in a new oil seal.
SST 09350-30020 (09350-07110)
(b) Coat the oil seal lip with MP grease.
Spacer
Manual
Valve Lever
AT4465 D5048
Z05238
(c) Install a new spacer to the manual valve lever.
(d) Install the manual valve lever shaft to the transmission
case through the manual valve lever.
