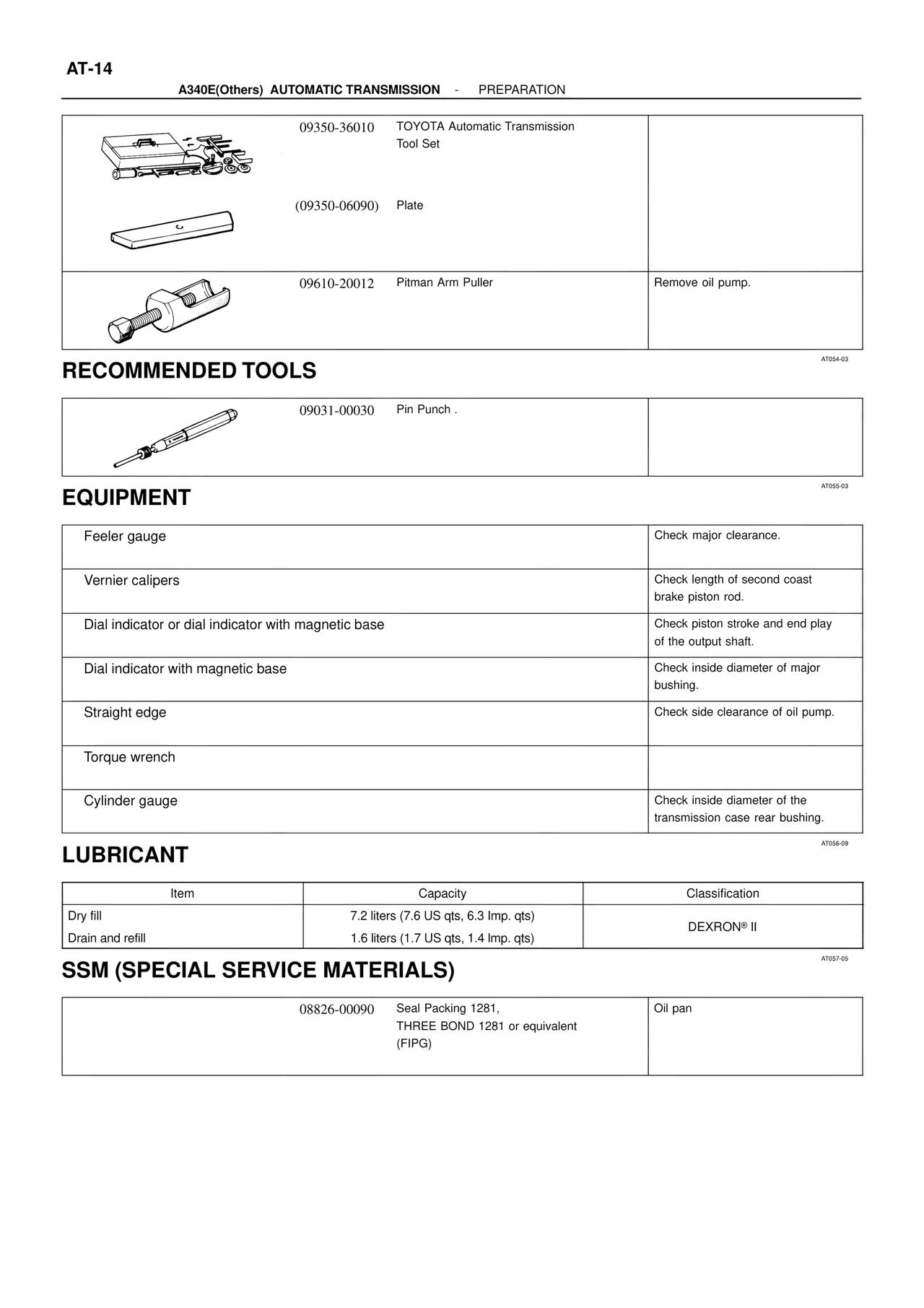

AT-14
A340E(Others) AUTOMATIC TRANSMISSION - PREPARATION
09350-36010 TOYOTA Automatic Transmission
Tool Set
(09350-06090) Plate
09610-20012 Pitman Arm Puller Remove oil pump.
AT054-03
RECOMMENDED TOOLS
09031-00030 Pin Punch .
AT055-03
EQUIPMENT
Feeler gauge Check major clearance.
Vernier calipers Check length of second coast
brake piston rod.
Dial indicator or dial indicator with magnetic base Check piston stroke and end play
of the output shaft.
Dial indicator with magnetic base Check inside diameter of major
bushing.
Straight edge Check side clearance of oil pump.
Torque wrench
Cylinder gauge Check inside diameter of the
transmission case rear bushing.
AT056-09
LUBRICANT
Item Capacity Classification
Dry fill 7.2 liters (7.6 US qts, 6.3 Imp. qts)
DEXRON® II
Drain and refill 1.6 liters (1.7 US qts, 1.4 Imp. qts)
AT057-05
SSM (SPECIAL SERVICE MATERIALS)
08826-00090 Seal Packing 1281,
THREE BOND 1281 or equivalent
(FIPG) Oil pan
