A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

Pin

AT5114

28.6        33.6    28.6    mm (in.)
(1.13)      (1.32)  (1.13)

                                33.6
                                (1.32)
41.6
(1.64)
                                41.6
                                (1.64)
AT5097    33.6    41.6    33.6
          (1.32)  (1.64)  (1.32)
707273

Stopper
Plate

Y_003907

Y_003906

Y_003905

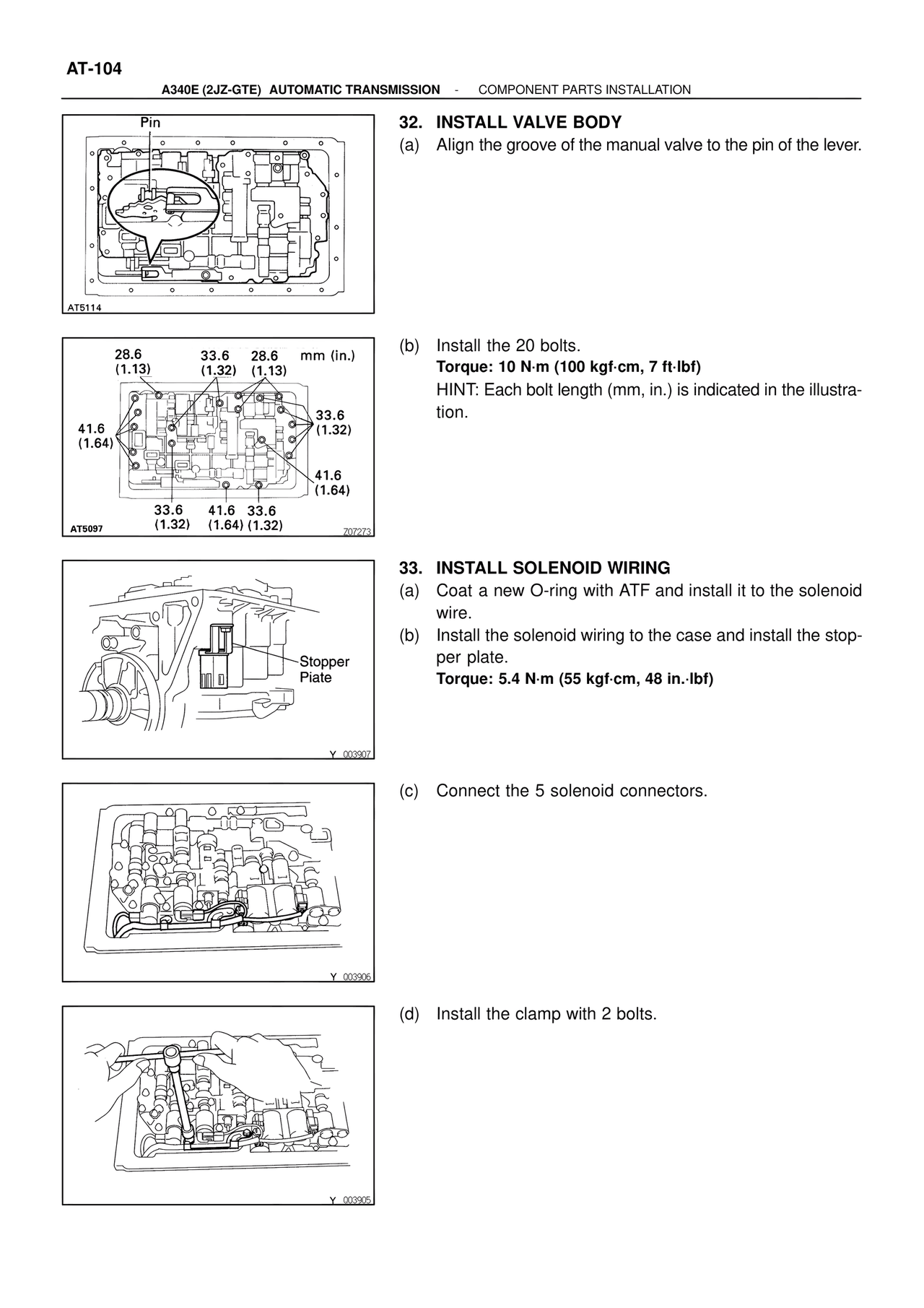

32.  INSTALL VALVE BODY
(a)  Align the groove of the manual valve to the pin of the lever.

(b)  Install the 20 bolts.
     Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
     HINT: Each bolt length (mm, in.) is indicated in the illustration.

33.  INSTALL SOLENOID WIRING
(a)  Coat a new O-ring with ATF and install it to the solenoid wire.
(b)  Install the solenoid wiring to the case and install the stopper plate.
     Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)

(c)  Connect the 5 solenoid connectors.

(d)  Install the clamp with 2 bolts.
