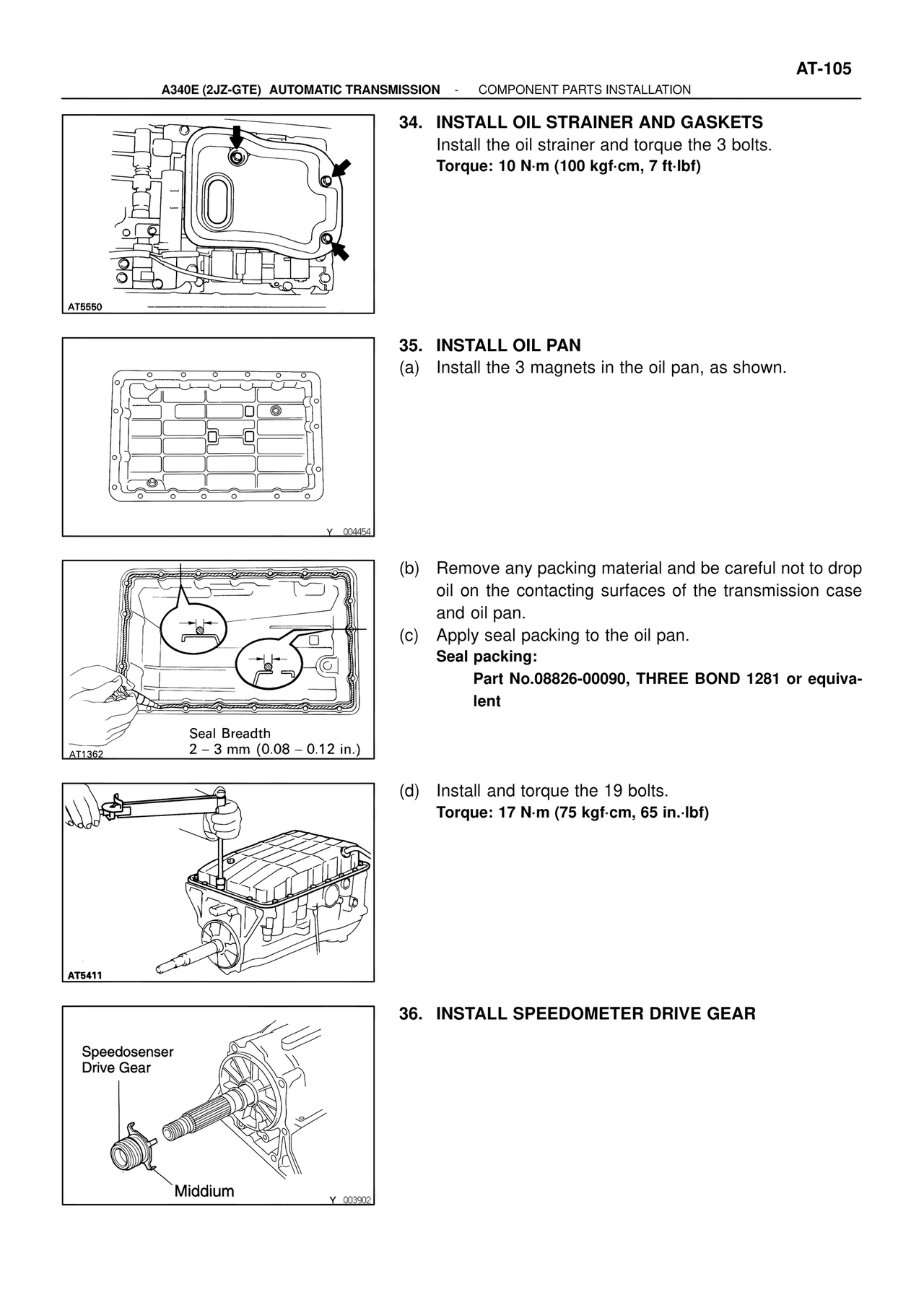

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
AT5550
34. INSTALL OIL STRAINER AND GASKETS
Install the oil strainer and torque the 3 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
Y 004454
35. INSTALL OIL PAN
(a) Install the 3 magnets in the oil pan, as shown.
Seal Breadth
2 – 3 mm (0.08 – 0.12 in.)
AT1362
(b) Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case and oil pan.
(c) Apply seal packing to the oil pan.
Seal packing:
Part No.08826-00090, THREE BOND 1281 or equivalent
AT5411
(d) Install and torque the 19 bolts.
Torque: 17 N·m (75 kgf·cm, 65 in.·lbf)
Speedosenser
Drive Gear
Middium
Y 003902
36. INSTALL SPEEDOMETER DRIVE GEAR
