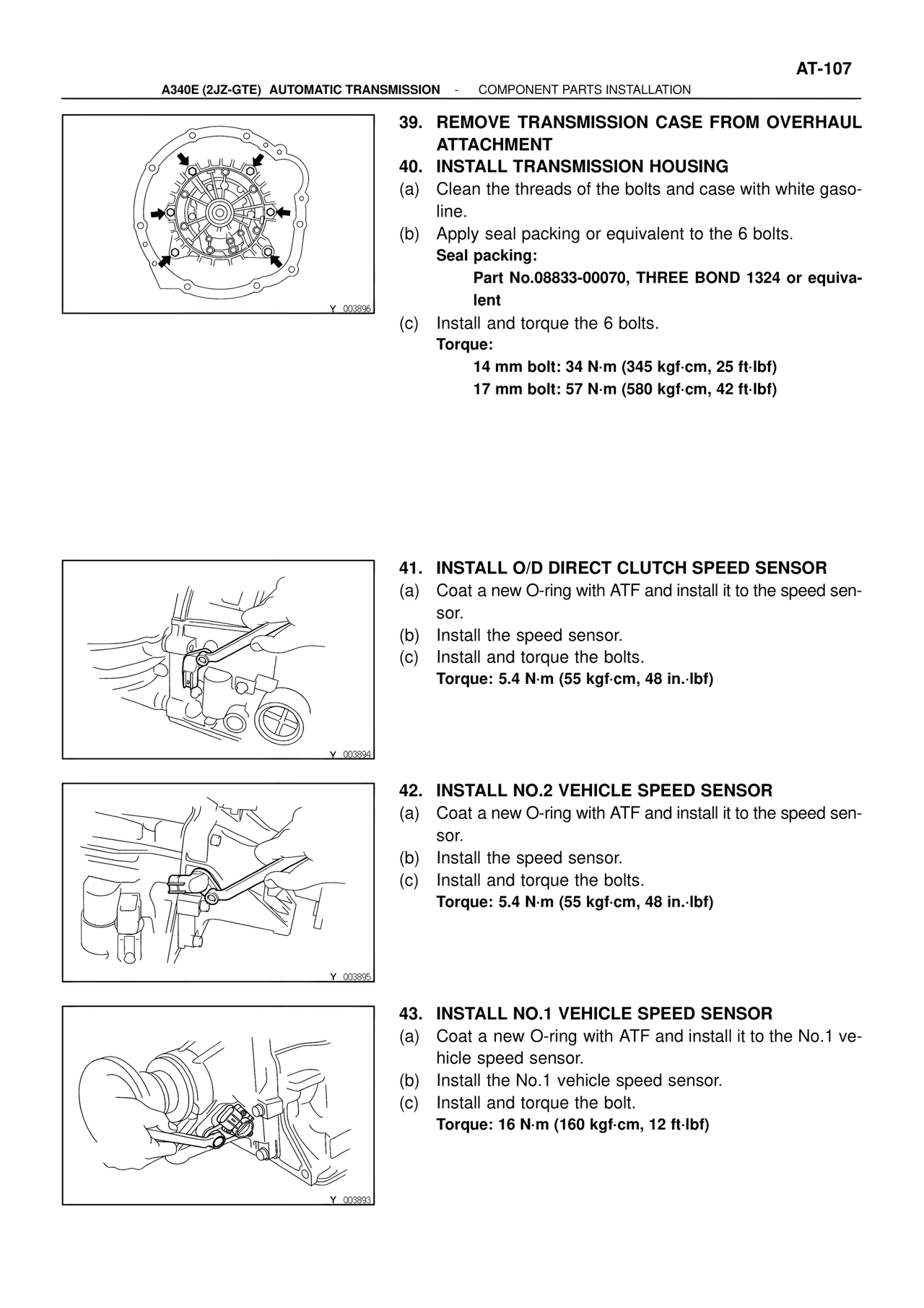

AT-107 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION 39. REMOVE TRANSMISSION CASE FROM OVERHAUL ATTACHMENT 40. INSTALL TRANSMISSION HOUSING (a) Clean the threads of the bolts and case with white gaso- line. (b) Apply seal packing or equivalent to the 6 bolts. Seal packing: Part No.08833-00070, THREE BOND 1324 or equiva- lent (c) Install and torque the 6 bolts. Torque: 14 mm bolt: 34 N·m (345 kgf·cm, 25 ft·lbf) 17 mm bolt: 57 N·m (580 kgf·cm, 42 ft·lbf) Y 003895 41. INSTALL O/D DIRECT CLUTCH SPEED SENSOR (a) Coat a new O-ring with ATF and install it to the speed sen- sor. (b) Install the speed sensor. (c) Install and torque the bolts. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf) Y 003894 42. INSTALL NO.2 VEHICLE SPEED SENSOR (a) Coat a new O-ring with ATF and install it to the speed sen- sor. (b) Install the speed sensor. (c) Install and torque the bolts. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf) Y 003895 43. INSTALL NO.1 VEHICLE SPEED SENSOR (a) Coat a new O-ring with ATF and install it to the No.1 ve- hicle speed sensor. (b) Install the No.1 vehicle speed sensor. (c) Install and torque the bolt. Torque: 16 N·m (160 kgf·cm, 12 ft·lbf) Y 003893
