AT-106
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
Seal Breadth
2 - 3 mm
(0.08 - 0.12 in.)
AT5263
B B
A
AT5094
Y_004334
SST
Y_003898
Y_003897

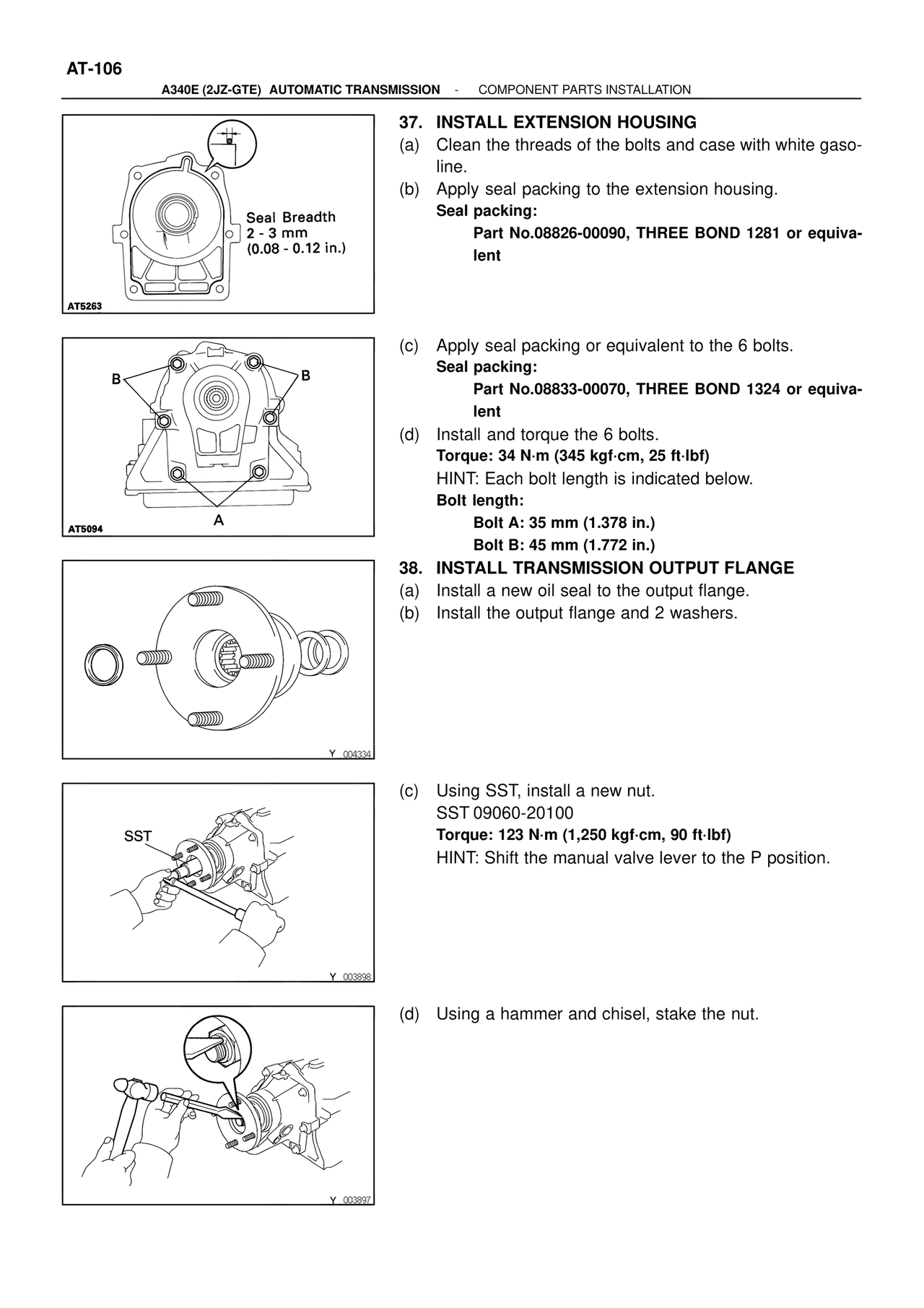

37. INSTALL EXTENSION HOUSING
(a) Clean the threads of the bolts and case with white gasoline.
(b) Apply seal packing to the extension housing.
Seal packing:
Part No.08826-00090, THREE BOND 1281 or equivalent
(c) Apply seal packing or equivalent to the 6 bolts.
Seal packing:
Part No.08833-00070, THREE BOND 1324 or equivalent
(d) Install and torque the 6 bolts.
Torque: 34 N·m (345 kgf·cm, 25 ft·lbf)
HINT: Each bolt length is indicated below.
Bolt length:
Bolt A: 35 mm (1.378 in.)
Bolt B: 45 mm (1.772 in.)
38. INSTALL TRANSMISSION OUTPUT FLANGE
(a) Install a new oil seal to the output flange.
(b) Install the output flange and 2 washers.
(c) Using SST, install a new nut.
SST 09060-20100
Torque: 123 N·m (1,250 kgf·cm, 90 ft·lbf)
HINT: Shift the manual valve lever to the P position.
(d) Using a hammer and chisel, stake the nut.
