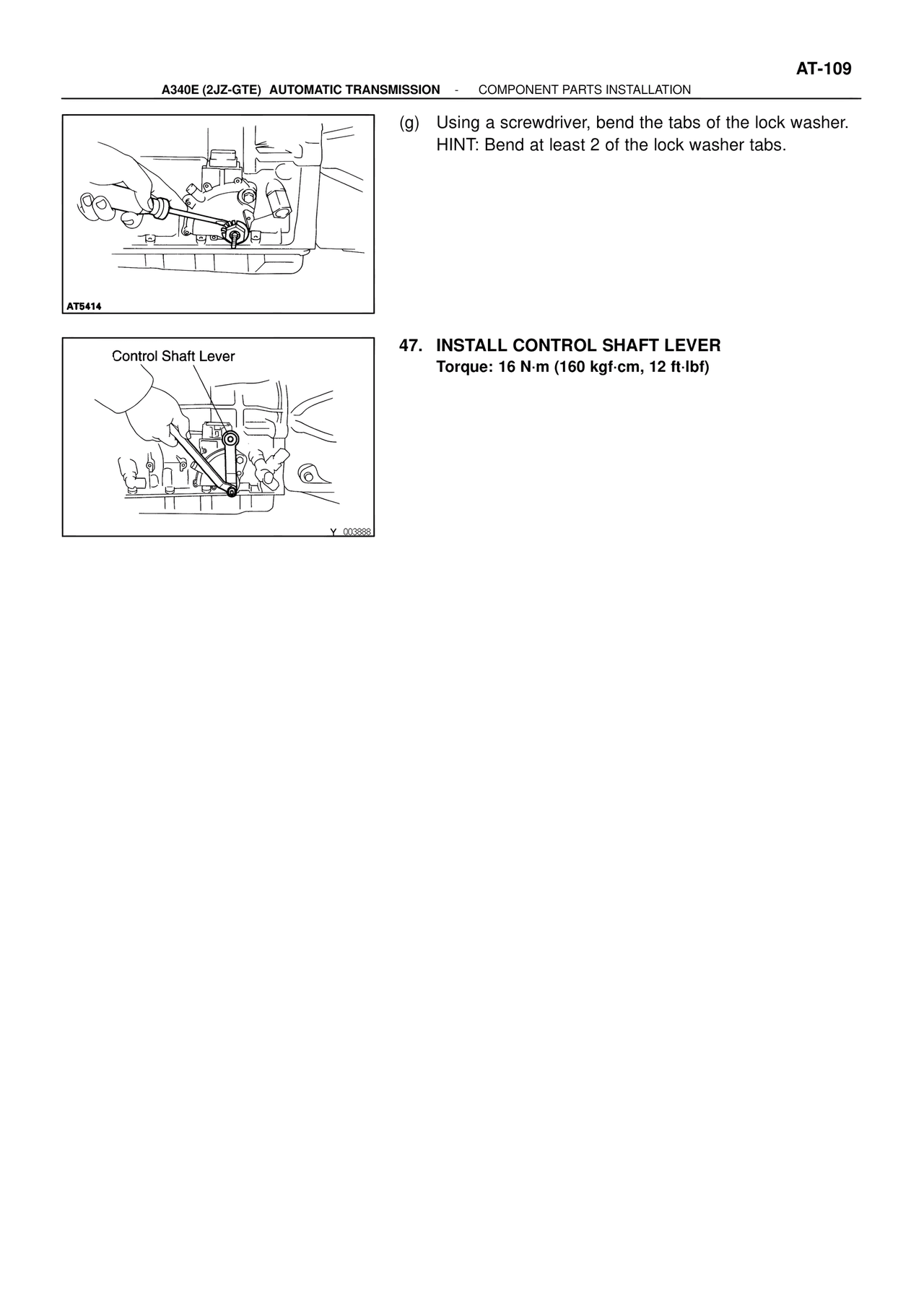

AT-109 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION AT5414 (g) Using a screwdriver, bend the tabs of the lock washer. HINT: Bend at least 2 of the lock washer tabs. Control Shaft Lever Y 003888 47. INSTALL CONTROL SHAFT LEVER Torque: 16 N·m (160 kgf·cm, 12 ft·lbf)
