AT-1
A340E(Others) AUTOMATIC TRANSMISSION - DESCRIPTION
DESCRIPTION
GENERAL DESCRIPTION
AT0FT-02
The A340E is a 4-speed, Electronically Controlled Transmission developed for use with high-performance engines. A lock-up mechanism is built into the torque converter clutch.
The A340E automatic transmission is mainly composed of the torque converter clutch, the overdrive (hereafter called O/D) planetary gear unit, a 3-speed planetary gear unit, a hydraulic control system and an electronic control system.

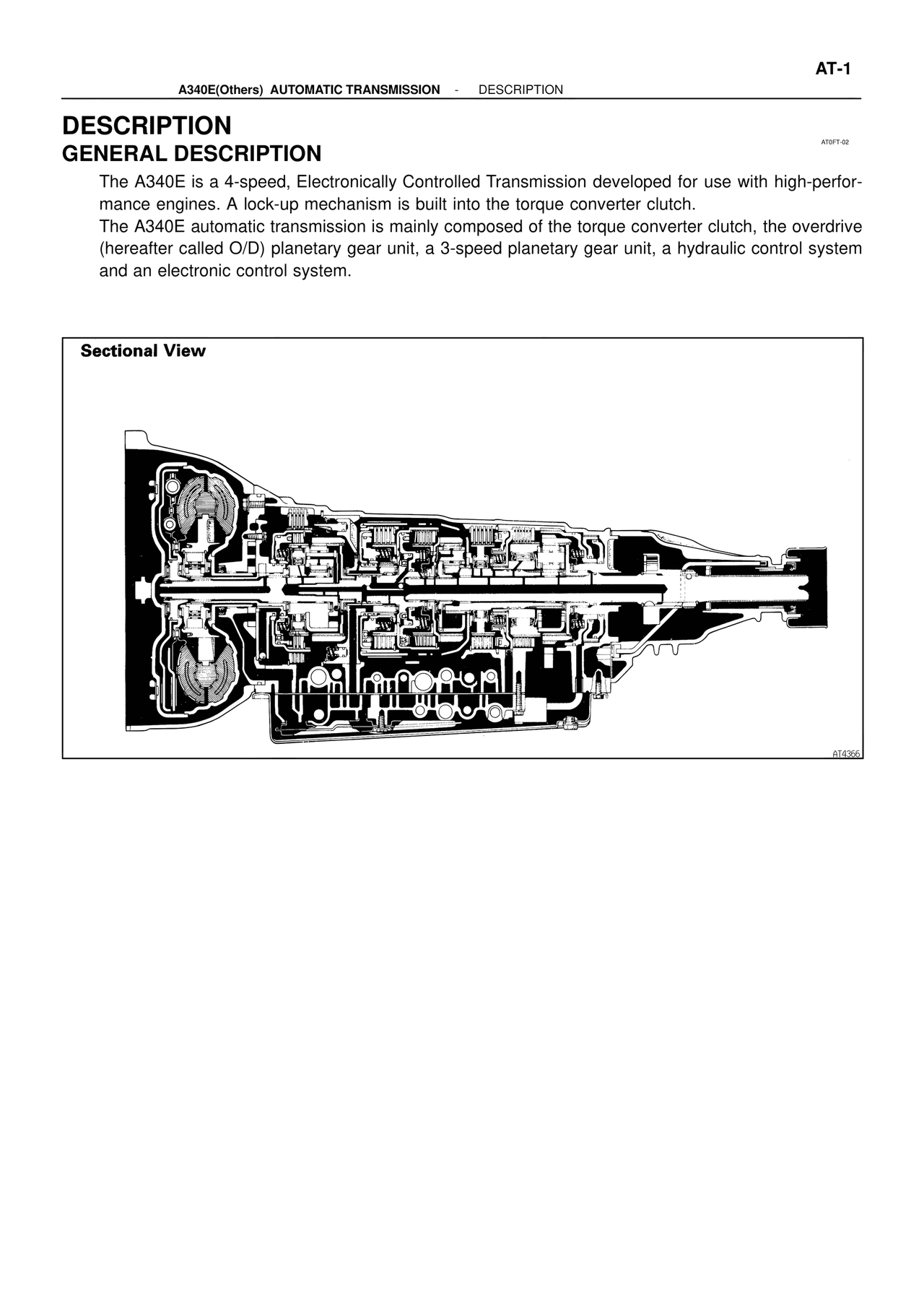

Sectional View
AT4366
