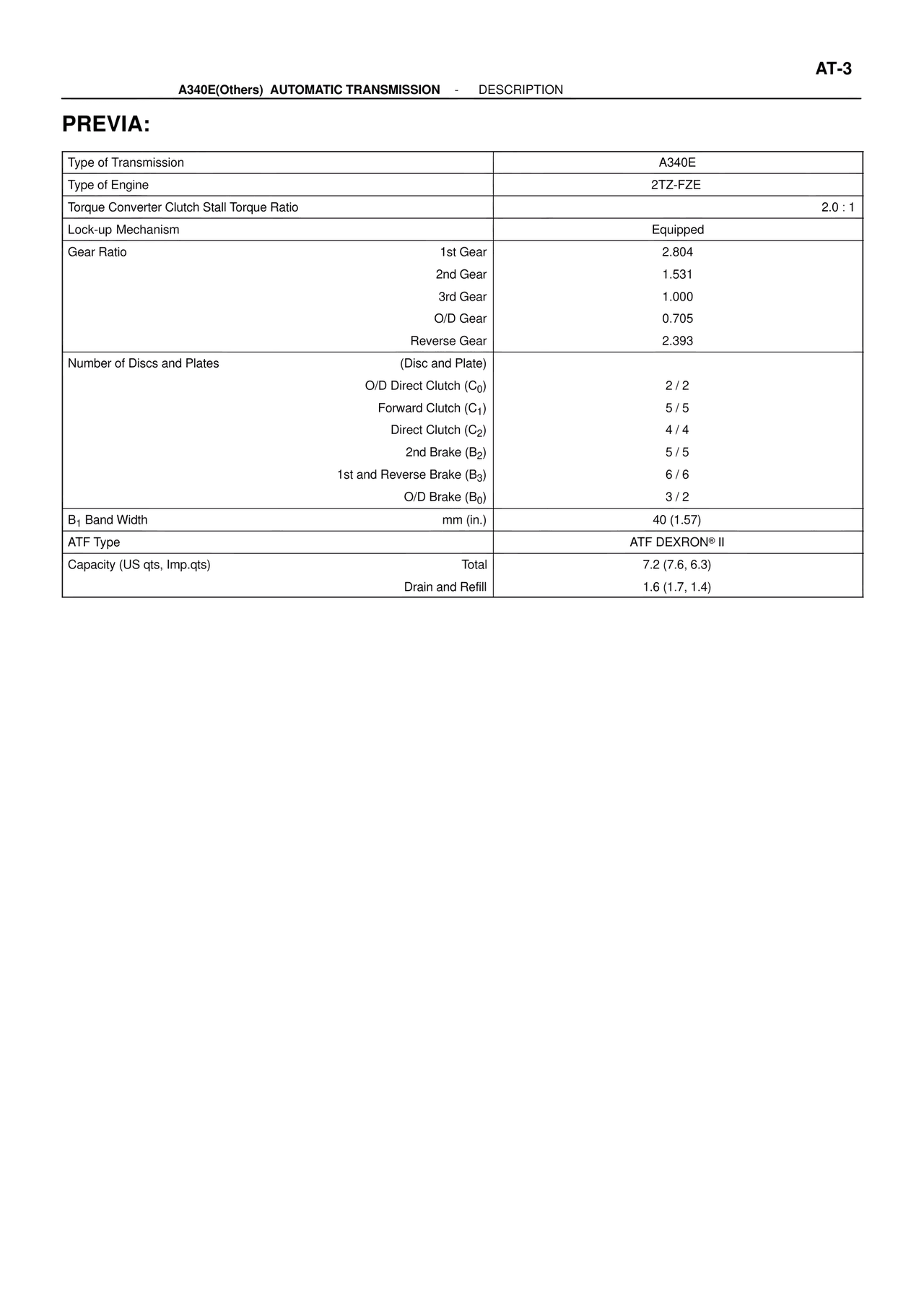

AT-3
A340E(Others) AUTOMATIC TRANSMISSION - DESCRIPTION
PREVIA:
Type of Transmission A340E
Type of Engine 2TZ-FZE
Torque Converter Clutch Stall Torque Ratio 2.0 : 1
Lock-up Mechanism Equipped
Gear Ratio 1st Gear 2.804
2nd Gear 1.531
3rd Gear 1.000
O/D Gear 0.705
Reverse Gear 2.393
Number of Discs and Plates (Disc and Plate)
O/D Direct Clutch (C0) 2 / 2
Forward Clutch (C1) 5 / 5
Direct Clutch (C2) 4 / 4
2nd Brake (B2) 5 / 5
1st and Reverse Brake (B3) 6 / 6
O/D Brake (B0) 3 / 2
B1 Band Width mm (in.) 40 (1.57)
ATF Type ATF DEXRON® II
Capacity (US qts, Imp.qts) Total 7.2 (7.6, 6.3)
Drain and Refill 1.6 (1.7, 1.4)
