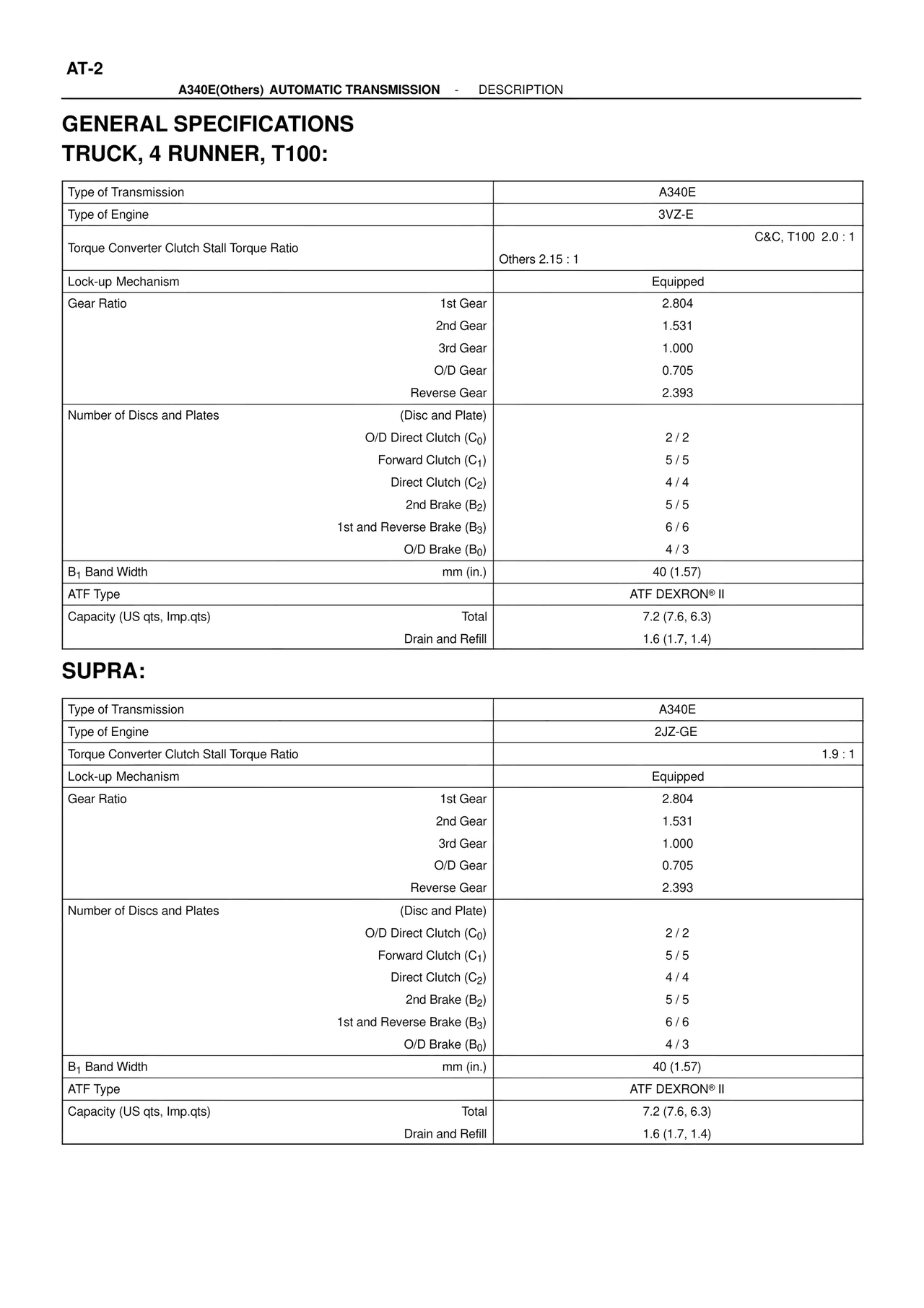

ATR/ATM Unit Repair — General Specifications Truck, 4 Runner, T100:, page 148

AT-2

A340E(Others)  AUTOMATIC TRANSMISSION  -  DESCRIPTION

GENERAL SPECIFICATIONS
TRUCK, 4 RUNNER, T100:

Type of Transmission	A340E
Type of Engine	3VZ-E
Torque Converter Clutch Stall Torque Ratio	C&C, T100  2.0 : 1
									Others 2.15 : 1
Lock-up Mechanism	Equipped
Gear Ratio	1st Gear	2.804
	2nd Gear	1.531
	3rd Gear	1.000
	O/D Gear	0.705
	Reverse Gear	2.393
Number of Discs and Plates	(Disc and Plate)
	O/D Direct Clutch (C0)	2 / 2
	Forward Clutch (C1)	5 / 5
	Direct Clutch (C2)	4 / 4
	2nd Brake (B2)	5 / 5
	1st and Reverse Brake (B3)	6 / 6
	O/D Brake (B0)	4 / 3
B1 Band Width	mm (in.)	40 (1.57)
ATF Type	ATF DEXRON® II
Capacity (US qts, Imp.qts)	Total	7.2 (7.6, 6.3)
	Drain and Refill	1.6 (1.7, 1.4)

SUPRA:

Type of Transmission	A340E
Type of Engine	2JZ-GE
Torque Converter Clutch Stall Torque Ratio	1.9 : 1
Lock-up Mechanism	Equipped
Gear Ratio	1st Gear	2.804
	2nd Gear	1.531
	3rd Gear	1.000
	O/D Gear	0.705
	Reverse Gear	2.393
Number of Discs and Plates	(Disc and Plate)
	O/D Direct Clutch (C0)	2 / 2
	Forward Clutch (C1)	5 / 5
	Direct Clutch (C2)	4 / 4
	2nd Brake (B2)	5 / 5
	1st and Reverse Brake (B3)	6 / 6
	O/D Brake (B0)	4 / 3
B1 Band Width	mm (in.)	40 (1.57)
ATF Type	ATF DEXRON® II
Capacity (US qts, Imp.qts)	Total	7.2 (7.6, 6.3)
	Drain and Refill	1.6 (1.7, 1.4)
