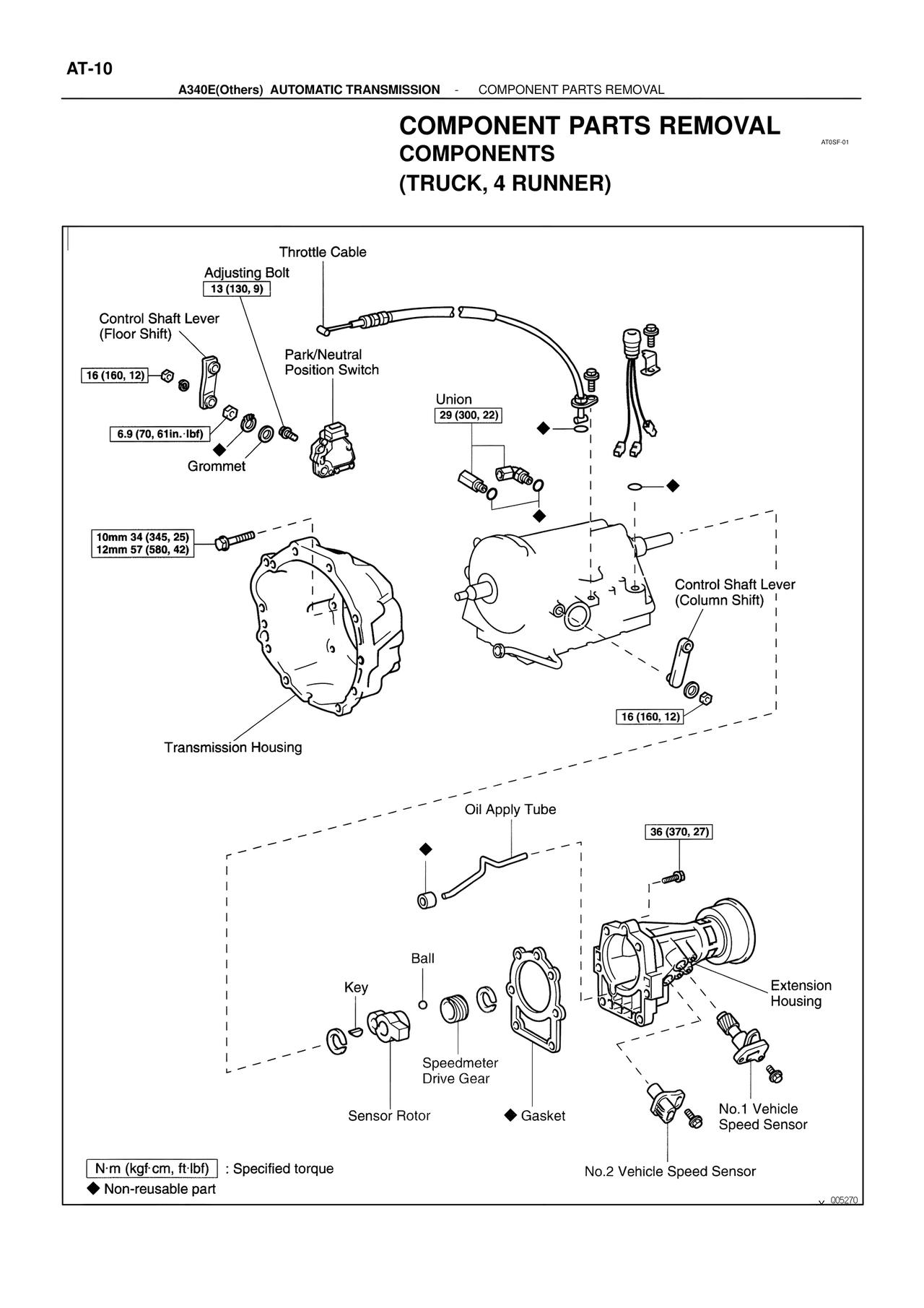

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL

COMPONENT PARTS REMOVAL
COMPONENTS
(TRUCK, 4 RUNNER)

AT05F-01

Throttle Cable
Adjusting Bolt
13 (130, 9)

Control Shaft Lever
(Floor Shift)

16 (160, 12)

Park/Neutral
Position Switch

6.9 (70, 61in.·lbf)

Grommet

Union
29 (300, 22)

10mm 34 (345, 25)
12mm 57 (580, 42)

Control Shaft Lever
(Column Shift)

16 (160, 12)

Transmission Housing

Oil Apply Tube

36 (370, 27)

Ball

Key

Extension
Housing

Speedmeter
Drive Gear

Sensor Rotor

◆ Gasket

No.1 Vehicle
Speed Sensor

No.2 Vehicle Speed Sensor

N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
