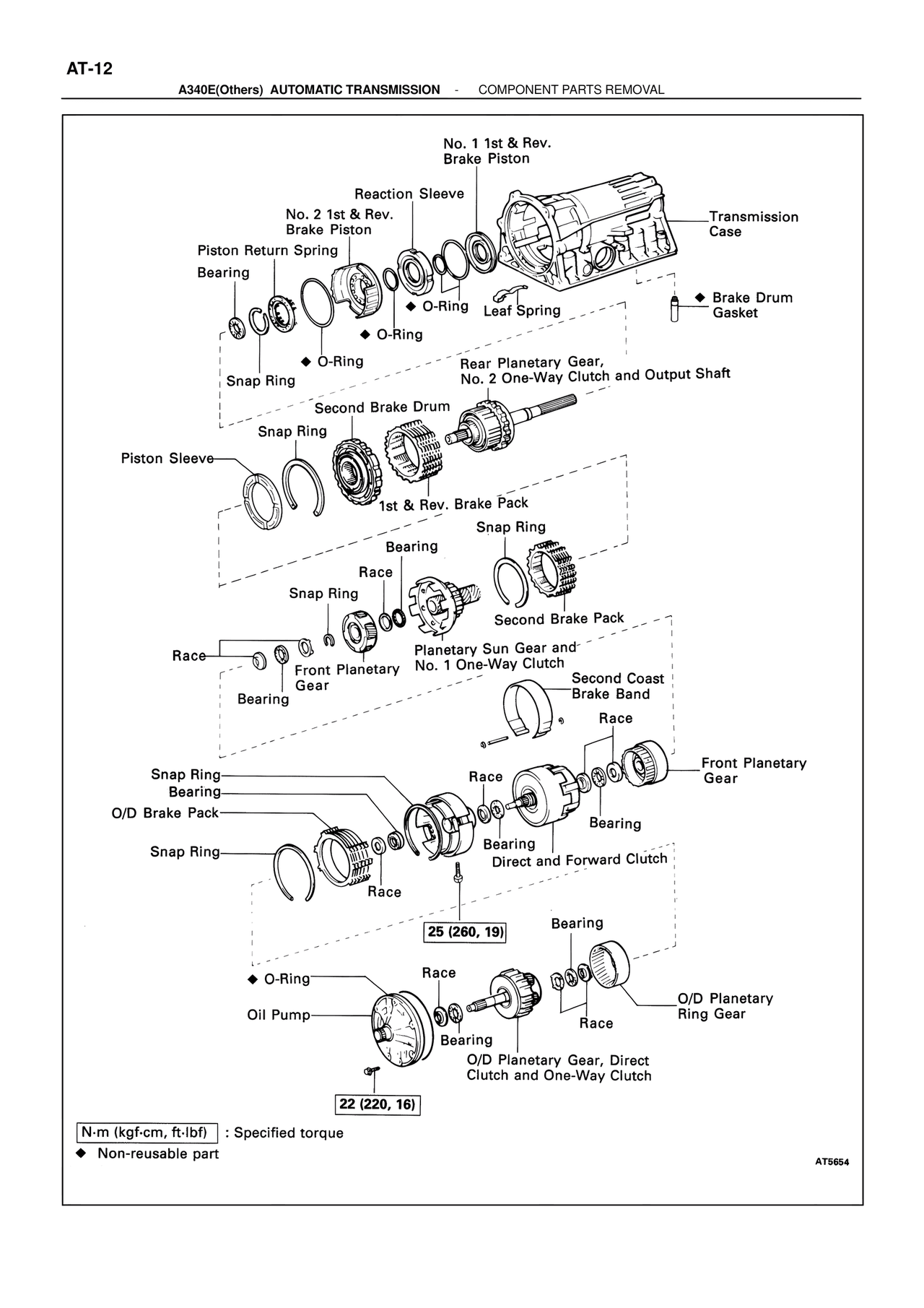

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
No. 1 1st & Rev.
Brake Piston
Reaction Sleeve
No. 2 1st & Rev.
Brake Piston
Piston Return Spring
Bearing
◆ O-Ring
◆ O-Ring
◆ O-Ring
Leaf Spring
◆ Brake Drum
Gasket
Transmission
Case
Snap Ring
Rear Planetary Gear,
No. 2 One-Way Clutch and Output Shaft
Second Brake Drum
Snap Ring
Piston Sleeve
1st & Rev. Brake Pack
Snap Ring
Bearing
Race
Snap Ring
Second Brake Pack
Race
Planetary Sun Gear and
Front Planetary
No. 1 One-Way Clutch
Gear
Bearing
Second Coast
Brake Band
Race
Front Planetary
Gear
Snap Ring
Race
Bearing
Bearing
O/D Brake Pack
Direct and Forward Clutch
Snap Ring
Race
25 (260, 19)
Bearing
◆ O-Ring
Race
O/D Planetary
Ring Gear
Oil Pump
Race
Bearing
O/D Planetary Gear, Direct
Clutch and One-Way Clutch
22 (220, 16)
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
