AT-13

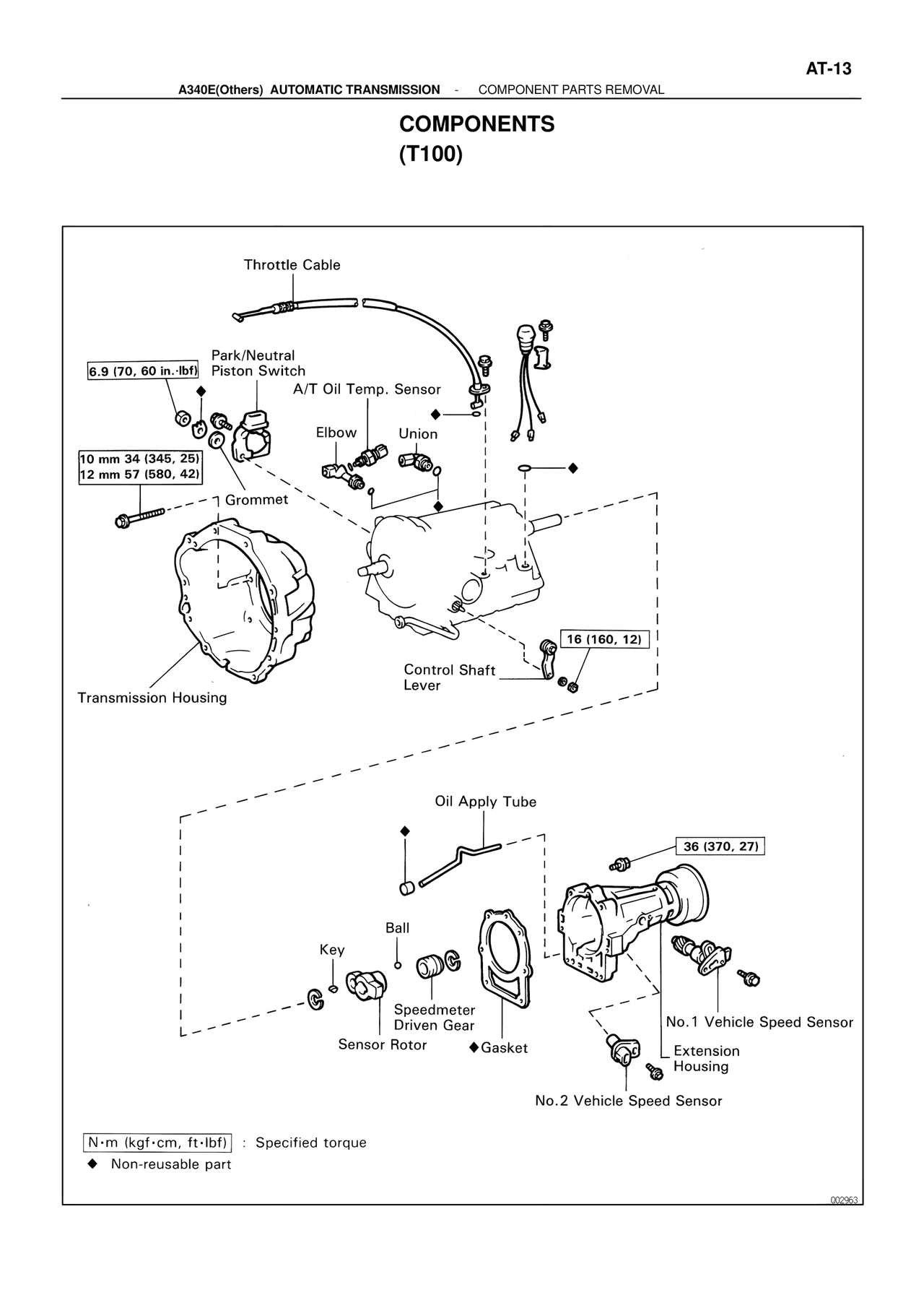

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
COMPONENTS
(T100)
Throttle Cable
Park/Neutral
6.9 (70, 60 in.·lbf) Piston Switch
A/T Oil Temp. Sensor
Elbow Union
10 mm 34 (345, 25)
12 mm 57 (580, 42)
Grommet
Transmission Housing
16 (160, 12)
Control Shaft
Lever
Oil Apply Tube
36 (370, 27)
Ball
Key
Speedmeter
Driven Gear
Sensor Rotor ◆Gasket
No.1 Vehicle Speed Sensor
Extension
Housing
No.2 Vehicle Speed Sensor
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
002963
