AT-17

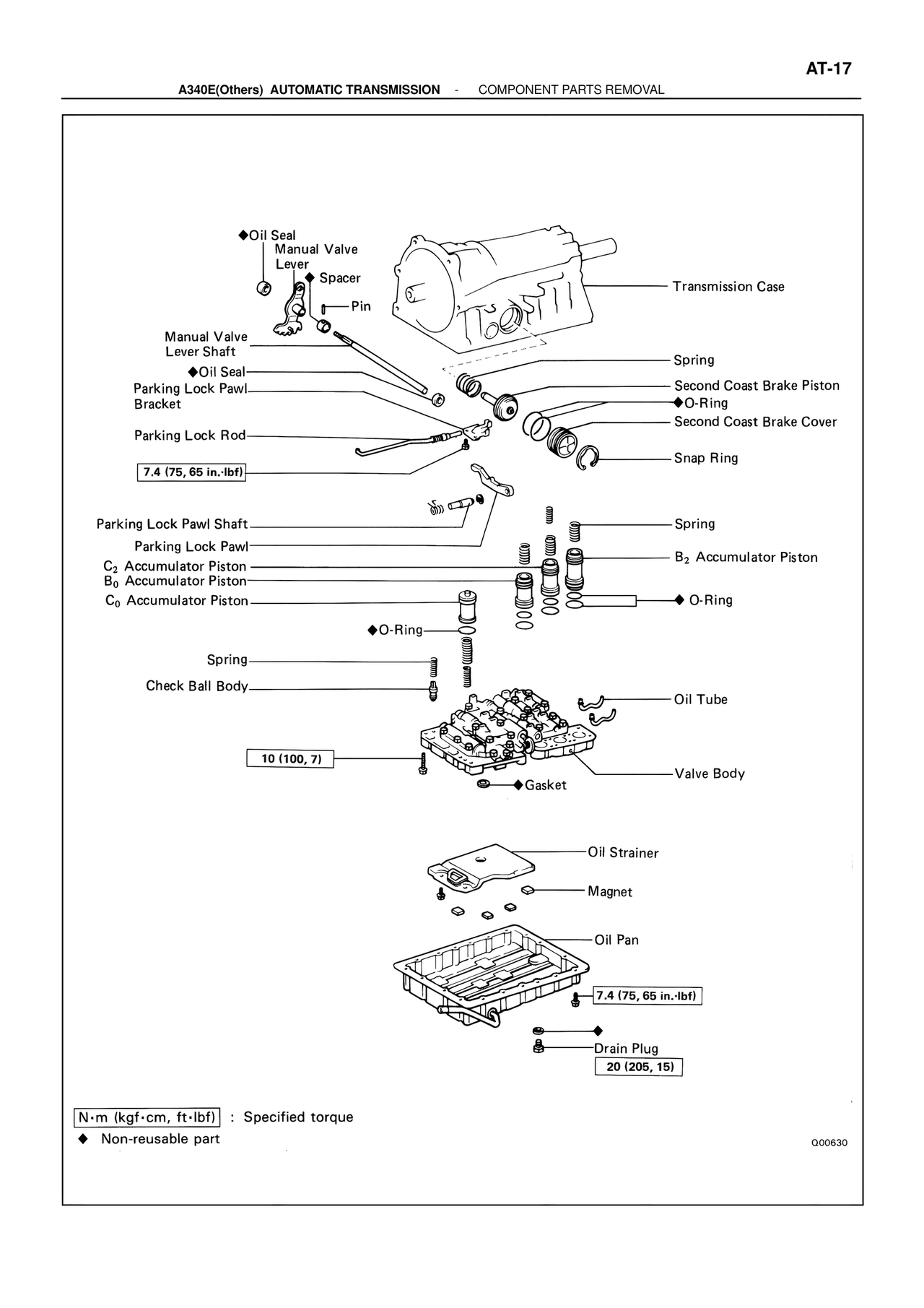

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
◆Oil Seal
Manual Valve
Lever
◆ Spacer
◆ Pin
Manual Valve
Lever Shaft
◆Oil Seal
Parking Lock Pawl
Bracket
Parking Lock Rod
7.4 (75, 65 in.·lbf)
Parking Lock Pawl Shaft
Parking Lock Pawl
C2 Accumulator Piston
B0 Accumulator Piston
C0 Accumulator Piston
◆O-Ring
Spring
Check Ball Body
10 (100, 7)
Transmission Case
Spring
Second Coast Brake Piston
◆O-Ring
Second Coast Brake Cover
Snap Ring
Spring
B2 Accumulator Piston
◆ O-Ring
Oil Tube
Valve Body
◆Gasket
Oil Strainer
Magnet
Oil Pan
7.4 (75, 65 in.·lbf)
Drain Plug
20 (205, 15)
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
Q00630
