AT-16

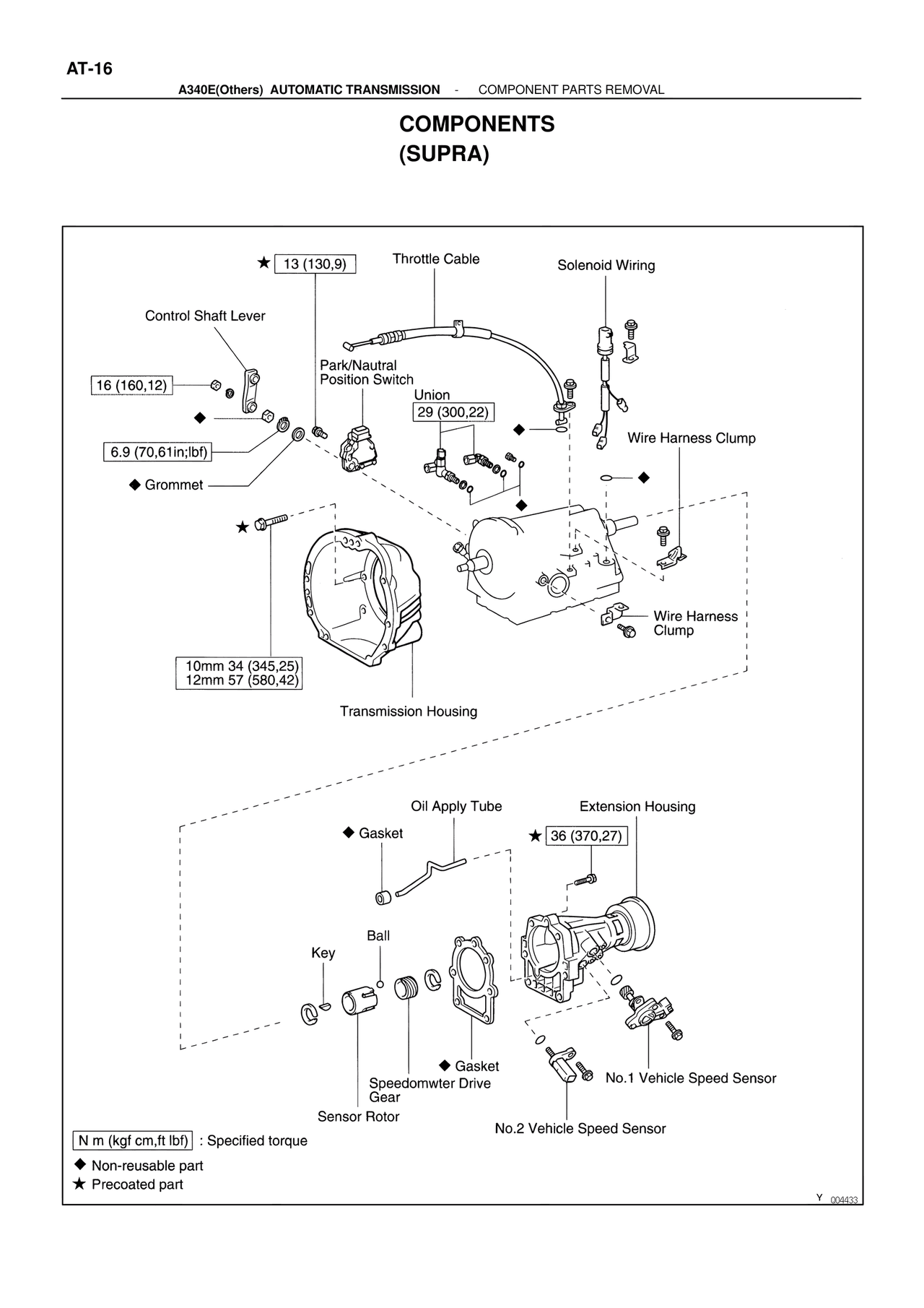

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
COMPONENTS
(SUPRA)
★ 13 (130,9)
Throttle Cable
Solenoid Wiring
Control Shaft Lever
16 (160,12)
Park/Nautral
Position Switch
Union
29 (300,22)
Wire Harness Clump
6.9 (70,61in;lbf)
◆ Grommet
★
Wire Harness
Clump
10mm 34 (345,25)
12mm 57 (580,42)
Transmission Housing
Oil Apply Tube
Extension Housing
◆ Gasket
★ 36 (370,27)
Key
Ball
◆ Gasket
Speedomwter Drive
Gear
Sensor Rotor
No.1 Vehicle Speed Sensor
No.2 Vehicle Speed Sensor
N m (kgf cm,ft lbf) : Specified torque
◆ Non-reusable part
★ Precoated part
Y 004433
