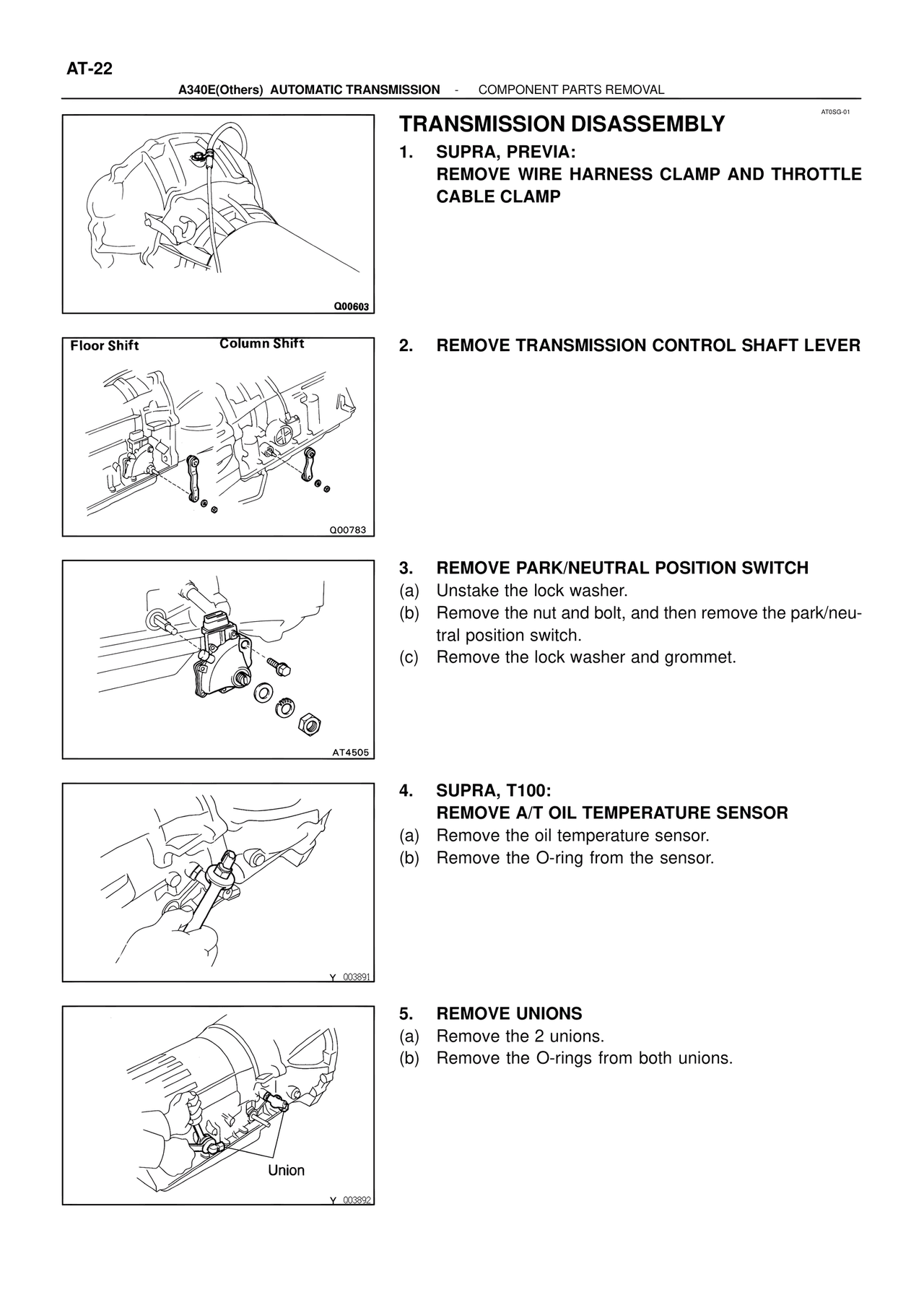

ATR/ATM Unit Repair — Transmission Disassembly, page 168

AT-22
A340E(Others)  AUTOMATIC TRANSMISSION  -  COMPONENT PARTS REMOVAL

AT0SG-01
TRANSMISSION DISASSEMBLY

1.  SUPRA, PREVIA:
    REMOVE WIRE HARNESS CLAMP AND THROTTLE
    CABLE CLAMP

Q00603

Floor Shift        Column Shift

2.  REMOVE TRANSMISSION CONTROL SHAFT LEVER

Q00783

3.  REMOVE PARK/NEUTRAL POSITION SWITCH
(a)  Unstake the lock washer.
(b)  Remove the nut and bolt, and then remove the park/neu-
     tral position switch.
(c)  Remove the lock washer and grommet.

AT4505

4.  SUPRA, T100:
    REMOVE A/T OIL TEMPERATURE SENSOR
(a)  Remove the oil temperature sensor.
(b)  Remove the O-ring from the sensor.

Y_003891

5.  REMOVE UNIONS
(a)  Remove the 2 unions.
(b)  Remove the O-rings from both unions.

Union

Y_003892
