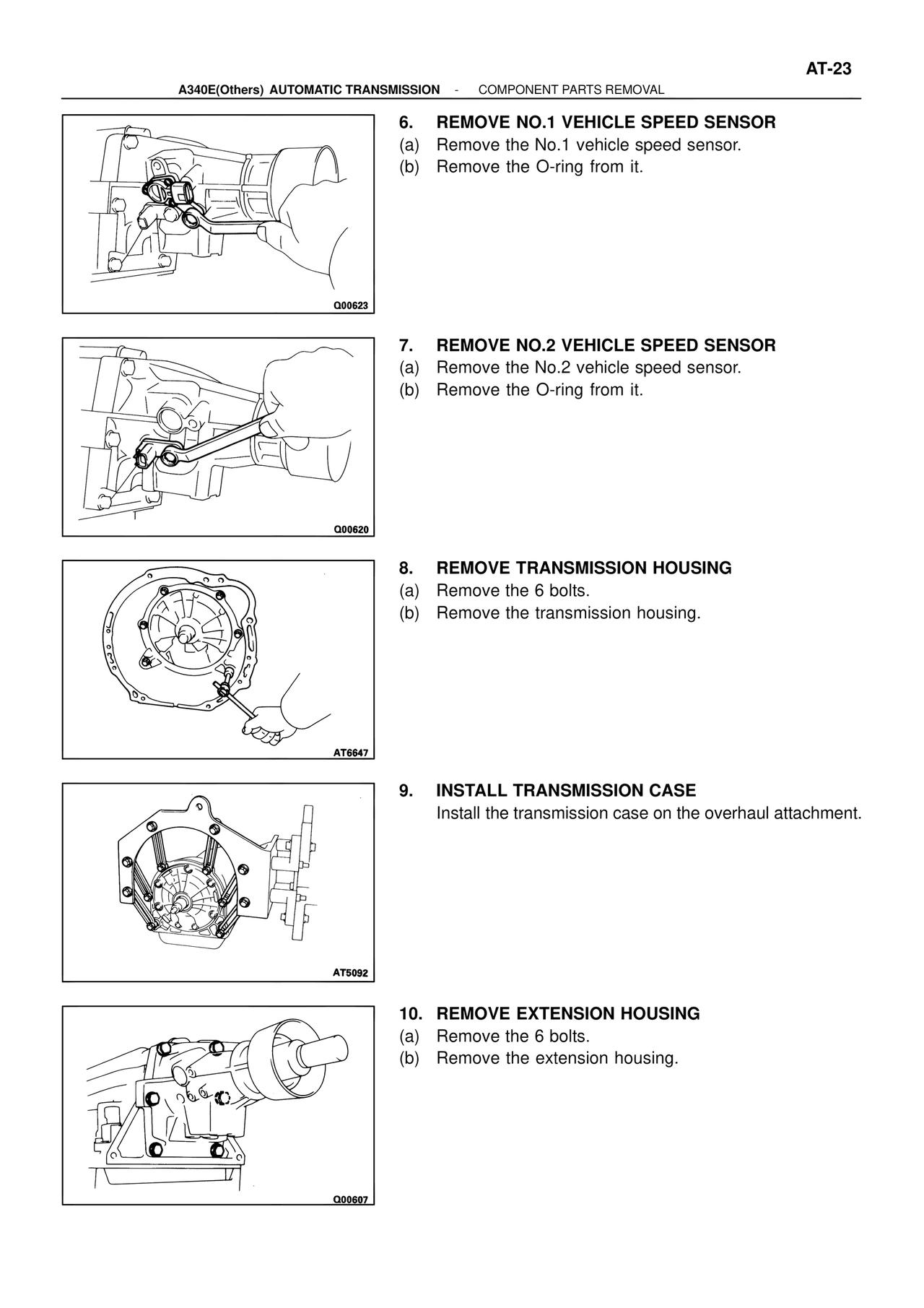

AT-23
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
6. REMOVE NO.1 VEHICLE SPEED SENSOR
(a) Remove the No.1 vehicle speed sensor.
(b) Remove the O-ring from it.
Q00623
7. REMOVE NO.2 VEHICLE SPEED SENSOR
(a) Remove the No.2 vehicle speed sensor.
(b) Remove the O-ring from it.
Q00620
8. REMOVE TRANSMISSION HOUSING
(a) Remove the 6 bolts.
(b) Remove the transmission housing.
AT6647
9. INSTALL TRANSMISSION CASE
Install the transmission case on the overhaul attachment.
AT5092
10. REMOVE EXTENSION HOUSING
(a) Remove the 6 bolts.
(b) Remove the extension housing.
Q00607
