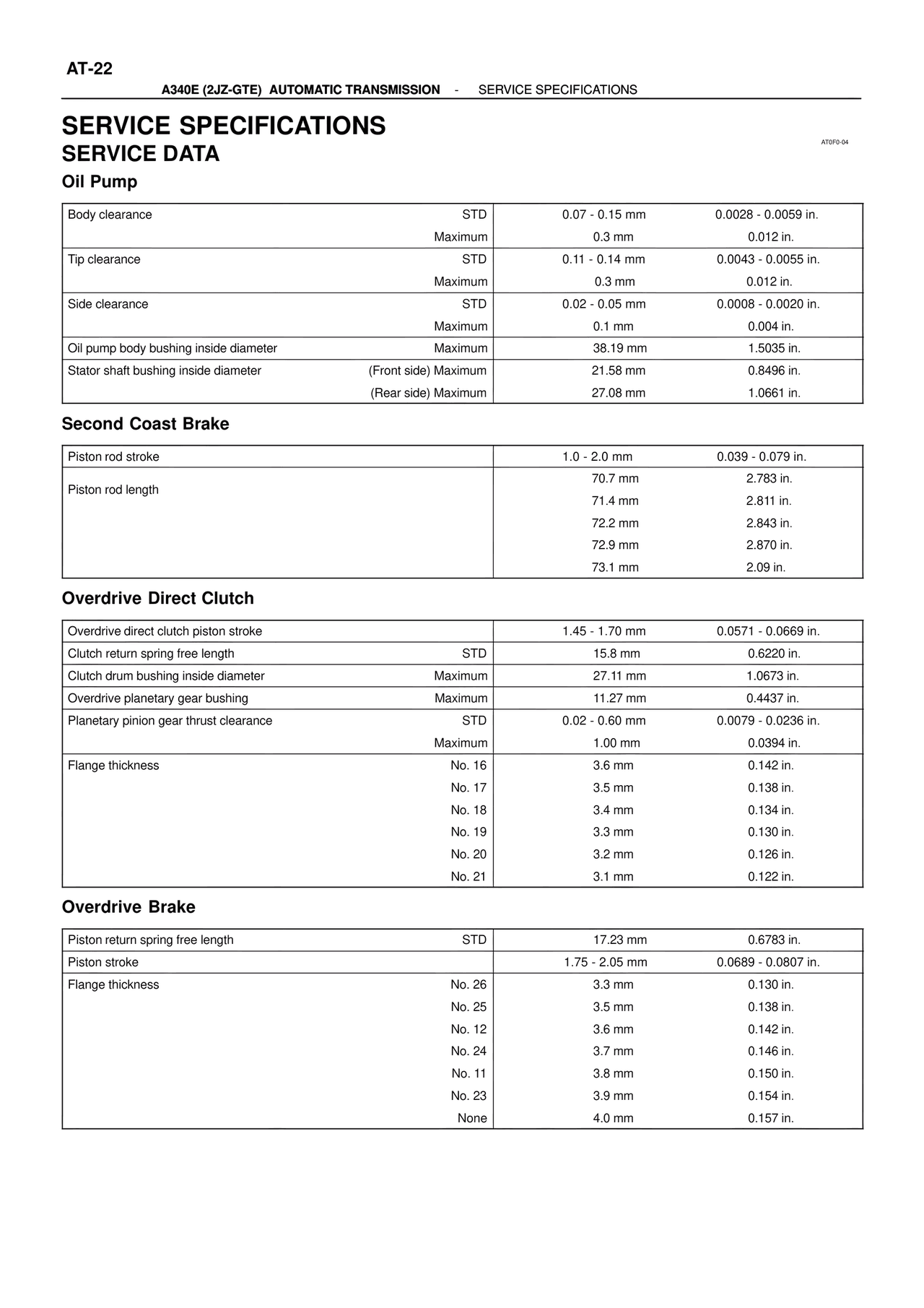

AT-22
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
AT0F0-04
Oil Pump
Body clearance STD 0.07 - 0.15 mm 0.0028 - 0.0059 in.
Maximum 0.3 mm 0.012 in.
Tip clearance STD 0.11 - 0.14 mm 0.0043 - 0.0055 in.
Maximum 0.3 mm 0.012 in.
Side clearance STD 0.02 - 0.05 mm 0.0008 - 0.0020 in.
Maximum 0.1 mm 0.004 in.
Oil pump body bushing inside diameter Maximum 38.19 mm 1.5035 in.
Stator shaft bushing inside diameter (Front side) Maximum 21.58 mm 0.8496 in.
(Rear side) Maximum 27.08 mm 1.0661 in.
Second Coast Brake
Piston rod stroke 1.0 - 2.0 mm 0.039 - 0.079 in.
Piston rod length 70.7 mm 2.783 in.
71.4 mm 2.811 in.
72.2 mm 2.843 in.
72.9 mm 2.870 in.
73.1 mm 2.09 in.
Overdrive Direct Clutch
Overdrive direct clutch piston stroke 1.45 - 1.70 mm 0.0571 - 0.0669 in.
Clutch return spring free length STD 15.8 mm 0.6220 in.
Clutch drum bushing inside diameter Maximum 27.11 mm 1.0673 in.
Overdrive planetary gear bushing Maximum 11.27 mm 0.4437 in.
Planetary pinion gear thrust clearance STD 0.02 - 0.60 mm 0.0079 - 0.0236 in.
Maximum 1.00 mm 0.0394 in.
Flange thickness No. 16 3.6 mm 0.142 in.
No. 17 3.5 mm 0.138 in.
No. 18 3.4 mm 0.134 in.
No. 19 3.3 mm 0.130 in.
No. 20 3.2 mm 0.126 in.
No. 21 3.1 mm 0.122 in.
Overdrive Brake
Piston return spring free length STD 17.23 mm 0.6783 in.
Piston stroke 1.75 - 2.05 mm 0.0689 - 0.0807 in.
Flange thickness No. 26 3.3 mm 0.130 in.
No. 25 3.5 mm 0.138 in.
No. 12 3.6 mm 0.142 in.
No. 24 3.7 mm 0.146 in.
No. 11 3.8 mm 0.150 in.
No. 23 3.9 mm 0.154 in.
None 4.0 mm 0.157 in.
