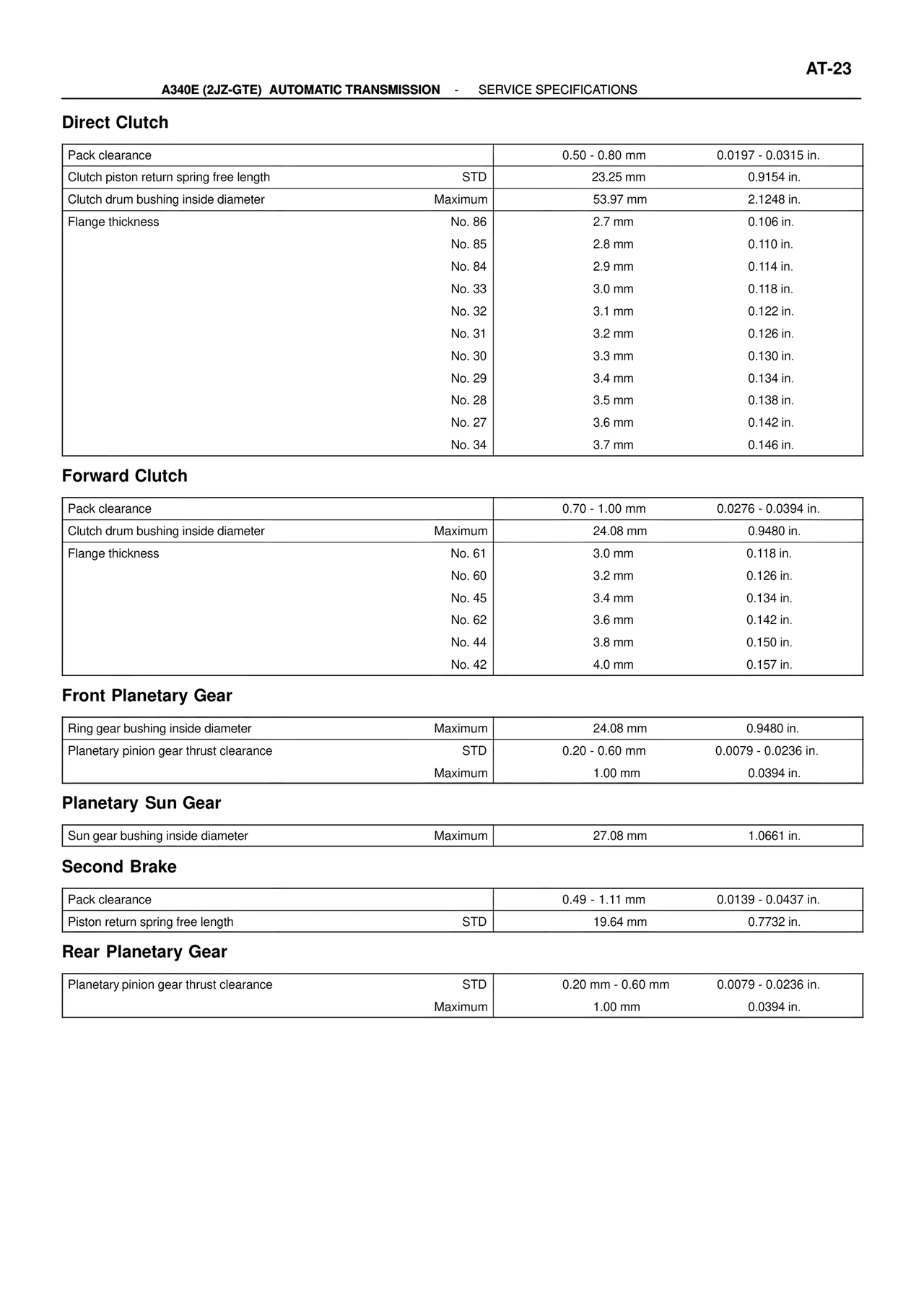

AT-23
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
Direct Clutch
Pack clearance | 0.50 - 0.80 mm | 0.0197 - 0.0315 in.
Clutch piston return spring free length | STD | 23.25 mm | 0.9154 in.
Clutch drum bushing inside diameter | Maximum | 53.97 mm | 2.1248 in.
Flange thickness | No. 86 | 2.7 mm | 0.106 in.
| No. 85 | 2.8 mm | 0.110 in.
| No. 84 | 2.9 mm | 0.114 in.
| No. 33 | 3.0 mm | 0.118 in.
| No. 32 | 3.1 mm | 0.122 in.
| No. 31 | 3.2 mm | 0.126 in.
| No. 30 | 3.3 mm | 0.130 in.
| No. 29 | 3.4 mm | 0.134 in.
| No. 28 | 3.5 mm | 0.138 in.
| No. 27 | 3.6 mm | 0.142 in.
| No. 34 | 3.7 mm | 0.146 in.
Forward Clutch
Pack clearance | 0.70 - 1.00 mm | 0.0276 - 0.0394 in.
Clutch drum bushing inside diameter | Maximum | 24.08 mm | 0.9480 in.
Flange thickness | No. 61 | 3.0 mm | 0.118 in.
| No. 60 | 3.2 mm | 0.126 in.
| No. 45 | 3.4 mm | 0.134 in.
| No. 62 | 3.6 mm | 0.142 in.
| No. 44 | 3.8 mm | 0.150 in.
| No. 42 | 4.0 mm | 0.157 in.
Front Planetary Gear
Ring gear bushing inside diameter | Maximum | 24.08 mm | 0.9480 in.
Planetary pinion gear thrust clearance | STD | 0.20 - 0.60 mm | 0.0079 - 0.0236 in.
| Maximum | 1.00 mm | 0.0394 in.
Planetary Sun Gear
Sun gear bushing inside diameter | Maximum | 27.08 mm | 1.0661 in.
Second Brake
Pack clearance | 0.49 - 1.11 mm | 0.0139 - 0.0437 in.
Piston return spring free length | STD | 19.64 mm | 0.7732 in.
Rear Planetary Gear
Planetary pinion gear thrust clearance | STD | 0.20 mm - 0.60 mm | 0.0079 - 0.0236 in.
| Maximum | 1.00 mm | 0.0394 in.
