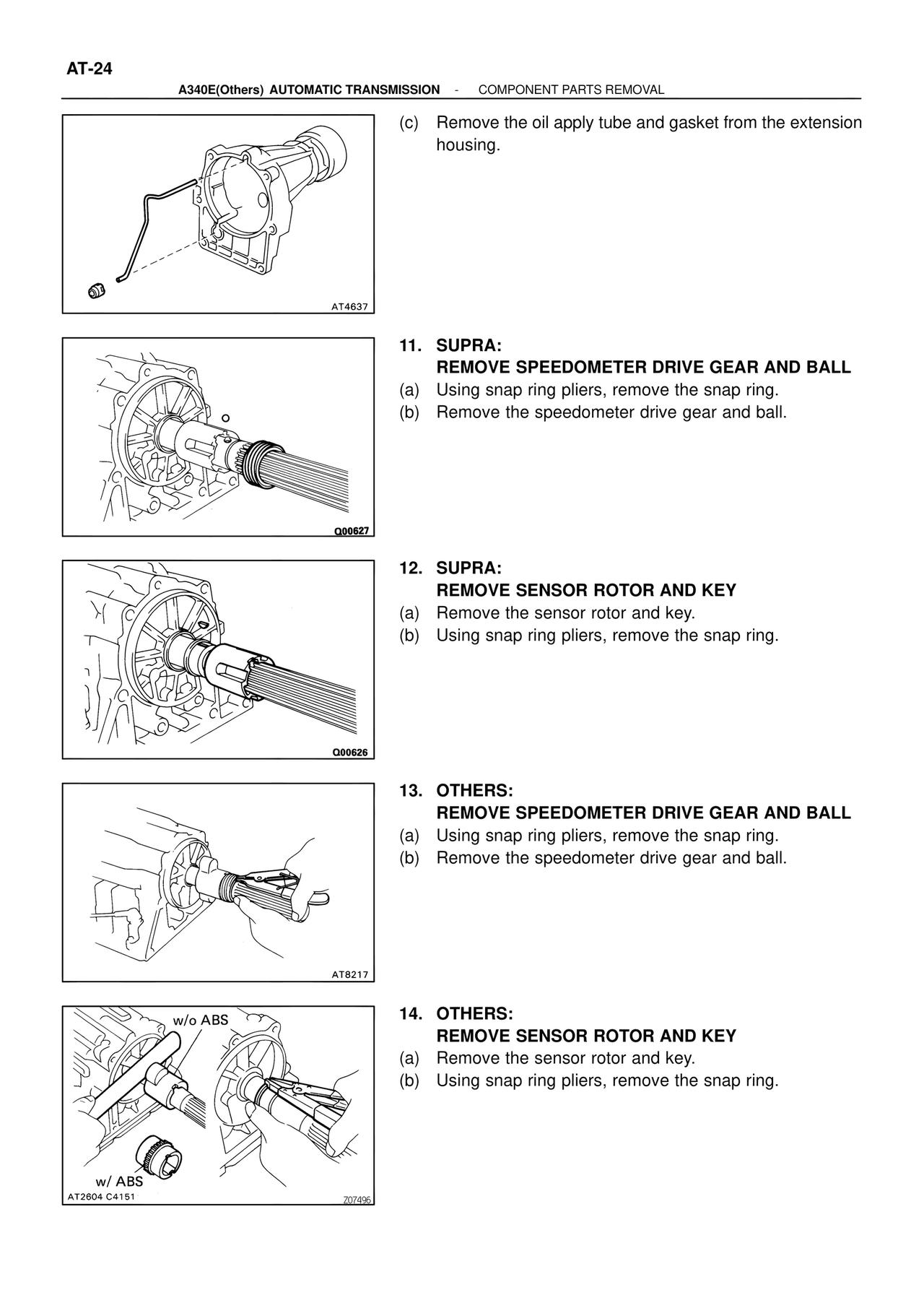

AT-24
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(c) Remove the oil apply tube and gasket from the extension housing.
AT4637
11. SUPRA:
REMOVE SPEEDOMETER DRIVE GEAR AND BALL
(a) Using snap ring pliers, remove the snap ring.
(b) Remove the speedometer drive gear and ball.
Q00627
12. SUPRA:
REMOVE SENSOR ROTOR AND KEY
(a) Remove the sensor rotor and key.
(b) Using snap ring pliers, remove the snap ring.
Q00626
13. OTHERS:
REMOVE SPEEDOMETER DRIVE GEAR AND BALL
(a) Using snap ring pliers, remove the snap ring.
(b) Remove the speedometer drive gear and ball.
AT8217
14. OTHERS:
REMOVE SENSOR ROTOR AND KEY
(a) Remove the sensor rotor and key.
(b) Using snap ring pliers, remove the snap ring.
w/o ABS
w/ ABS
AT2604 C4151
707496
