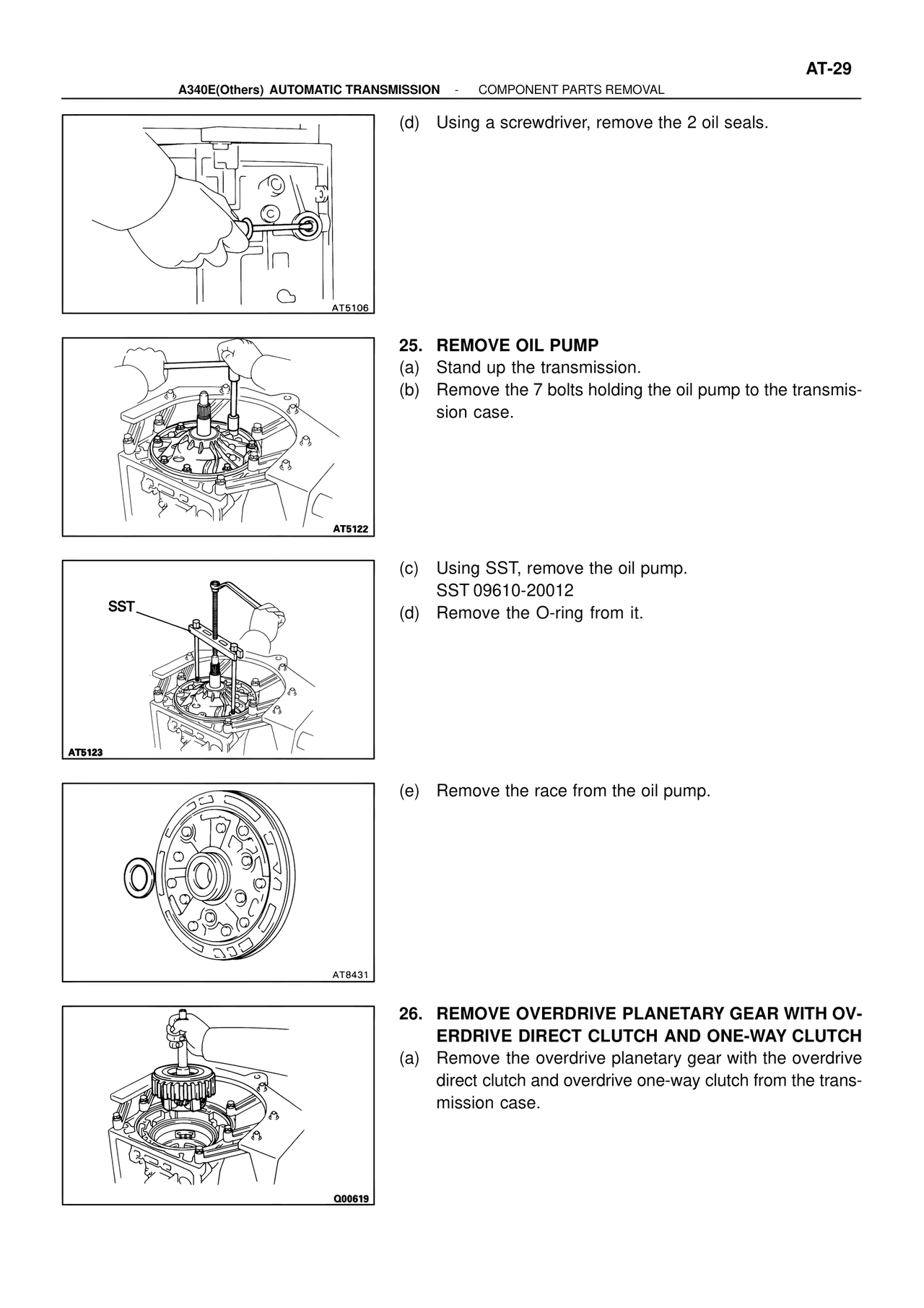

AT-29
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(d) Using a screwdriver, remove the 2 oil seals.
AT5106
25. REMOVE OIL PUMP
(a) Stand up the transmission.
(b) Remove the 7 bolts holding the oil pump to the transmission case.
AT5122
(c) Using SST, remove the oil pump.
SST 09610-20012
(d) Remove the O-ring from it.
SST
AT5123
(e) Remove the race from the oil pump.
AT8431
26. REMOVE OVERDRIVE PLANETARY GEAR WITH OVERDRIVE DIRECT CLUTCH AND ONE-WAY CLUTCH
(a) Remove the overdrive planetary gear with the overdrive direct clutch and overdrive one-way clutch from the transmission case.
Q00619
