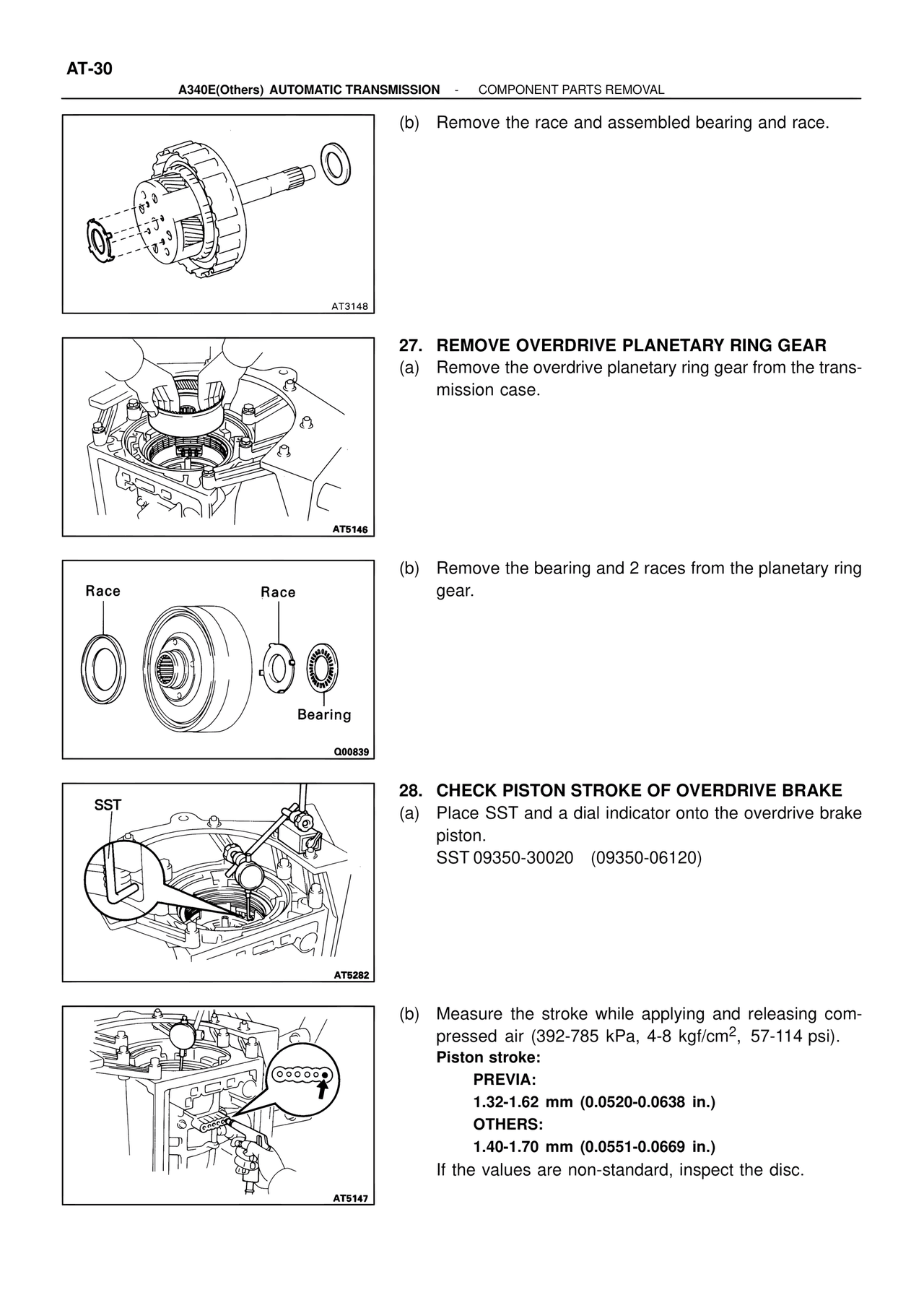

AT-30
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(b) Remove the race and assembled bearing and race.
AT314B
27. REMOVE OVERDRIVE PLANETARY RING GEAR
(a) Remove the overdrive planetary ring gear from the trans-
mission case.
AT5146
Race Race
Bearing
Q00839
(b) Remove the bearing and 2 races from the planetary ring
gear.
28. CHECK PISTON STROKE OF OVERDRIVE BRAKE
(a) Place SST and a dial indicator onto the overdrive brake
piston.
SST 09350-30020 (09350-06120)
SST
AT5282
(b) Measure the stroke while applying and releasing com-
pressed air (392-785 kPa, 4-8 kgf/cm², 57-114 psi).
Piston stroke:
PREVIA:
1.32-1.62 mm (0.0520-0.0638 in.)
OTHERS:
1.40-1.70 mm (0.0551-0.0669 in.)
If the values are non-standard, inspect the disc.
AT5147
