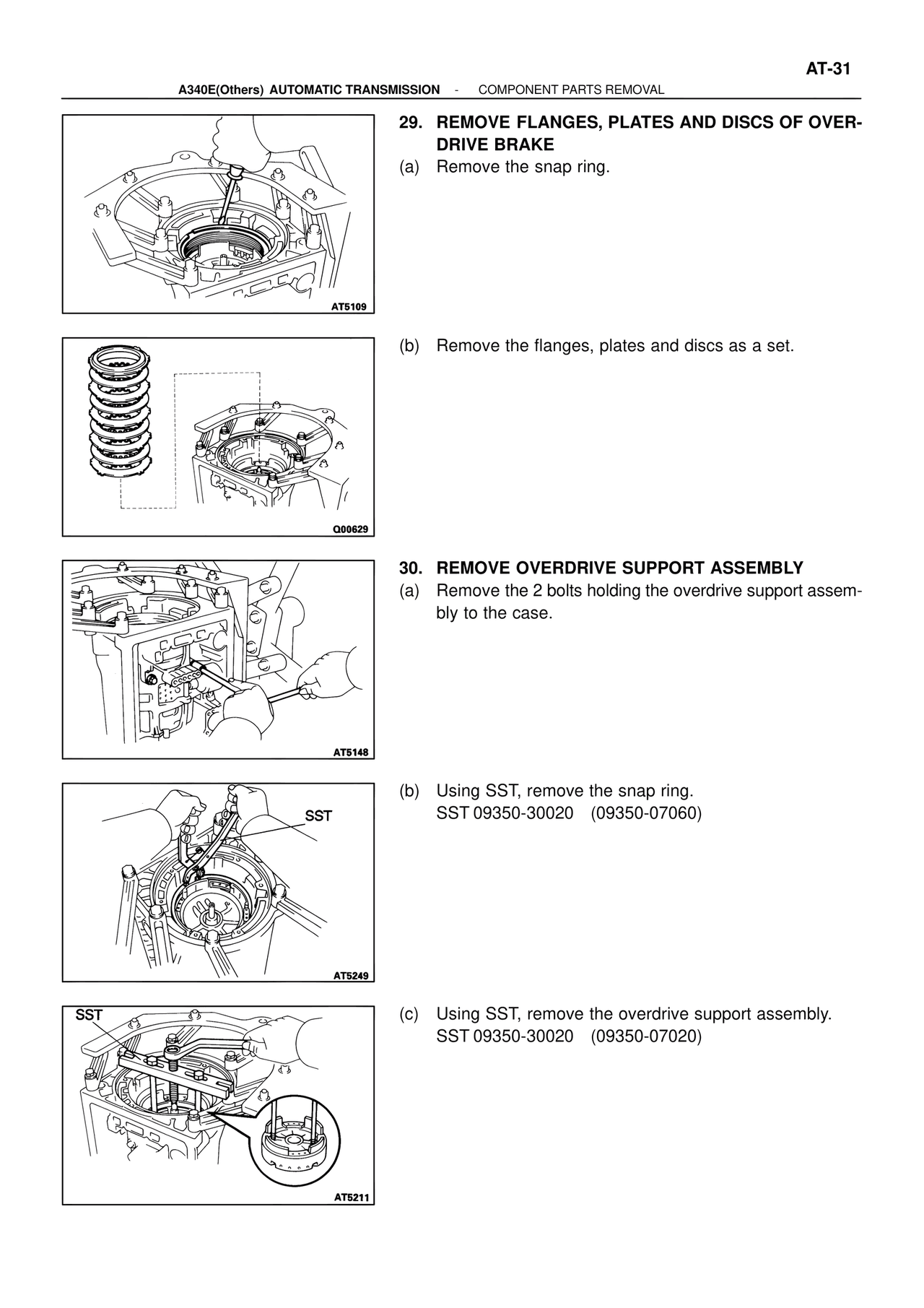

ATR/ATM Unit Repair — Remove Flanges, Plates and Discs of Over-Drive Brake, page 177

AT-31

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL

29. REMOVE FLANGES, PLATES AND DISCS OF OVER-
DRIVE BRAKE
(a) Remove the snap ring.

AT5109

(b) Remove the flanges, plates and discs as a set.

Q00629

30. REMOVE OVERDRIVE SUPPORT ASSEMBLY
(a) Remove the 2 bolts holding the overdrive support assem-
bly to the case.

AT5148

(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)

SST

AT5249

(c) Using SST, remove the overdrive support assembly.
SST 09350-30020 (09350-07020)

SST

AT5211
