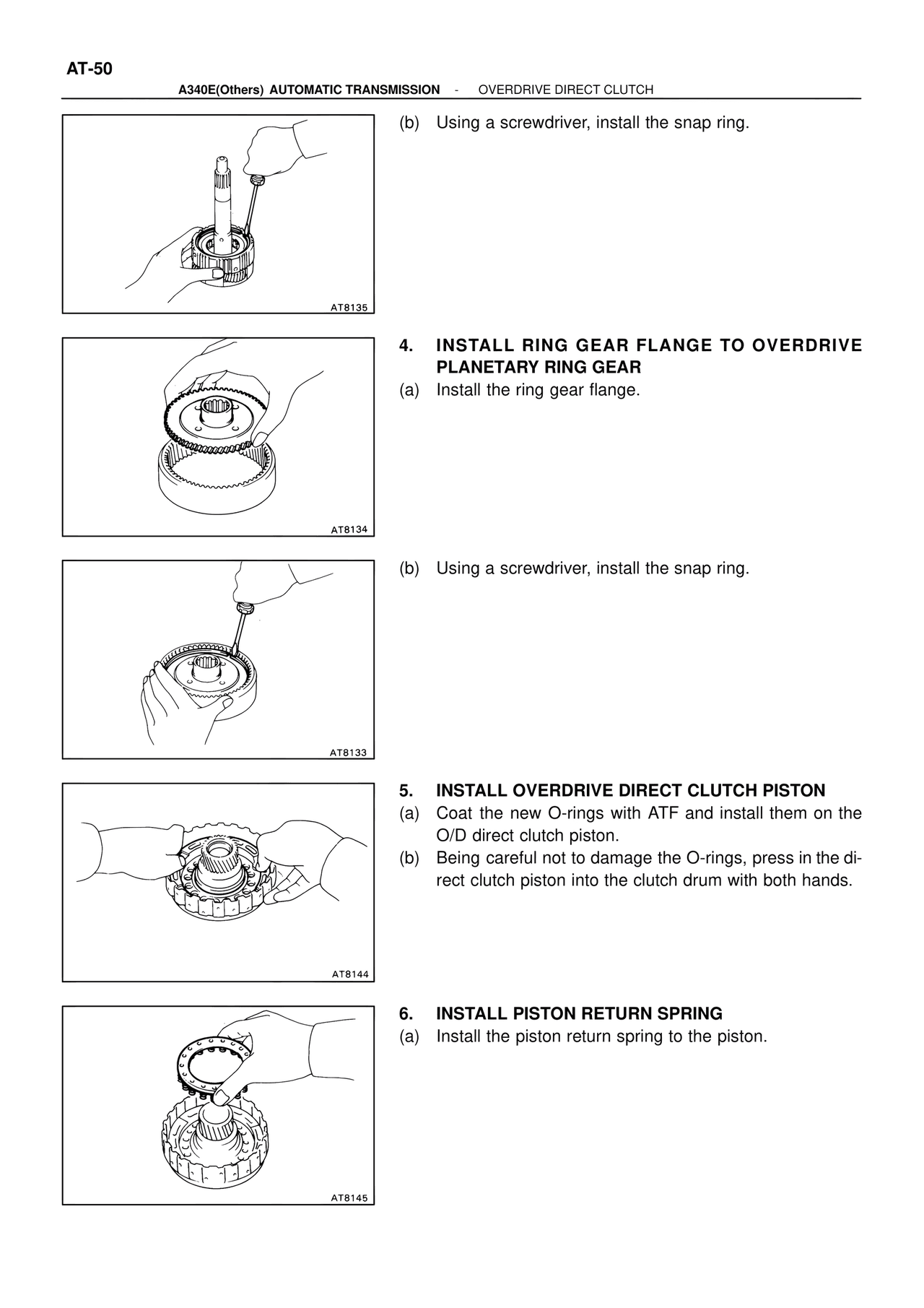

AT-50
A340E(Others) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
(b) Using a screwdriver, install the snap ring.
AT8135
4. INSTALL RING GEAR FLANGE TO OVERDRIVE PLANETARY RING GEAR
(a) Install the ring gear flange.
AT8134
(b) Using a screwdriver, install the snap ring.
AT8133
5. INSTALL OVERDRIVE DIRECT CLUTCH PISTON
(a) Coat the new O-rings with ATF and install them on the O/D direct clutch piston.
(b) Being careful not to damage the O-rings, press in the direct clutch piston into the clutch drum with both hands.
AT8144
6. INSTALL PISTON RETURN SPRING
(a) Install the piston return spring to the piston.
AT8145
