AT-51

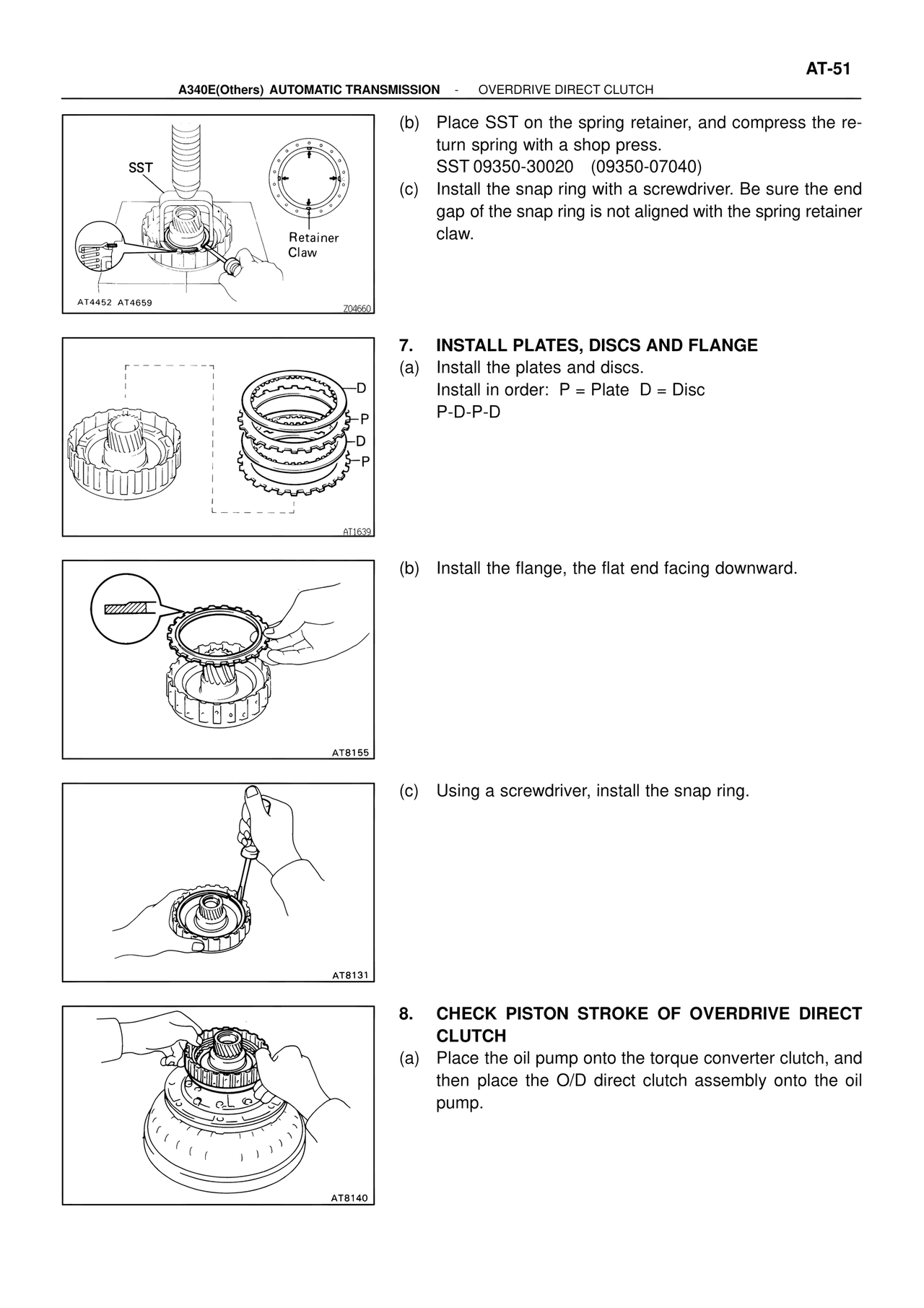

A340E(Others) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
SST
Retainer
Claw
AT4452 AT4659
Z04669
(b) Place SST on the spring retainer, and compress the re-
turn spring with a shop press.
SST 09350-30020 (09350-07040)
(c) Install the snap ring with a screwdriver. Be sure the end
gap of the snap ring is not aligned with the spring retainer
claw.
D
P
D
P
AT1629
7. INSTALL PLATES, DISCS AND FLANGE
(a) Install the plates and discs.
Install in order: P = Plate D = Disc
P-D-P-D
AT8155
(b) Install the flange, the flat end facing downward.
AT8131
(c) Using a screwdriver, install the snap ring.
AT8140
8. CHECK PISTON STROKE OF OVERDRIVE DIRECT
CLUTCH
(a) Place the oil pump onto the torque converter clutch, and
then place the O/D direct clutch assembly onto the oil
pump.
