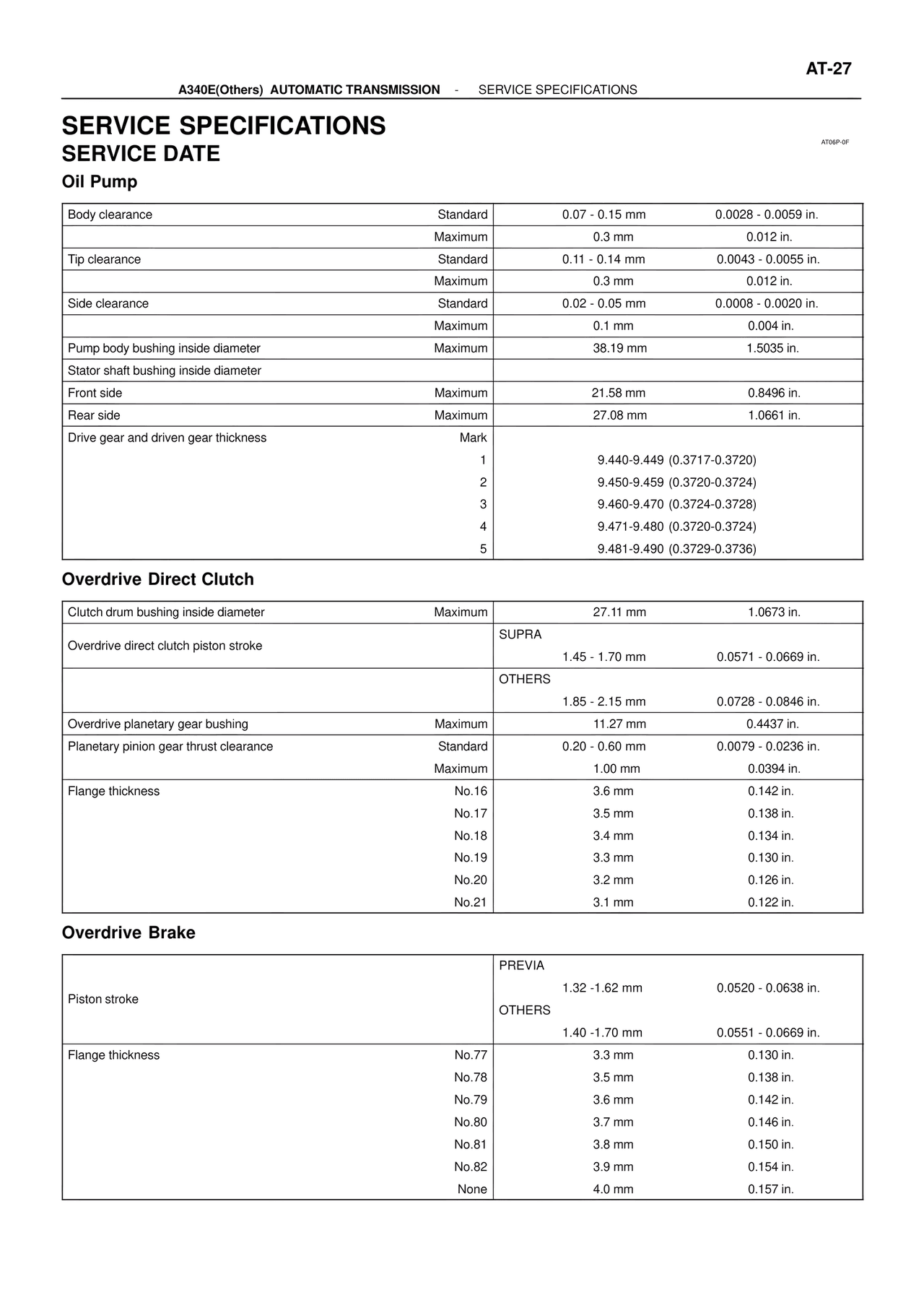

AT-27
A340E(Others) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATE
AT06P-0F
Oil Pump
Body clearance
Standard 0.07 - 0.15 mm 0.0028 - 0.0059 in.
Maximum 0.3 mm 0.012 in.
Tip clearance
Standard 0.11 - 0.14 mm 0.0043 - 0.0055 in.
Maximum 0.3 mm 0.012 in.
Side clearance
Standard 0.02 - 0.05 mm 0.0008 - 0.0020 in.
Maximum 0.1 mm 0.004 in.
Pump body bushing inside diameter
Maximum 38.19 mm 1.5035 in.
Stator shaft bushing inside diameter
Front side
Maximum 21.58 mm 0.8496 in.
Rear side
Maximum 27.08 mm 1.0661 in.
Drive gear and driven gear thickness
Mark
1 9.440-9.449 (0.3717-0.3720)
2 9.450-9.459 (0.3720-0.3724)
3 9.460-9.470 (0.3724-0.3728)
4 9.471-9.480 (0.3720-0.3724)
5 9.481-9.490 (0.3729-0.3736)
Overdrive Direct Clutch
Clutch drum bushing inside diameter
Maximum 27.11 mm 1.0673 in.
Overdrive direct clutch piston stroke
SUPRA
1.45 - 1.70 mm 0.0571 - 0.0669 in.
OTHERS
1.85 - 2.15 mm 0.0728 - 0.0846 in.
Overdrive planetary gear bushing
Maximum 11.27 mm 0.4437 in.
Planetary pinion gear thrust clearance
Standard 0.20 - 0.60 mm 0.0079 - 0.0236 in.
Maximum 1.00 mm 0.0394 in.
Flange thickness
No.16 3.6 mm 0.142 in.
No.17 3.5 mm 0.138 in.
No.18 3.4 mm 0.134 in.
No.19 3.3 mm 0.130 in.
No.20 3.2 mm 0.126 in.
No.21 3.1 mm 0.122 in.
Overdrive Brake
Piston stroke
PREVIA
1.32 -1.62 mm 0.0520 - 0.0638 in.
OTHERS
1.40 -1.70 mm 0.0551 - 0.0669 in.
Flange thickness
No.77 3.3 mm 0.130 in.
No.78 3.5 mm 0.138 in.
No.79 3.6 mm 0.142 in.
No.80 3.7 mm 0.146 in.
No.81 3.8 mm 0.150 in.
No.82 3.9 mm 0.154 in.
None 4.0 mm 0.157 in.
