AT-84

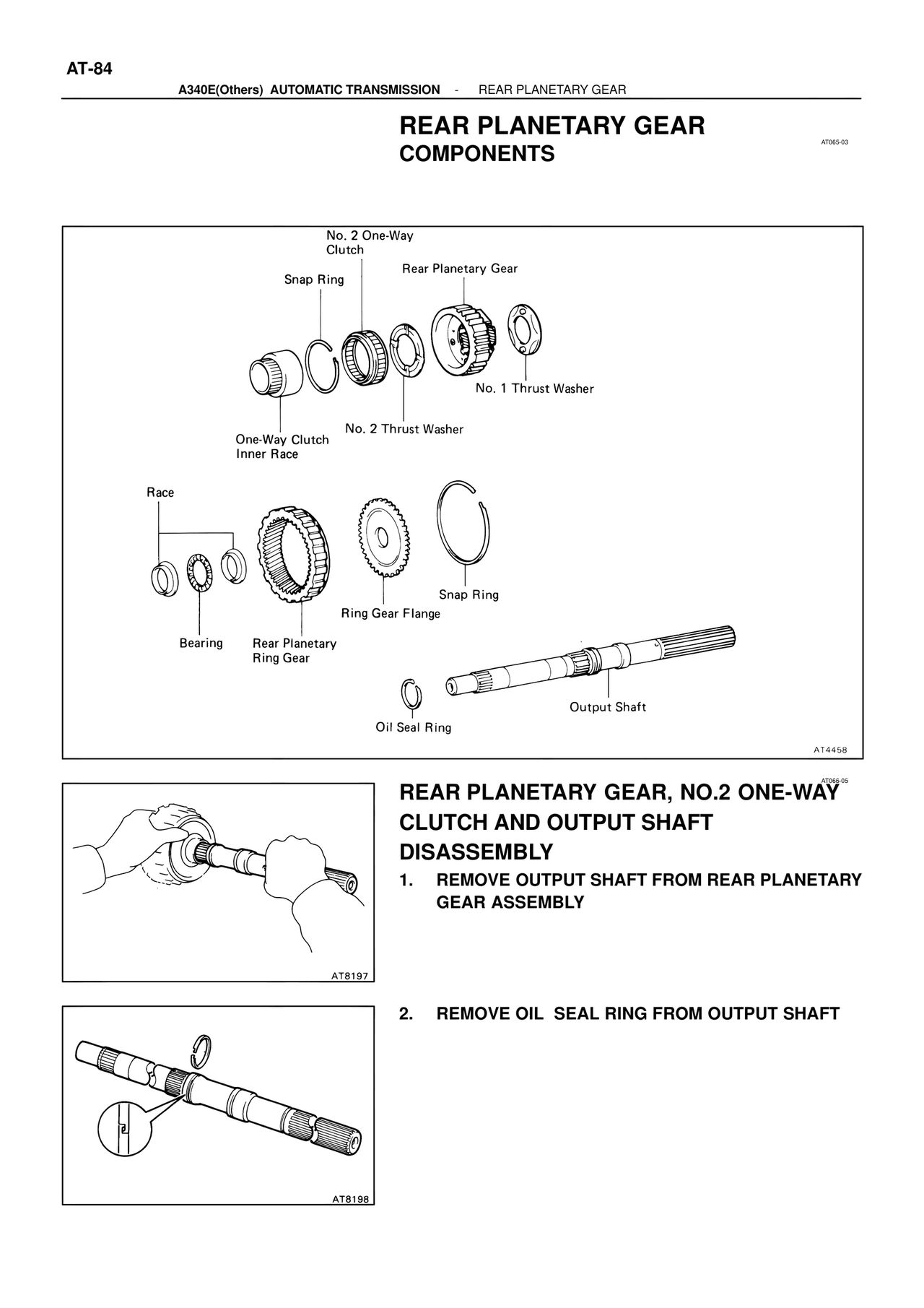

A340E(Others) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR
REAR PLANETARY GEAR COMPONENTS
AT065-03
No. 2 One-Way
Clutch
Rear Planetary Gear
Snap Ring
No. 1 Thrust Washer
No. 2 Thrust Washer
One-Way Clutch
Inner Race
Race
Snap Ring
Ring Gear Flange
Bearing
Rear Planetary
Ring Gear
Output Shaft
Oil Seal Ring
AT4458
AT066-05
REAR PLANETARY GEAR, NO.2 ONE-WAY CLUTCH AND OUTPUT SHAFT DISASSEMBLY
1. REMOVE OUTPUT SHAFT FROM REAR PLANETARY GEAR ASSEMBLY
AT8197
2. REMOVE OIL SEAL RING FROM OUTPUT SHAFT
AT8198
