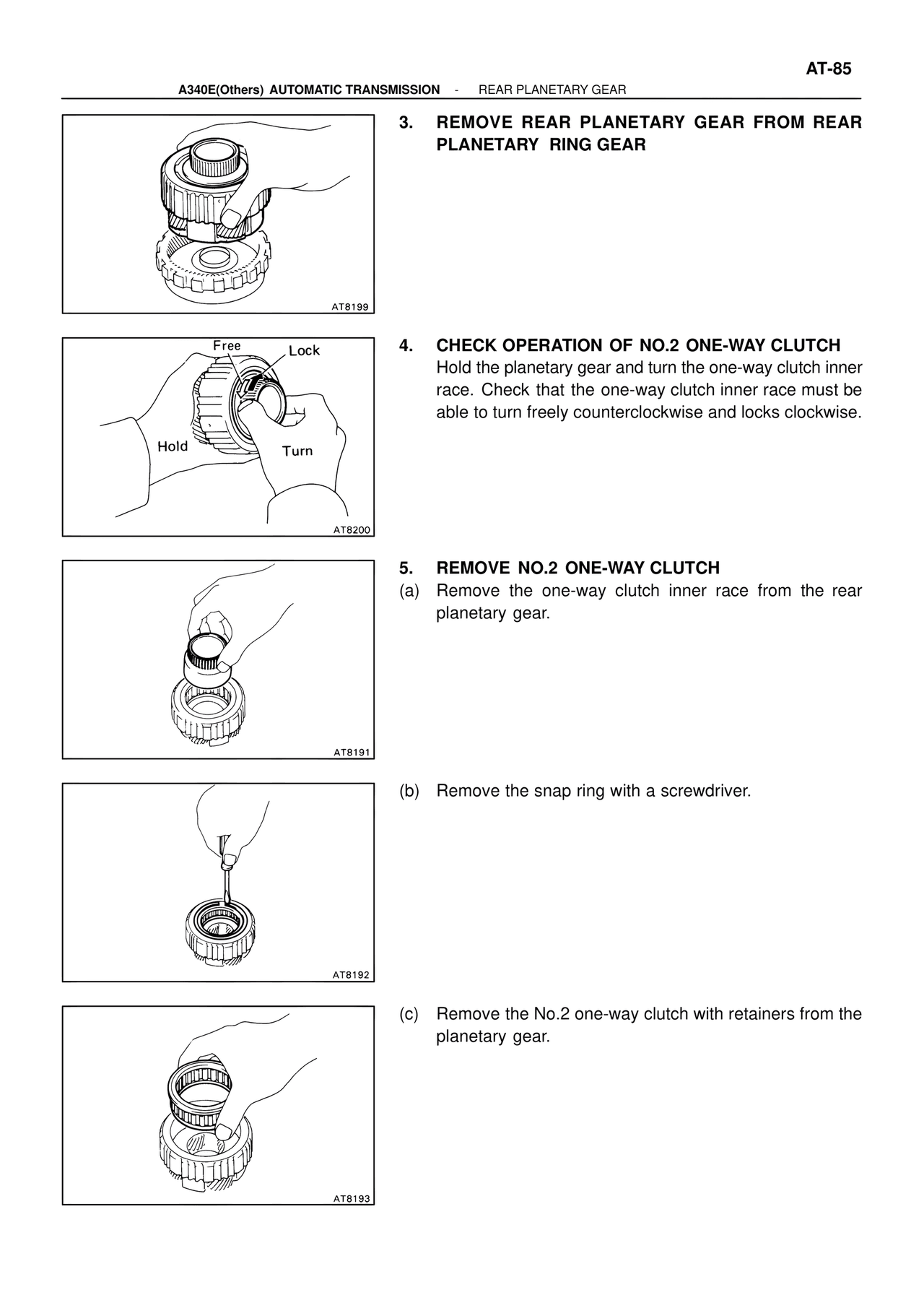

AT-85
A340E(Others) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR
3. REMOVE REAR PLANETARY GEAR FROM REAR PLANETARY RING GEAR
AT8199
Free Lock
Hold Turn
4. CHECK OPERATION OF NO.2 ONE-WAY CLUTCH
Hold the planetary gear and turn the one-way clutch inner race. Check that the one-way clutch inner race must be able to turn freely counterclockwise and locks clockwise.
AT8200
5. REMOVE NO.2 ONE-WAY CLUTCH
(a) Remove the one-way clutch inner race from the rear planetary gear.
AT8191
(b) Remove the snap ring with a screwdriver.
AT8192
(c) Remove the No.2 one-way clutch with retainers from the planetary gear.
AT8193
