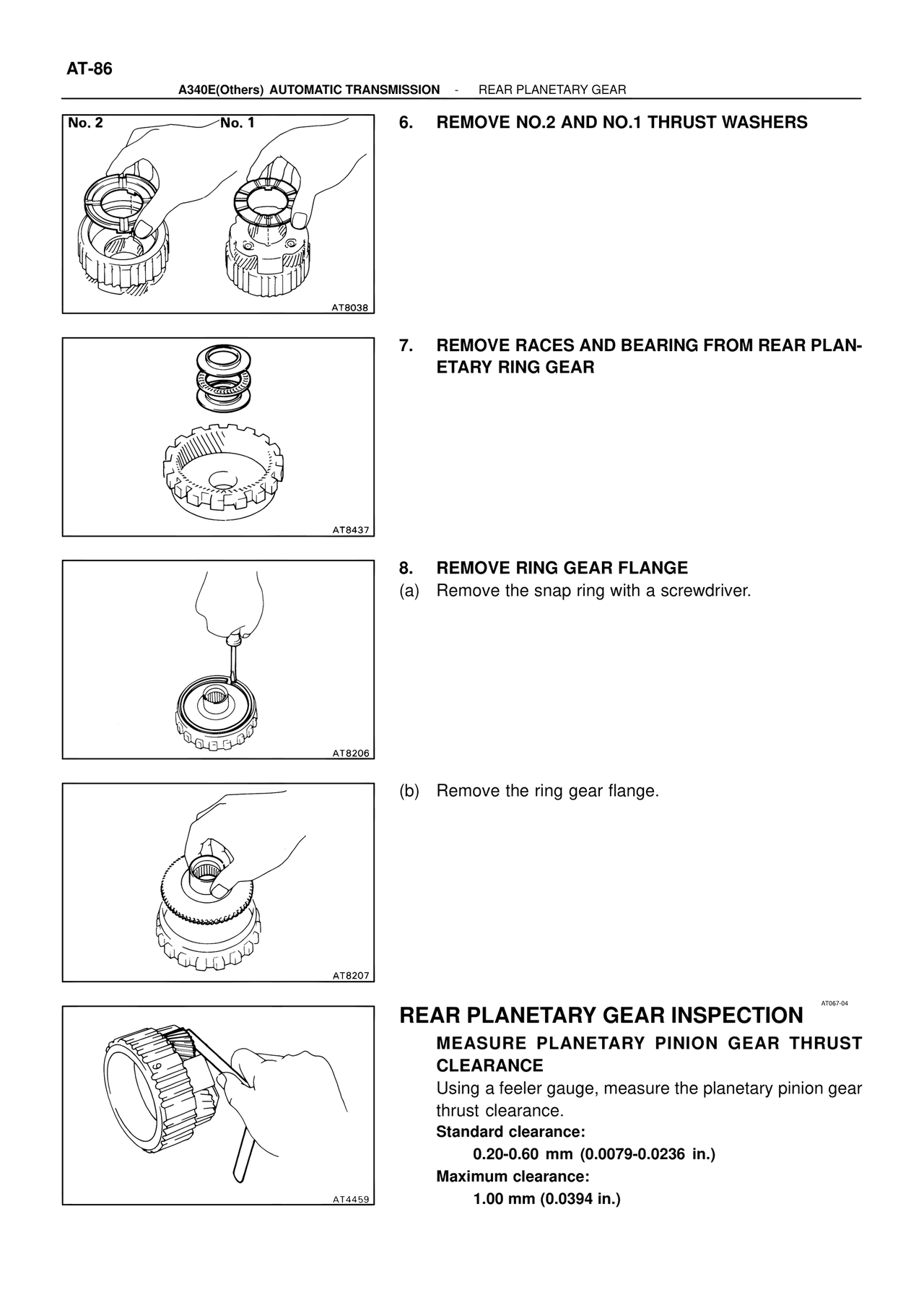

AT-86
A340E(Others) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR
No. 2 No. 1
AT8038
6. REMOVE NO.2 AND NO.1 THRUST WASHERS
AT8437
7. REMOVE RACES AND BEARING FROM REAR PLANETARY RING GEAR
AT8206
8. REMOVE RING GEAR FLANGE
(a) Remove the snap ring with a screwdriver.
AT8207
(b) Remove the ring gear flange.
AT4459
AT067-04
REAR PLANETARY GEAR INSPECTION
MEASURE PLANETARY PINION GEAR THRUST CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust clearance.
Standard clearance:
0.20-0.60 mm (0.0079-0.0236 in.)
Maximum clearance:
1.00 mm (0.0394 in.)
