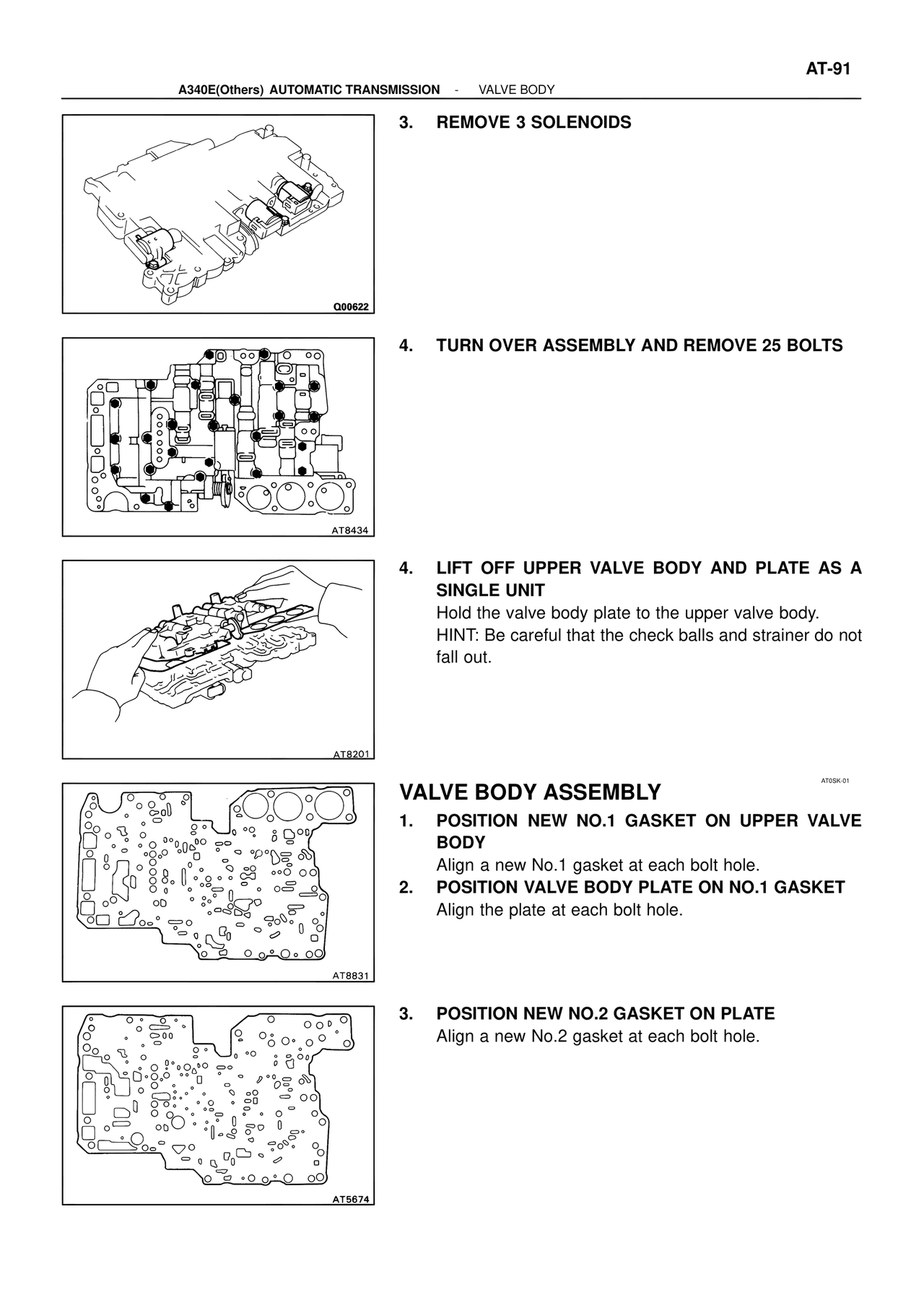

A340E(Others) AUTOMATIC TRANSMISSION - VALVE BODY

3. REMOVE 3 SOLENOIDS

Q00622

4. TURN OVER ASSEMBLY AND REMOVE 25 BOLTS

AT8434

4. LIFT OFF UPPER VALVE BODY AND PLATE AS A SINGLE UNIT
Hold the valve body plate to the upper valve body.
HINT: Be careful that the check balls and strainer do not fall out.

AT8201

AT0SK-01

VALVE BODY ASSEMBLY

1. POSITION NEW NO.1 GASKET ON UPPER VALVE BODY
Align a new No.1 gasket at each bolt hole.
2. POSITION VALVE BODY PLATE ON NO.1 GASKET
Align the plate at each bolt hole.

AT8831

3. POSITION NEW NO.2 GASKET ON PLATE
Align a new No.2 gasket at each bolt hole.

AT5674
