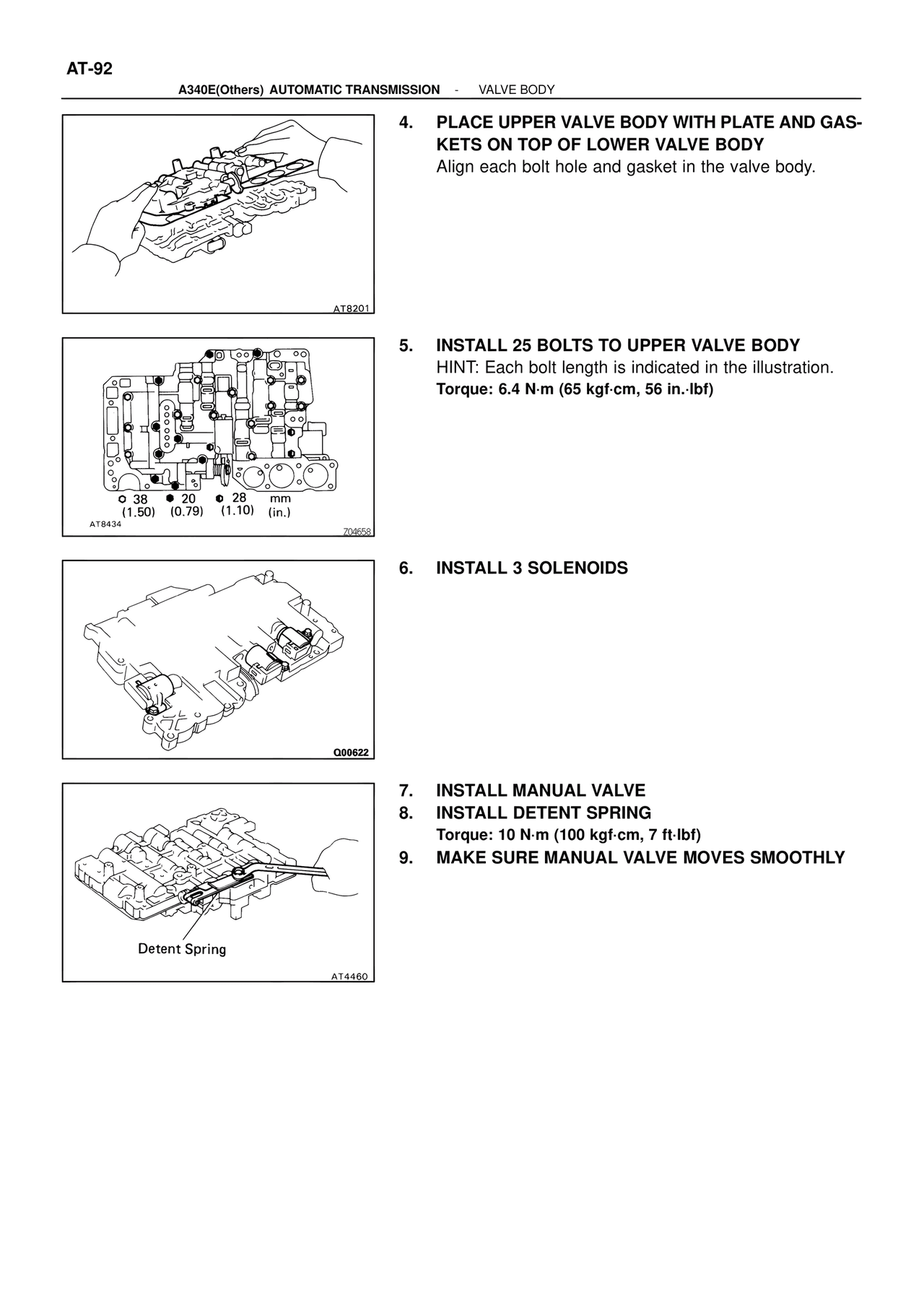

A340E(Others) AUTOMATIC TRANSMISSION - VALVE BODY
4. PLACE UPPER VALVE BODY WITH PLATE AND GAS-
KETS ON TOP OF LOWER VALVE BODY
Align each bolt hole and gasket in the valve body.
AT8201
5. INSTALL 25 BOLTS TO UPPER VALVE BODY
HINT: Each bolt length is indicated in the illustration.
Torque: 6.4 N·m (65 kgf·cm, 56 in.·lbf)
o 38 • 20 • 28 mm
(1.50) (0.79) (1.10) (in.)
AT8434
Z04558
6. INSTALL 3 SOLENOIDS
Q00622
7. INSTALL MANUAL VALVE
8. INSTALL DETENT SPRING
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
9. MAKE SURE MANUAL VALVE MOVES SMOOTHLY
Detent Spring
AT4460
