AT-93
A340E(Others) AUTOMATIC TRANSMISSION - UPPER VALVE BODY

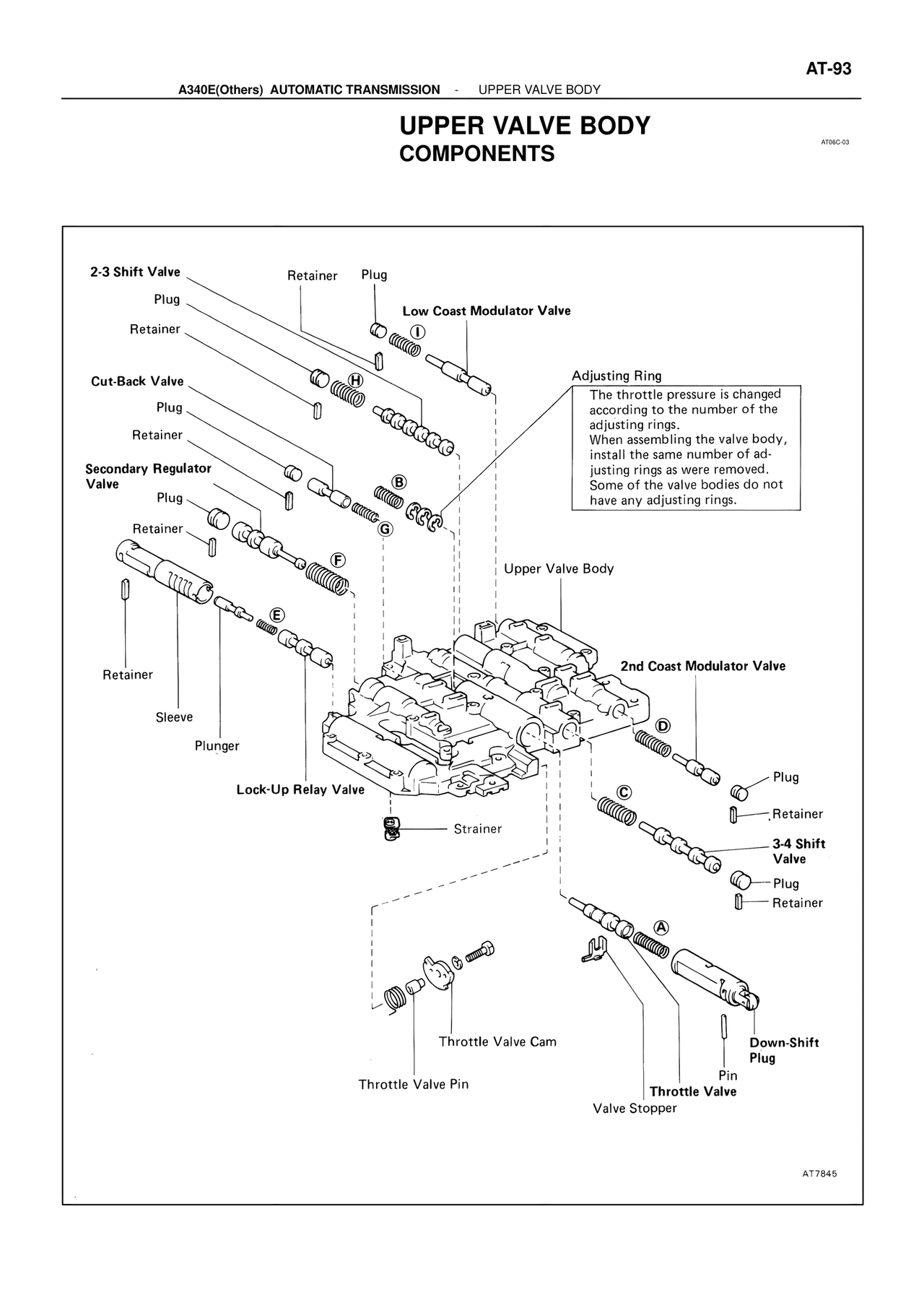

UPPER VALVE BODY
COMPONENTS
AT06C-03
2-3 Shift Valve
Plug
Retainer
Retainer Plug
Low Coast Modulator Valve
Cut-Back Valve
Plug
Retainer
Adjusting Ring
The throttle pressure is changed
according to the number of the
adjusting rings.
When assembling the valve body,
install the same number of ad-
justing rings as were removed.
Some of the valve bodies do not
have any adjusting rings.
Secondary Regulator
Valve
Plug
Retainer
Upper Valve Body
2nd Coast Modulator Valve
Retainer
Sleeve
Plunger
Lock-Up Relay Valve
Plug
Retainer
3-4 Shift
Valve
Plug
Retainer
Strainer
Throttle Valve Cam
Throttle Valve Pin
Down-Shift
Plug
Pin
Throttle Valve
Valve Stopper
AT7845
