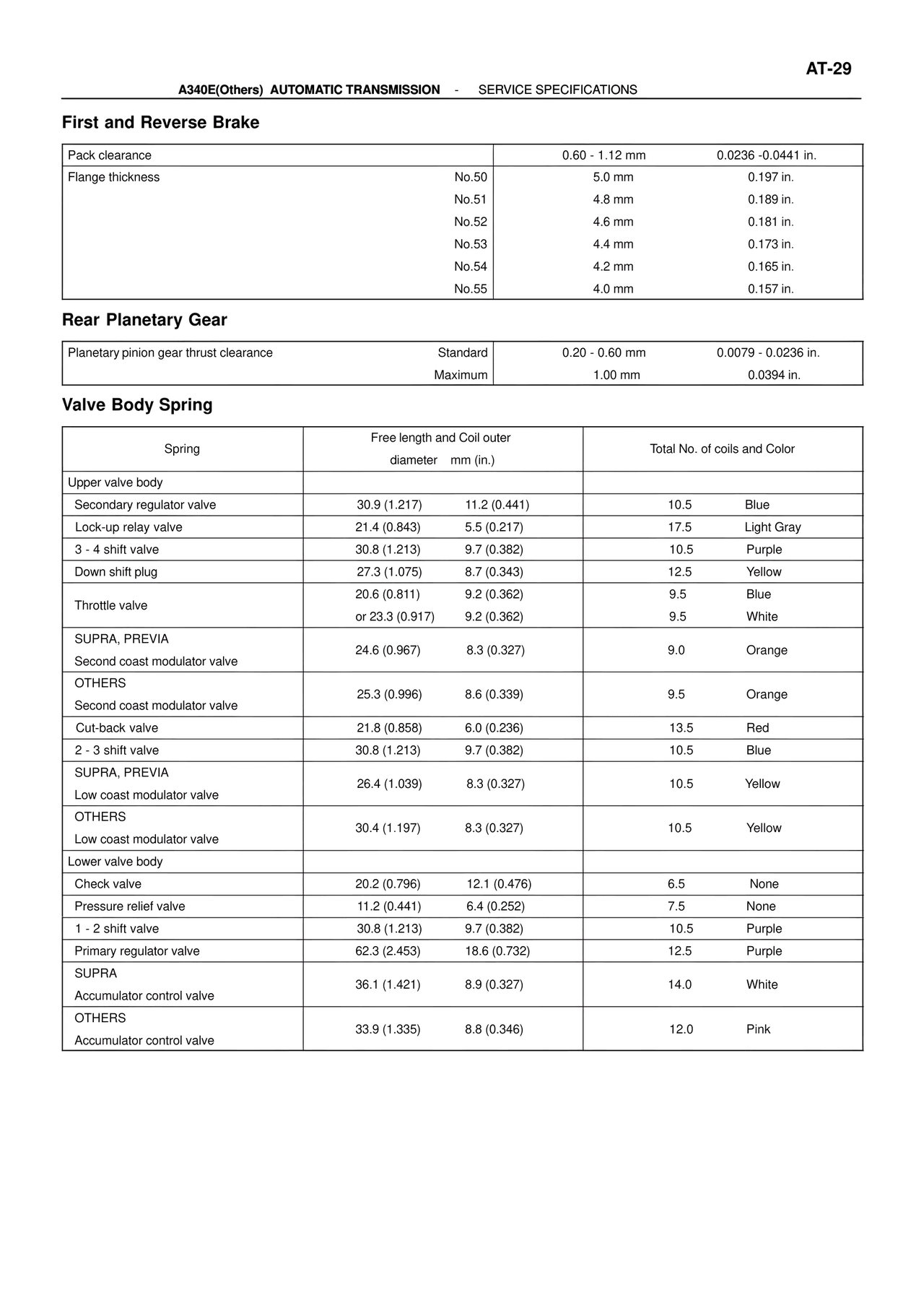

AT-29
A340E(Others) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
First and Reverse Brake
Pack clearance 0.60 - 1.12 mm 0.0236 -0.0441 in.
Flange thickness No.50 5.0 mm 0.197 in.
No.51 4.8 mm 0.189 in.
No.52 4.6 mm 0.181 in.
No.53 4.4 mm 0.173 in.
No.54 4.2 mm 0.165 in.
No.55 4.0 mm 0.157 in.
Rear Planetary Gear
Planetary pinion gear thrust clearance Standard 0.20 - 0.60 mm 0.0079 - 0.0236 in.
Maximum 1.00 mm 0.0394 in.
Valve Body Spring
Spring Free length and Coil outer diameter mm (in.) Total No. of coils and Color
Upper valve body
Secondary regulator valve 30.9 (1.217) 11.2 (0.441) 10.5 Blue
Lock-up relay valve 21.4 (0.843) 5.5 (0.217) 17.5 Light Gray
3 - 4 shift valve 30.8 (1.213) 9.7 (0.382) 10.5 Purple
Down shift plug 27.3 (1.075) 8.7 (0.343) 12.5 Yellow
Throttle valve 20.6 (0.811) 9.2 (0.362) 9.5 Blue
or 23.3 (0.917) 9.2 (0.362) 9.5 White
SUPRA, PREVIA
Second coast modulator valve 24.6 (0.967) 8.3 (0.327) 9.0 Orange
OTHERS
Second coast modulator valve 25.3 (0.996) 8.6 (0.339) 9.5 Orange
Cut-back valve 21.8 (0.858) 6.0 (0.236) 13.5 Red
2 - 3 shift valve 30.8 (1.213) 9.7 (0.382) 10.5 Blue
SUPRA, PREVIA
Low coast modulator valve 26.4 (1.039) 8.3 (0.327) 10.5 Yellow
OTHERS
Low coast modulator valve 30.4 (1.197) 8.3 (0.327) 10.5 Yellow
Lower valve body
Check valve 20.2 (0.796) 12.1 (0.476) 6.5 None
Pressure relief valve 11.2 (0.441) 6.4 (0.252) 7.5 None
1 - 2 shift valve 30.8 (1.213) 9.7 (0.382) 10.5 Purple
Primary regulator valve 62.3 (2.453) 18.6 (0.732) 12.5 Purple
SUPRA
Accumulator control valve 36.1 (1.421) 8.9 (0.327) 14.0 White
OTHERS
Accumulator control valve 33.9 (1.335) 8.8 (0.346) 12.0 Pink
