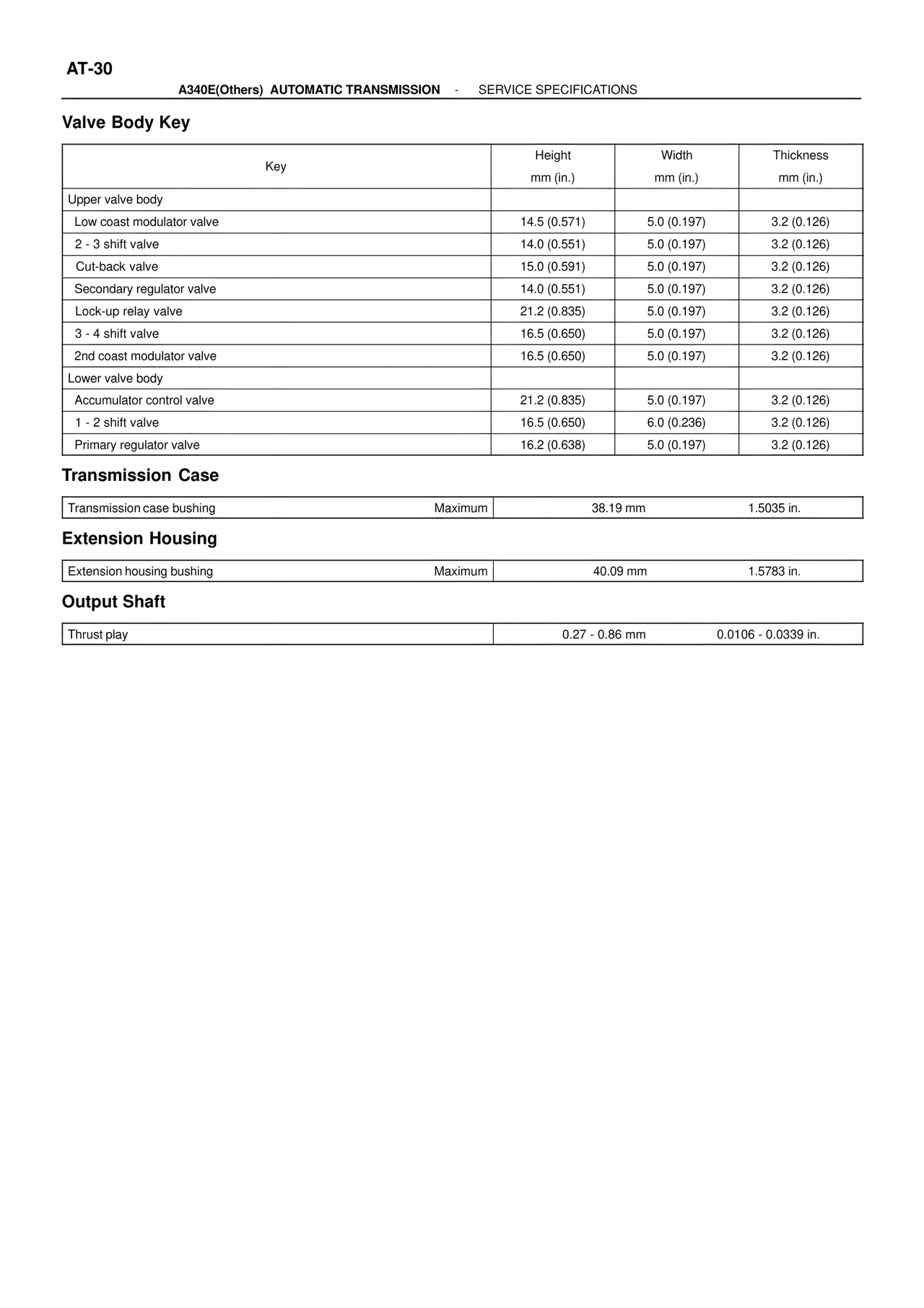

AT-30
A340E(Others) AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
Valve Body Key
Key | Height mm (in.) | Width mm (in.) | Thickness mm (in.)
Upper valve body
Low coast modulator valve | 14.5 (0.571) | 5.0 (0.197) | 3.2 (0.126)
2 - 3 shift valve | 14.0 (0.551) | 5.0 (0.197) | 3.2 (0.126)
Cut-back valve | 15.0 (0.591) | 5.0 (0.197) | 3.2 (0.126)
Secondary regulator valve | 14.0 (0.551) | 5.0 (0.197) | 3.2 (0.126)
Lock-up relay valve | 21.2 (0.835) | 5.0 (0.197) | 3.2 (0.126)
3 - 4 shift valve | 16.5 (0.650) | 5.0 (0.197) | 3.2 (0.126)
2nd coast modulator valve | 16.5 (0.650) | 5.0 (0.197) | 3.2 (0.126)
Lower valve body
Accumulator control valve | 21.2 (0.835) | 5.0 (0.197) | 3.2 (0.126)
1 - 2 shift valve | 16.5 (0.650) | 6.0 (0.236) | 3.2 (0.126)
Primary regulator valve | 16.2 (0.638) | 5.0 (0.197) | 3.2 (0.126)
Transmission Case
Transmission case bushing | Maximum | 38.19 mm | 1.5035 in.
Extension Housing
Extension housing bushing | Maximum | 40.09 mm | 1.5783 in.
Output Shaft
Thrust play | 0.27 - 0.86 mm | 0.0106 - 0.0339 in.
