AT-102
A340E(Others) AUTOMATIC TRANSMISSION - TRANSMISSION CASE
TRANSMISSION CASE
TRANSMISSION CASE INSPECTION
AT06J-06

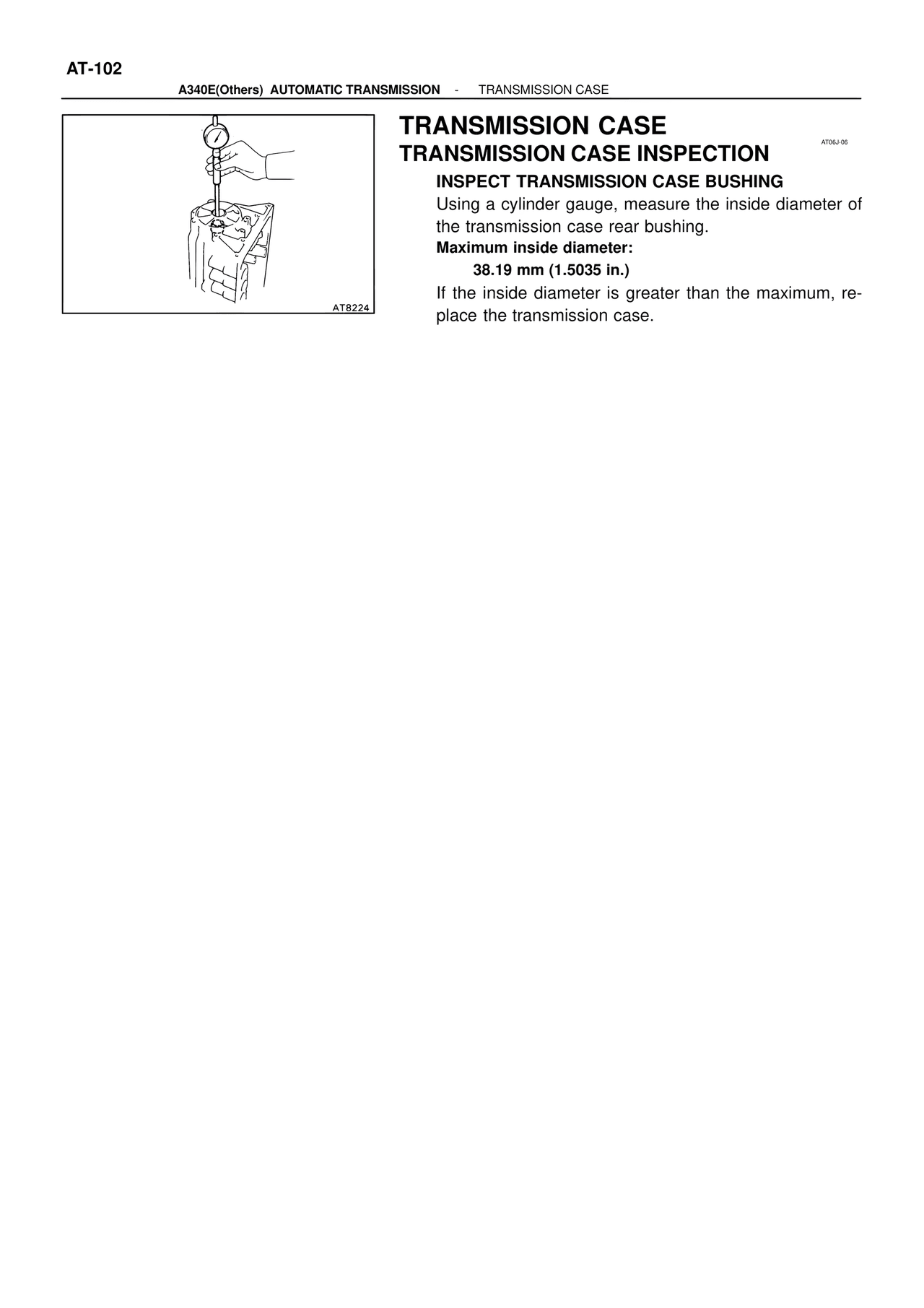

INSPECT TRANSMISSION CASE BUSHING
Using a cylinder gauge, measure the inside diameter of
the transmission case rear bushing.
Maximum inside diameter:
38.19 mm (1.5035 in.)
If the inside diameter is greater than the maximum, re-
place the transmission case.
AT8224
